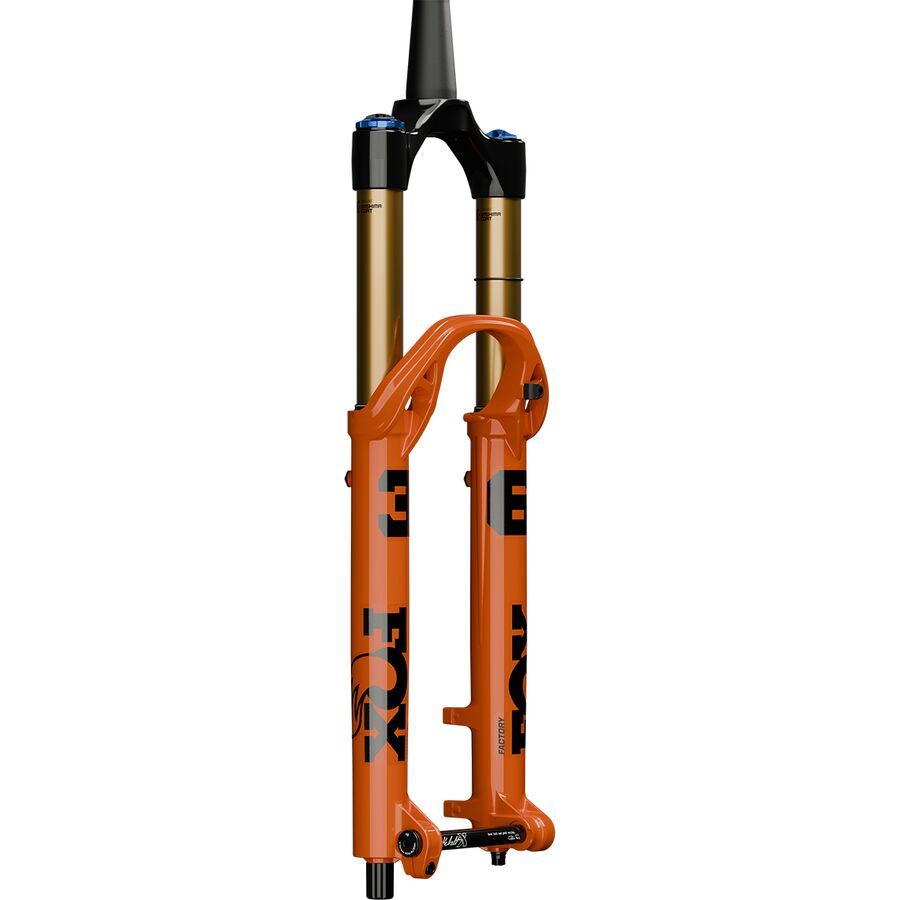

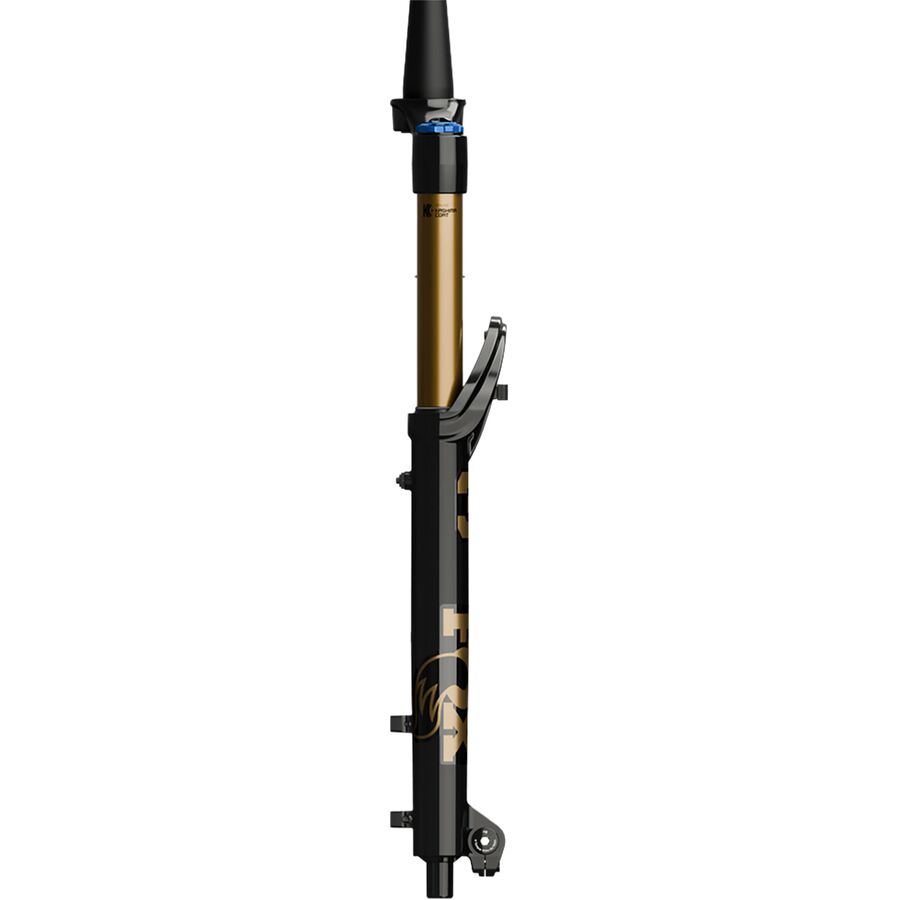

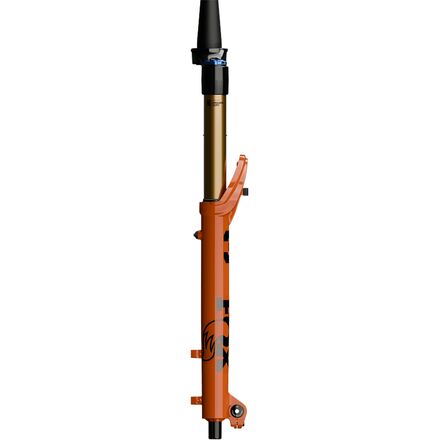

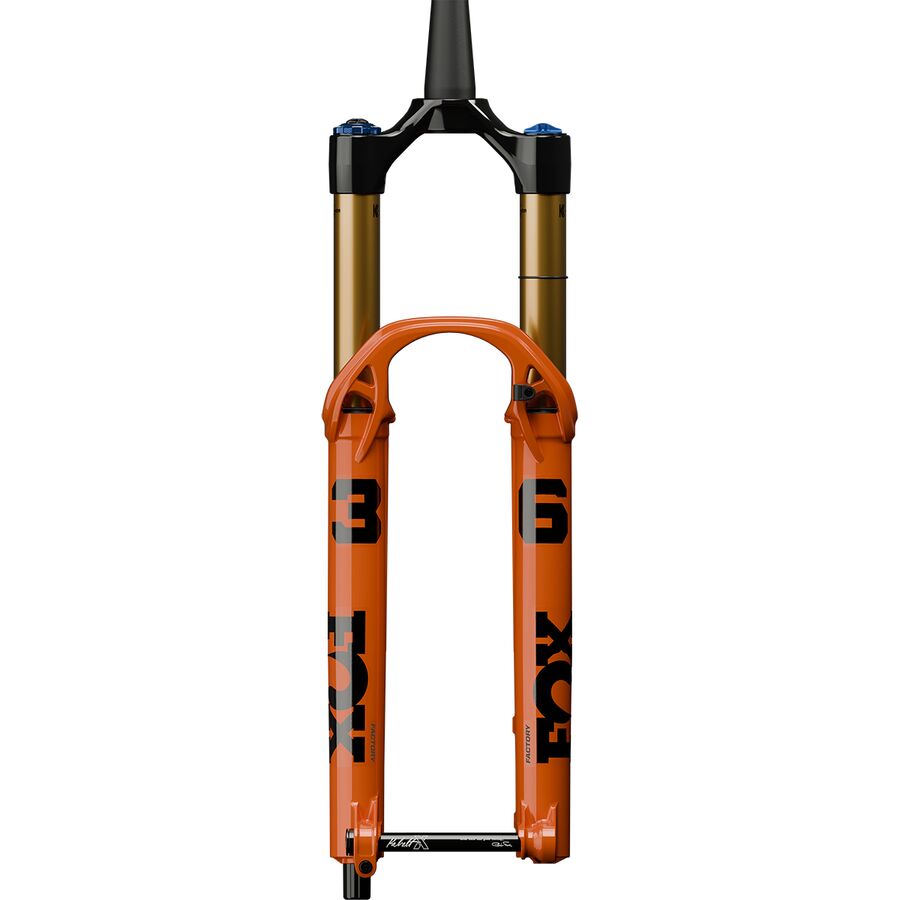

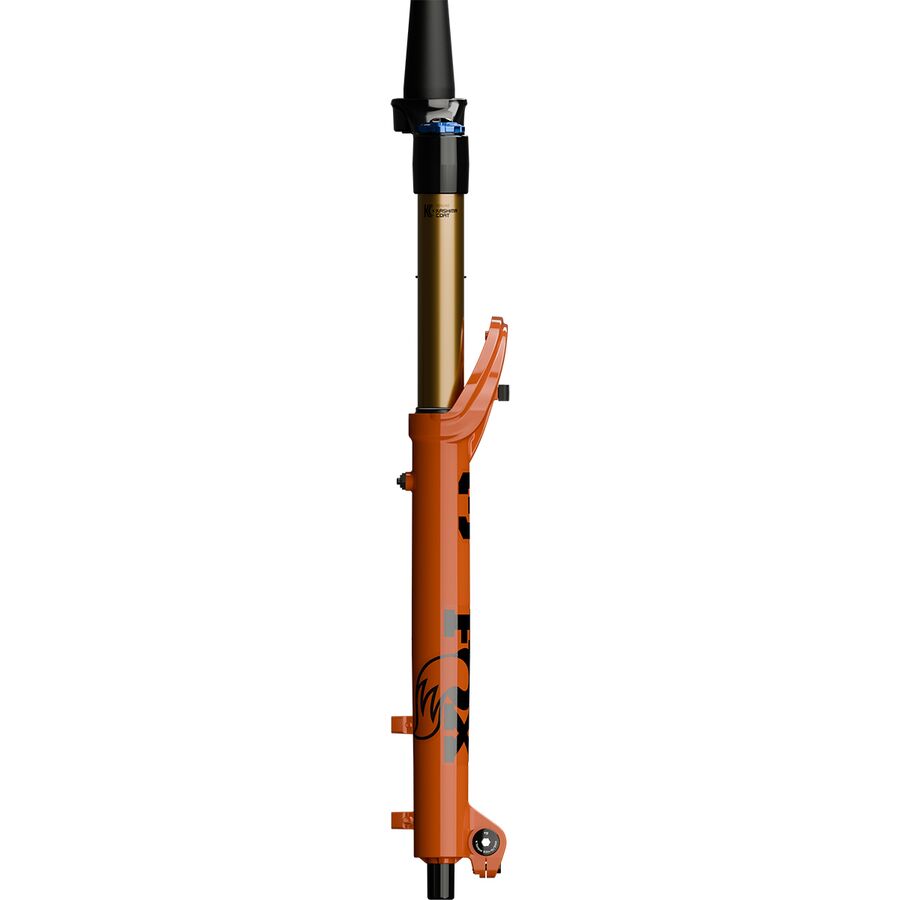

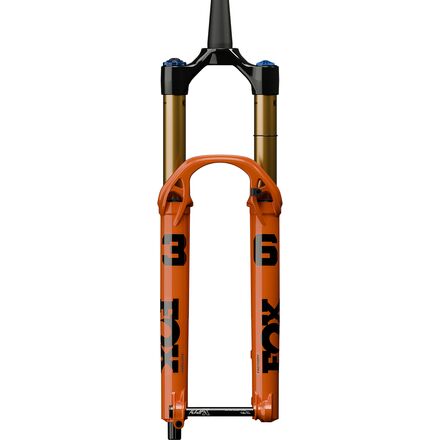

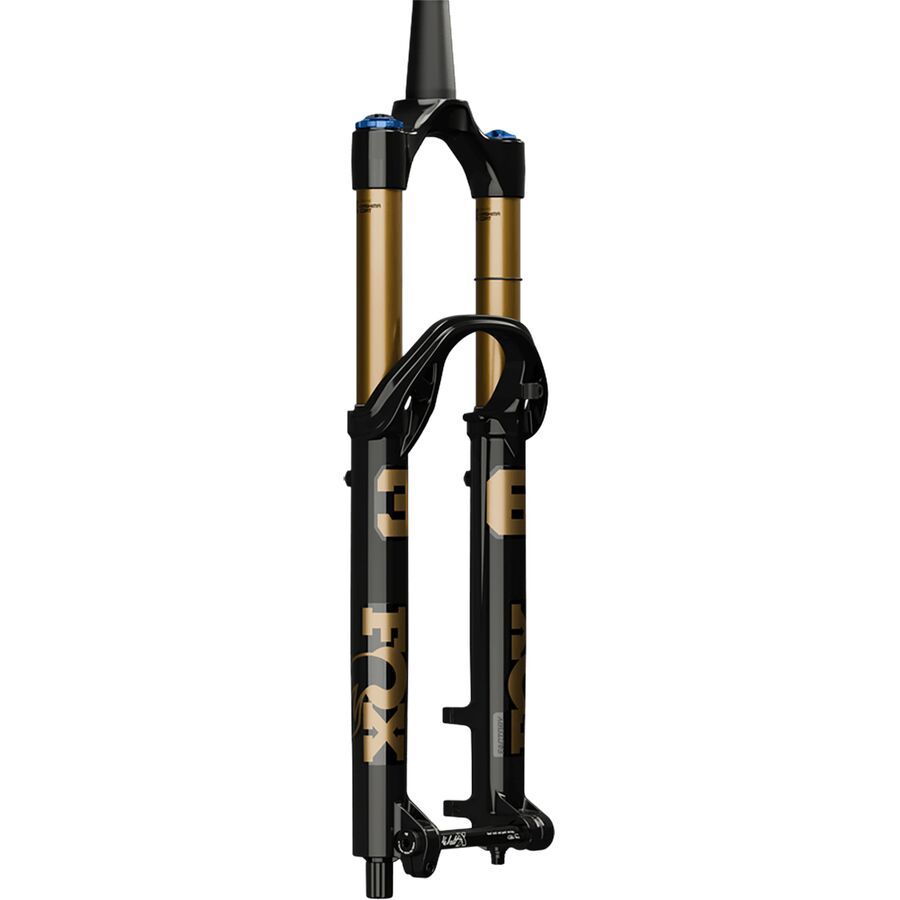

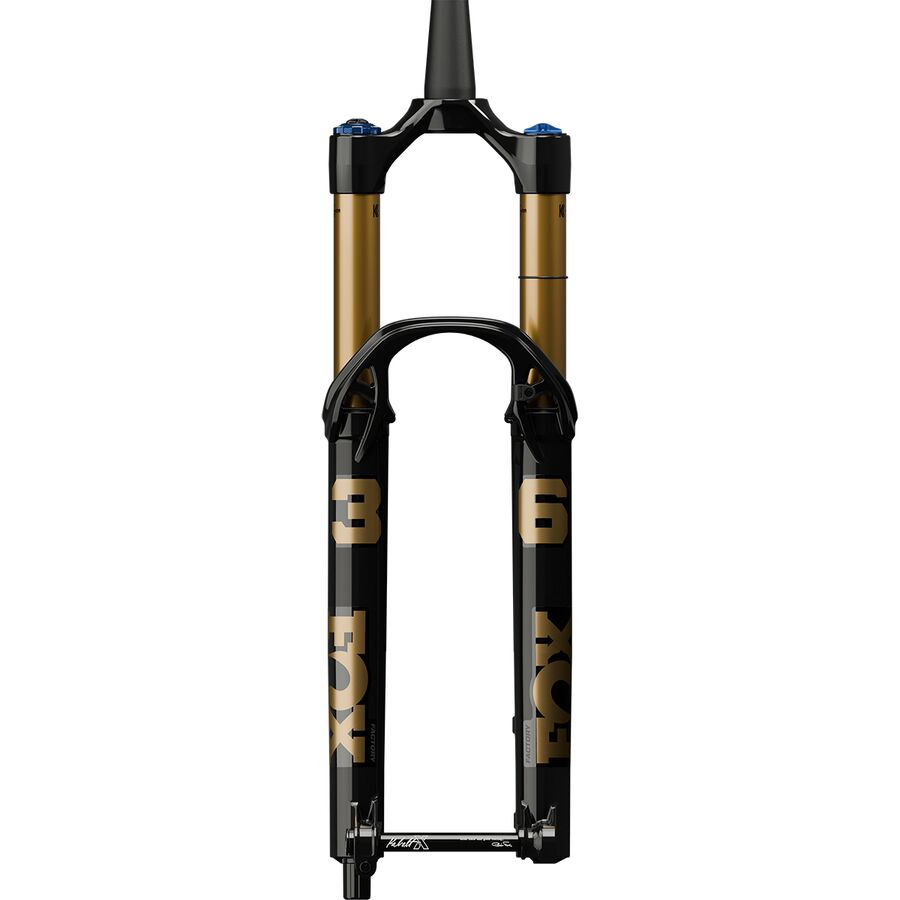

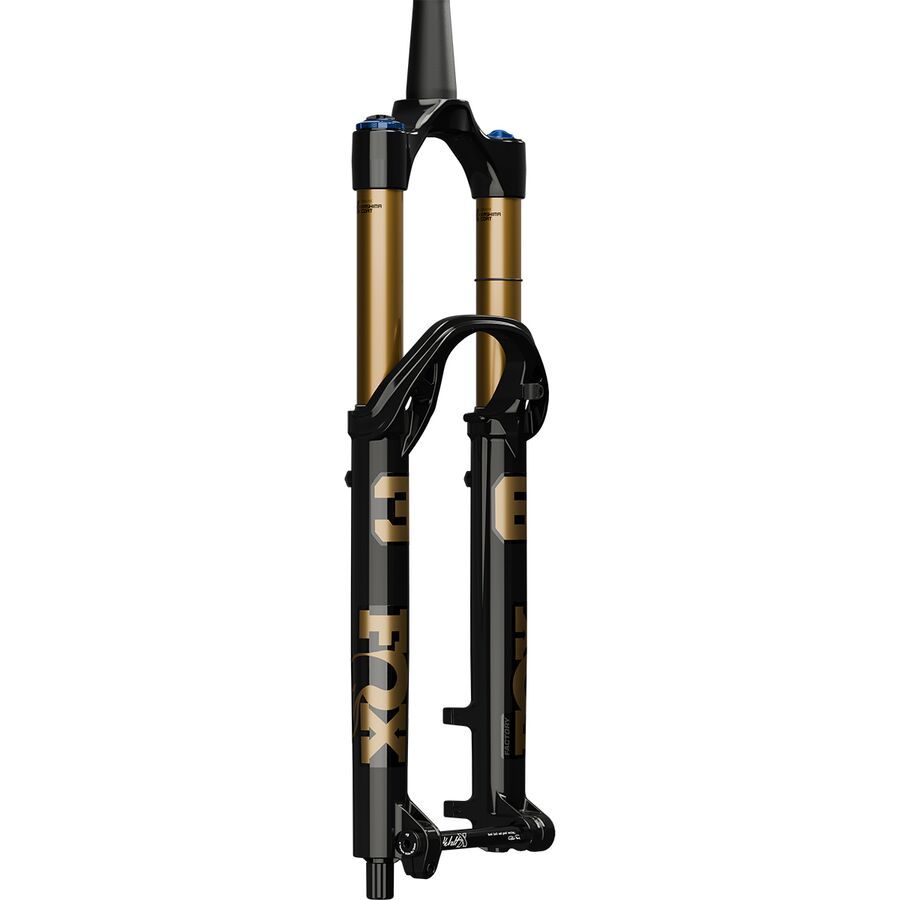

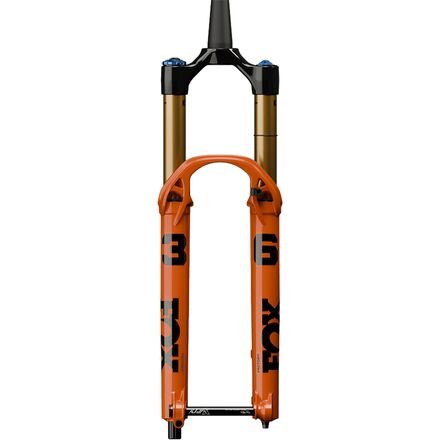

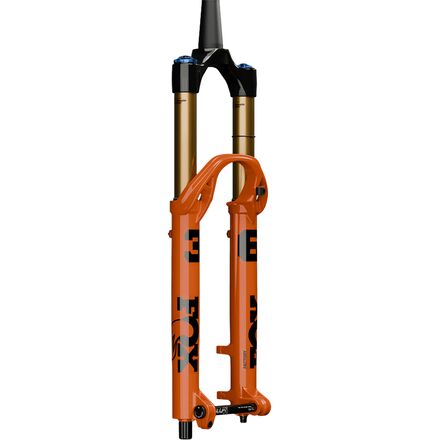

FOX Racing Shox 36 Float 29in Factory Grip X Fork

• Product Details

  What Our Gearhead Experts Are Saying:

  "This setup nails the balance between stiffness and responsiveness. It pedals like a trail fork but gives me the confidence of something much beefier on the descent. The chassis updates and Glidecore spring really step it upthis thing rips."

  The FOX Float 36 29in Factory Grip X Fork blends precise trail handling with downhill-capable support, making it a favorite for all-mountain riders who demand performance on both the ups and the downs. With a 44mm rake and travel options that slot perfectly into aggressive trail geometry, it offers quick handling without compromising stability.

  Built around FOXs updated 36mm chassis, this MY26 version introduces a redesigned arch for 20% more torsional stiffness and longer bushing overlap for improved support through rough compressions and braking chatter. The Glidecore-enhanced FLOAT EVOL air spring reduces friction by self-aligning under dynamic loads, helping the fork stay planted and responsive through chunky terrain. The GRIP X damper delivers buttery compression and rebound control with an intuitive firm mode for efficient pedaling, making it just as comfortable climbing as it is plowing through the rowdy stuff.

  With a floating Kabolt-X axle, Kashima-coated stanchions, and support for up to 230mm rotors, this fork brings enduro-worthy confidence to trail-weight builds. Whether you're powering through loam or pushing into steep chutes, the Float 36 is ready.

  • Mid-travel fork for aggressive trail and all-mountain 29in bikes
  • Grip X damper delivers full compression and rebound tuning with climb-friendly firm mode
  • Glidecore FLOAT EVOL spring enhances sensitivity and reduces dynamic friction
  • Generative arch design increases torsional stiffness by 20% without weight gain
  • Extended bushing overlap boosts smoothness under lateral and braking loads
  • Floating Kabolt-X axle improves tracking and front-end precision
  • Kashima-coated stanchions provide buttery travel and long-term durability
  • Rotor compatibility from 200mm post mount up to 230mm maximum

  Travel

  150mm,160mm

  Stanchion Material

  aluminum, Kashima-coated

  Lower Material

  magnesium

  Crown Material

  aluminum

  Wheel Size

  29in

  Steer Tube Diameter

  1.5in tapered

  Stanchion Diameter

  36mm

  Axle To Crown

  576mm

  Rake

  44mm

  Spring Type

  FLOAT EVOL air

  Damper

  GRIP X

  Axle

  15 x 110mm

  Rotor Compatibility

  200 - 230mm

  Claimed Weight

  4lb 4oz (1920g)

  Activity

  trail

  Manufacturer Part Number

  910-21-355, 910-21-354, 910-21-352
