Denali SoundBomb Split Air Horn And Wiring Harness Combo

• Product Details

  The MotoSport.com DENALI SoundBomb Compact Air Horn And Wiring Harness Combo includes ONE each of the following:

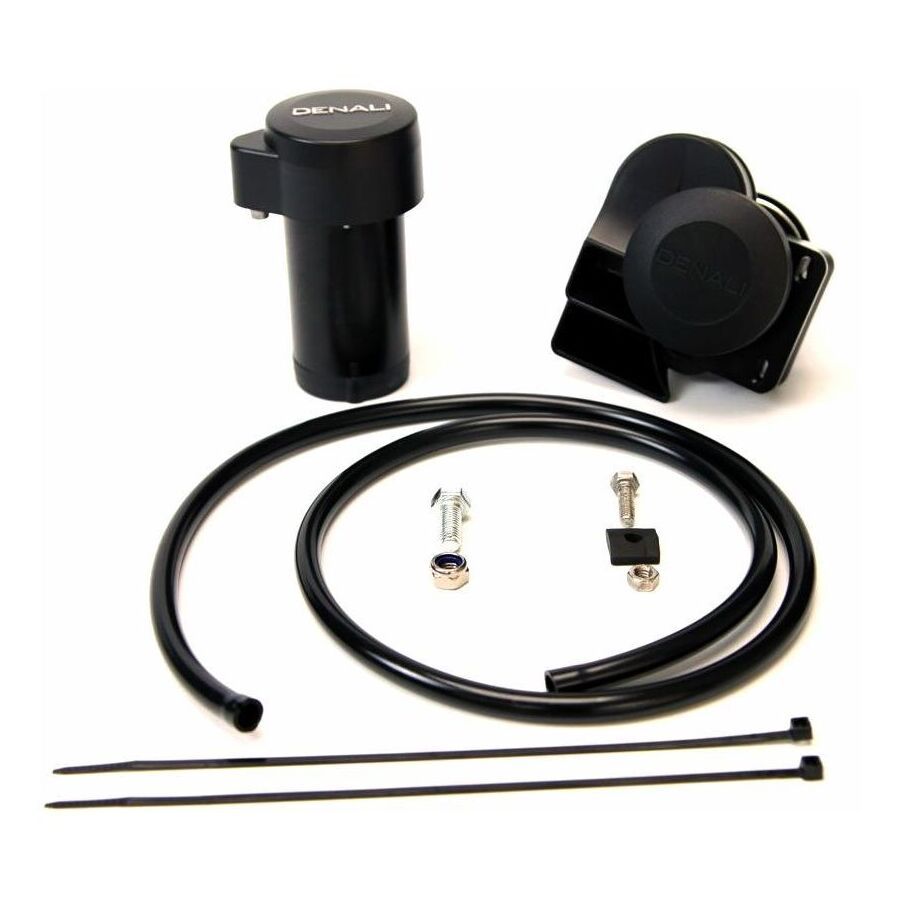

  DENALI SoundBomb Split Dual Tone Air Horn:

  LOUD! Stylish! Rugged!

  Producing an earsplitting 120 decibels of sound, the SoundBomb is four times louder than a standard motorcycle horn and twice as loud as a standard car horn! The DENALI SoundBomb was designed for those who want to be heard, but still want to maintain a stylish look. Thanks to its compact design and blacked-out housing, the SoundBomb will practically disappear once installed.

  The unique two piece design of the DENALI split horn separates the compressor from the acoustic unit allowing the horn to be installed in tight spaces like behind motorcycle body panels. A 48-inch heat-resistant air hose connects between the two halves allowing you to mount them in an entirely different location on your bike without sacrificing any sound output.

  Technical Specs:

  • 120 decibels at three feet.
  • Operating voltage: 12V.
  • Power draw: 20 amps.
  • Size (compressor): 4.5" x 2.9" x 3.0".
  • Size (acoustic unit): 4.1" x 3.7" x 3.4".
  • Housing: Two part design.
  • CANbus compatible.
  • What's in the box:
  • Horn compressor and horn acoustic unit.
  • 12-volt, 30-amp relay.
  • Heat-resistant air hose.
  • Compressor mounting hardware.
  • Acoustic unit mounting hardware.
  • Zip tie mounting option.
  • Note: Add DENALI's BMW wiring adapter (P/N DNL.WHS.10100) for plug-and-play installation to BMW motorcycles.

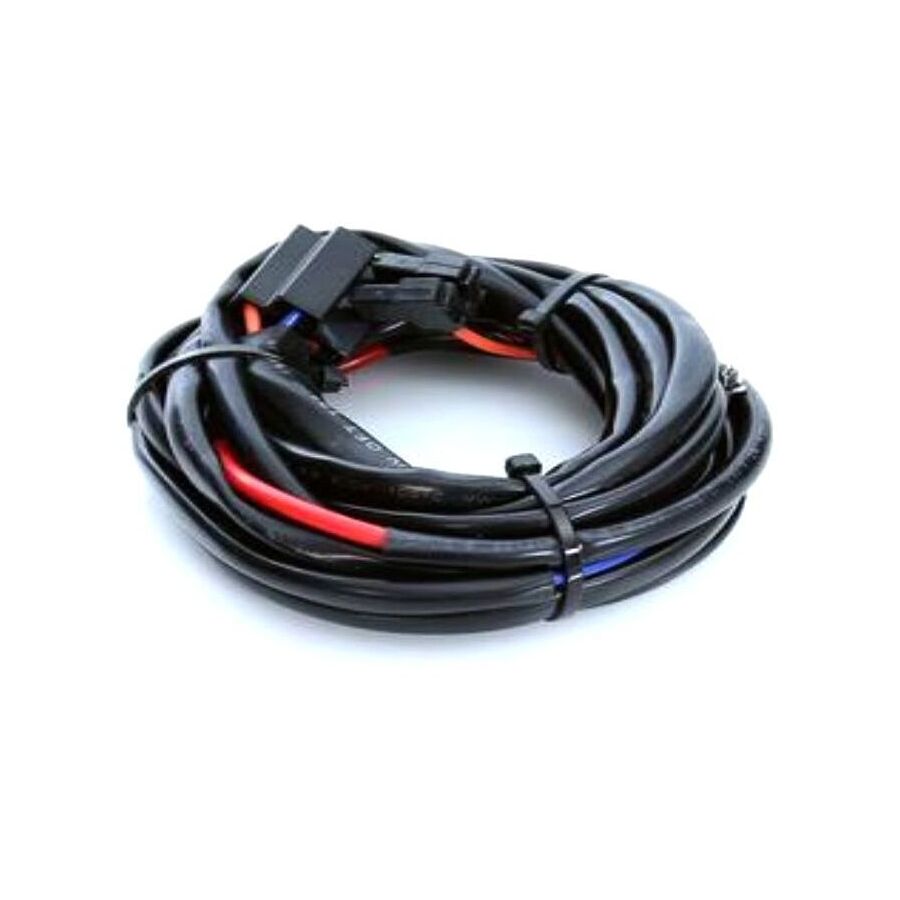

  DENALI SoundBomb Compact / Split Air Horn Wiring Harness:

  Easy and inexpensive Plug-and-Play Wiring Harness for DENALI SoundBomb Compact and DENALI SoundBomb Split Horns (both sold separately).

  Does not require any cutting, soldering, slicing or crimping as long as the original horn has blade-style electrical connections.

  • No cutting, soldering or crimping for application with blade style horn connections.
  • Extra connections for custom applications.
  • 5.5 foot harness length.
  • 30 amp mini in-line fuse.
  • Inline relay socket.
  • Protective vinyl sheath.
  • Weather resistant.
  • What's In The Box:
  • (x1) SoundBomb Horn Wiring Harness.
  • (x2) Posi-tap inline wire connectors for custom applications.
  • (x2) male spade crimp on connectors for custom applications.
  • (x2) female spade crimp on connectors for custom applications.
  • (x4) wire zip ties.
  • (x1) 30 amp mini ATM fuse.
  • Notes: The CAN bus system on most KTM motorcycles does not allow the O.E.M. horn to be removed. It's required that you leave the O.E.M. horn connected to prevent failure lights from appearing on the dash. All modern BMW motorcycles use a specialty connector at the O.E.M. horn connection. A DENALI Horn Wiring Adapter is necessary for plug-and-play connection with BMW Motorcycles and is sold separately. A 5-Pin relay is NOT included with this kit. A relay is provided with the purchase of a DENALI SoundBomb Compact or Split Horn (both sold separately).

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Horn

  Product Variant	Manufacturer Part #
  Denali SoundBomb Split Air Horn And Wiring Harness Combo	TT.SB.10100.B

  Wiring Harness

  Product Variant	Manufacturer Part #
  3.0 Feet	DNL.ELC.004
  5.5 Feet	DNL.ELC.10000
