DENALI DR1 Auxiliary LED Light Kit for Motorcycles, ATVs, UTVs, Snowmobiles, Jeeps and Trucks.
The unique oversized reflector in the DR1 creates an industry-leading 1000 foot beam distance from the single pair of 10 watt LEDs. No other 10 watt LED even comes close. The DR1 is ideal for night riding conditions where maximum beam distance is desired. The included pair of True-Hybrid lenses carry an official E-Mark Certification and create a more balanced combination of distance and width.
DENALI's innovative DataDim Technology enables the lights to be upgraded in seconds to dual intensity by connecting a plug-and-play DataDim Controller (DNL.WHS.11000; sold separately) that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.
- Comprehensive nine-piece LED light kit specifically designed for powersports applications.
- High-Intensity Series Cree LEDs outputting 2190 lumens per kit.
- TriOptic Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one kit.
- DataDim equipped light pods and harness allow plug-and-play connection to the DataDim dimming controller (P/N DNL.WHS.11000; sold separately).
- Premium powersports harness with waterproof switch and handlebar switch mount included.
- DrySeal Submersible Waterproof light and switch housings can withstand the most extreme environments.
- Impact PC Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
- LiveActive Thermal Management keeps the LEDs cool preventing the loss of light output from overheating.
- Low-profile mounting bracket with stainless steel hardware included.
- Additional pair of E-Mark Approved flood lenses included.
- Amber lenses available (P/N DNL.DR1.10100; sold separately).
- DR1 Kit Technical Specs:
- LED's: (2x) 10 watt Cree XPL HI.
- Power draw: 1.6 amps.
- Beam distance (Spot): 1000 feet.
- Beam width (Spot): 75 feet.
- Raw lumens: 2190.
- Intensity: Single Intensity harness.
- DataDim compatible: Yes.
- Operating voltage: 12 VDC.
- Pod size: 3.7" round x 3.8" deep (each).
- Pod weight: 1.45 pounds (each).
- IP67 waterproof and submersible.
- E-Mark Approved hybrid lenses.

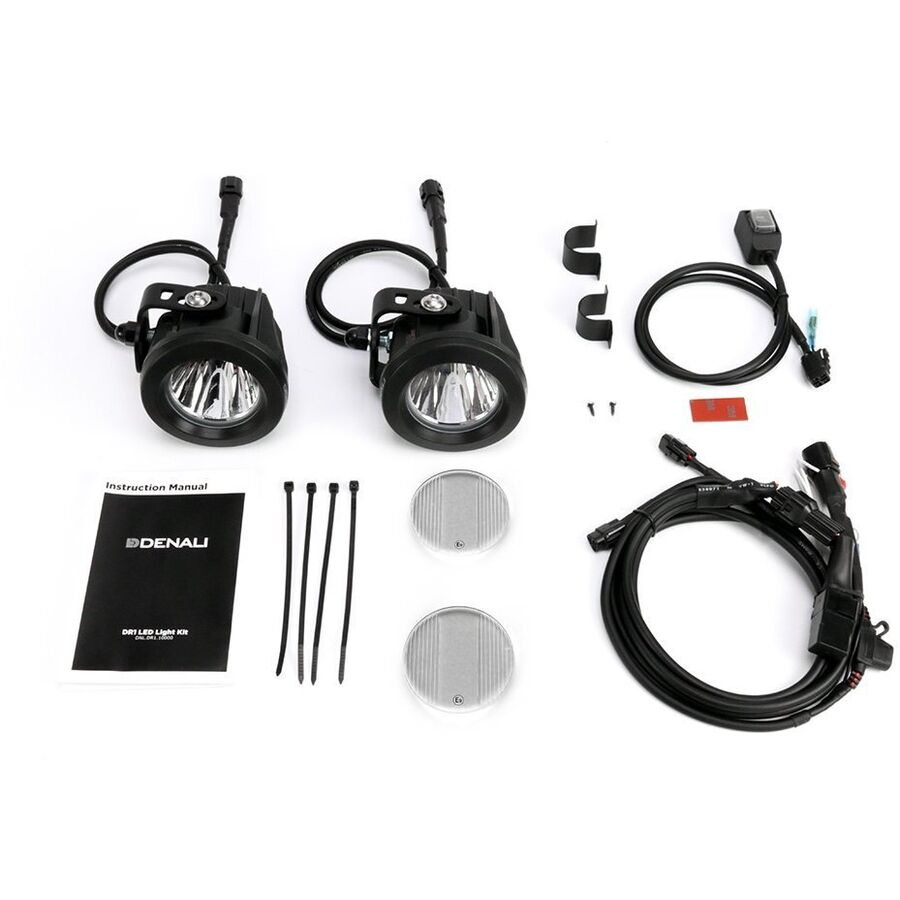

- DR1 Kit - What's In The Box:

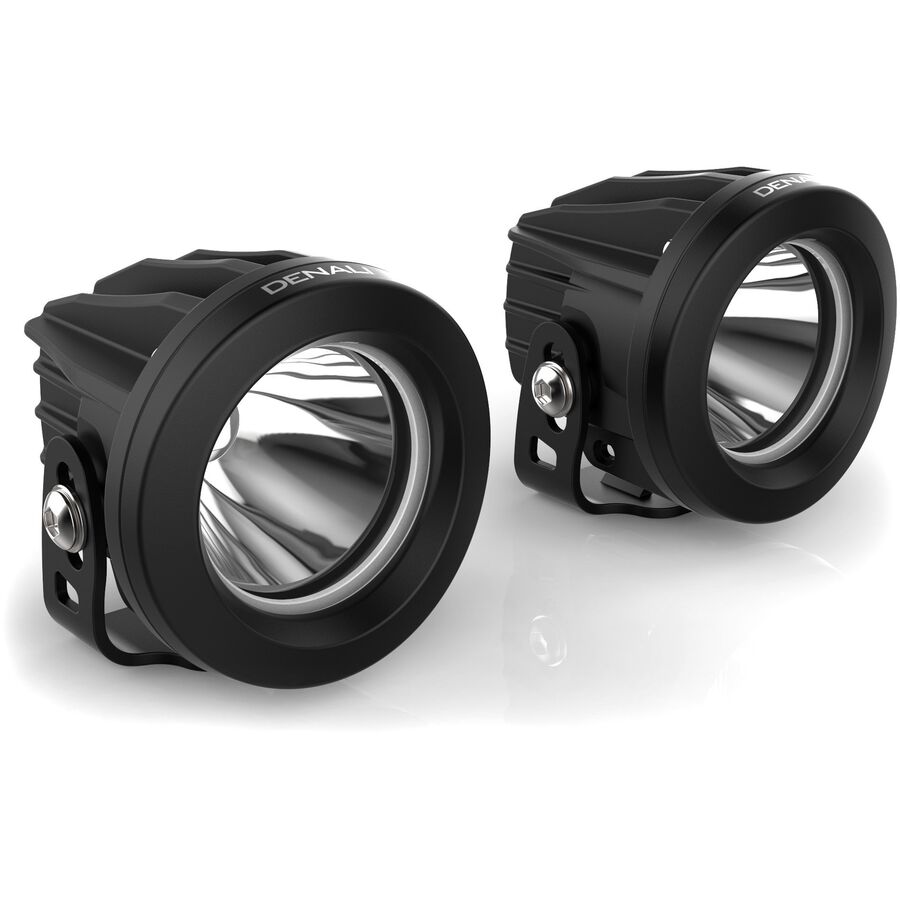

- (2x) LED Light Pods.
- (2x) Spot lenses (installed).
- (2x) E-Mark Approved True-Hybrid lenses (included).
- (1x) HotSwap Single Intensity wiring harness.
- (1x) DrySeal waterproof illuminated switch.
- (1x) 7/8-inch handlebar switch mount.
- (1x) 1-inch handlebar switch mount.
- (2x) hinge mounts with M8 stainless steel hardware.
- (4x) zip ties.
- (1x) adhesive mounting square.
