Introducing the brightest and most durable motorcycle driving lights that won't break the bank. Engineered based on a decade of customer feedback, the DL Series Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and DENALI's signature dimming technology at a price point that is more approachable to new riders, younger riders, and the rapidly growing international customer base!

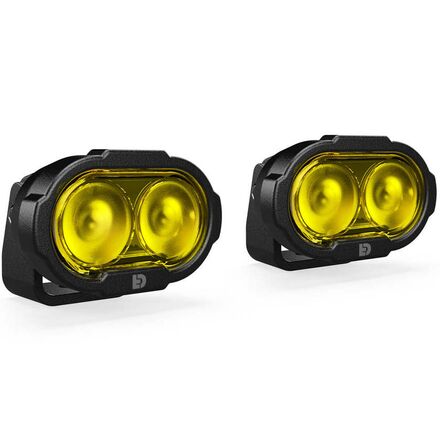

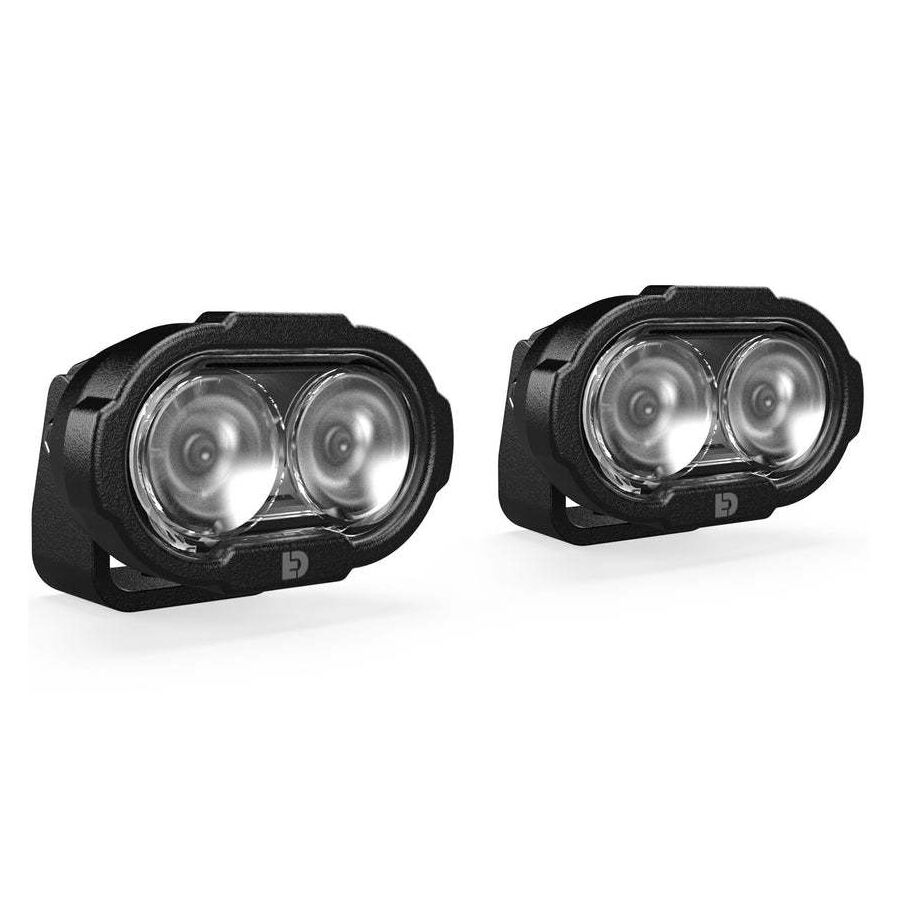

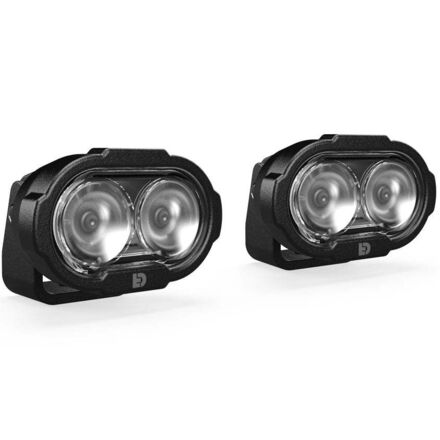

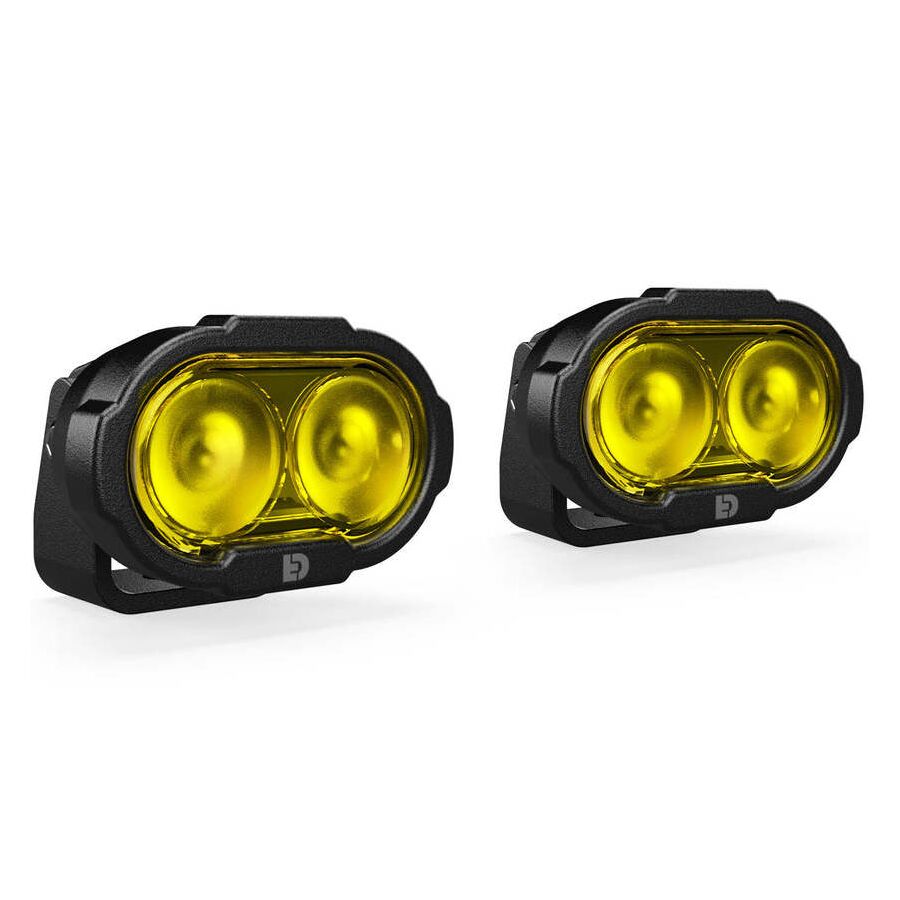

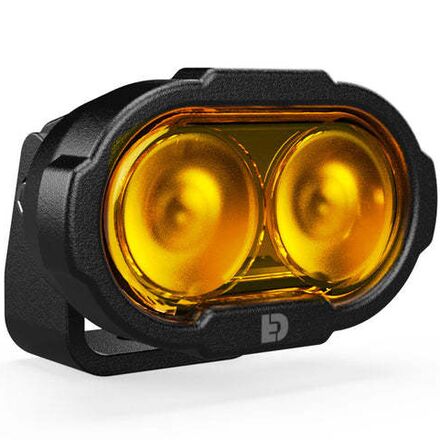

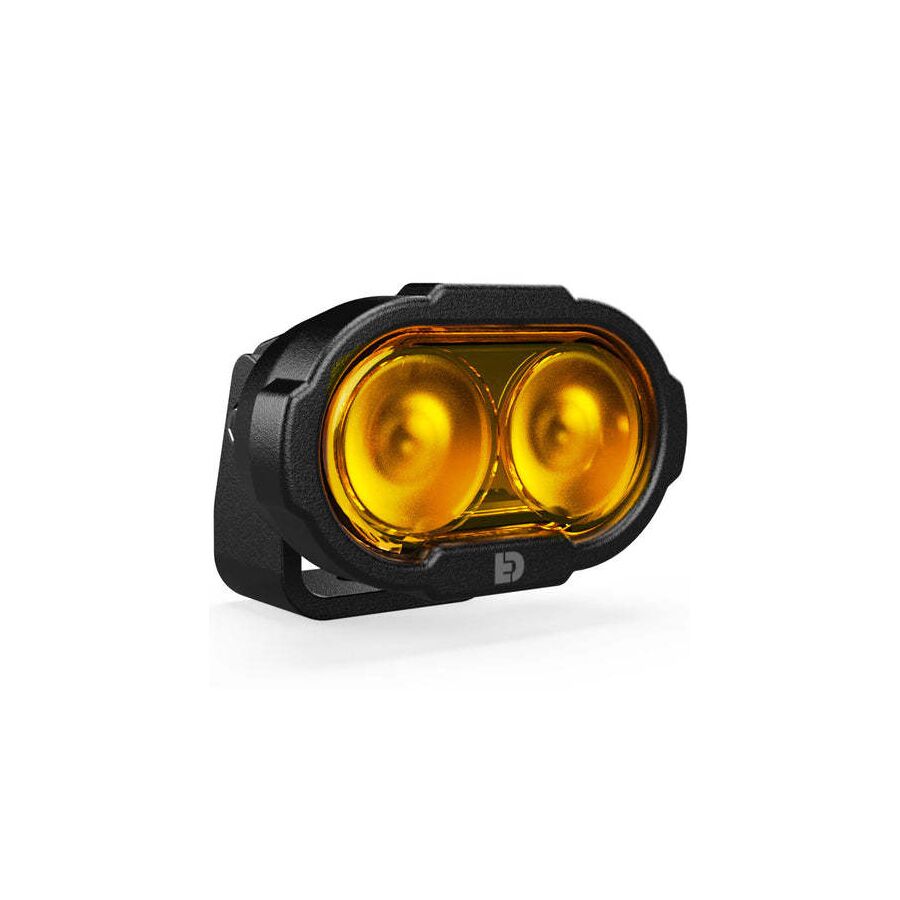

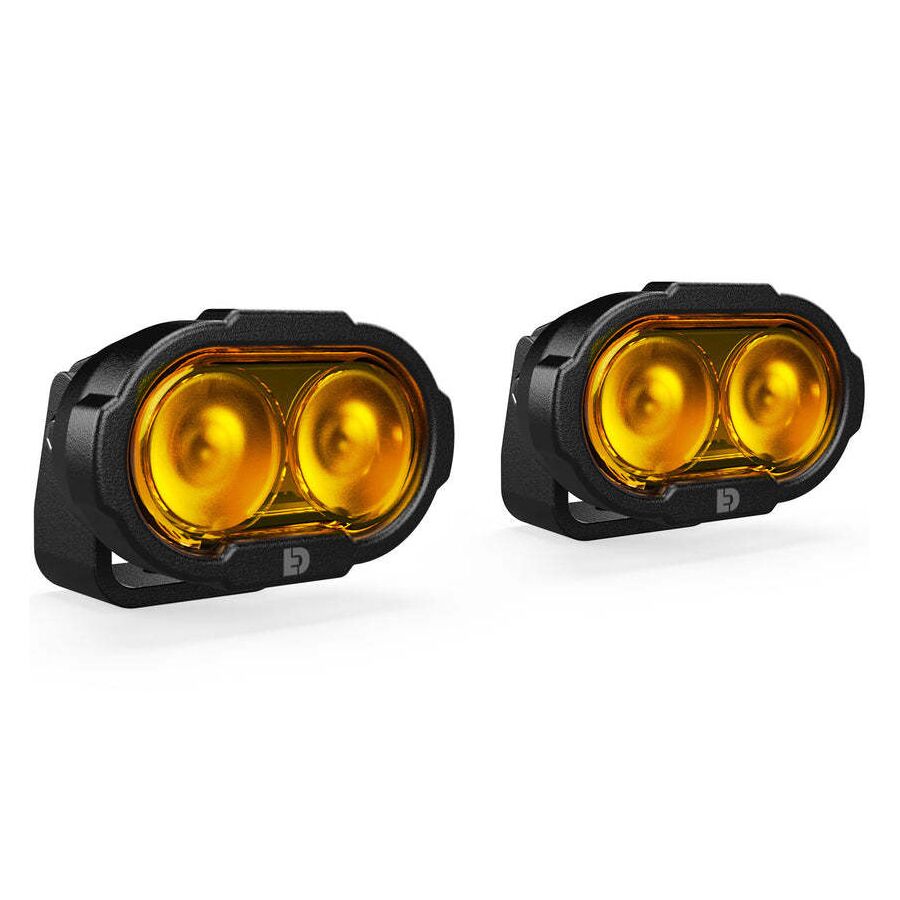

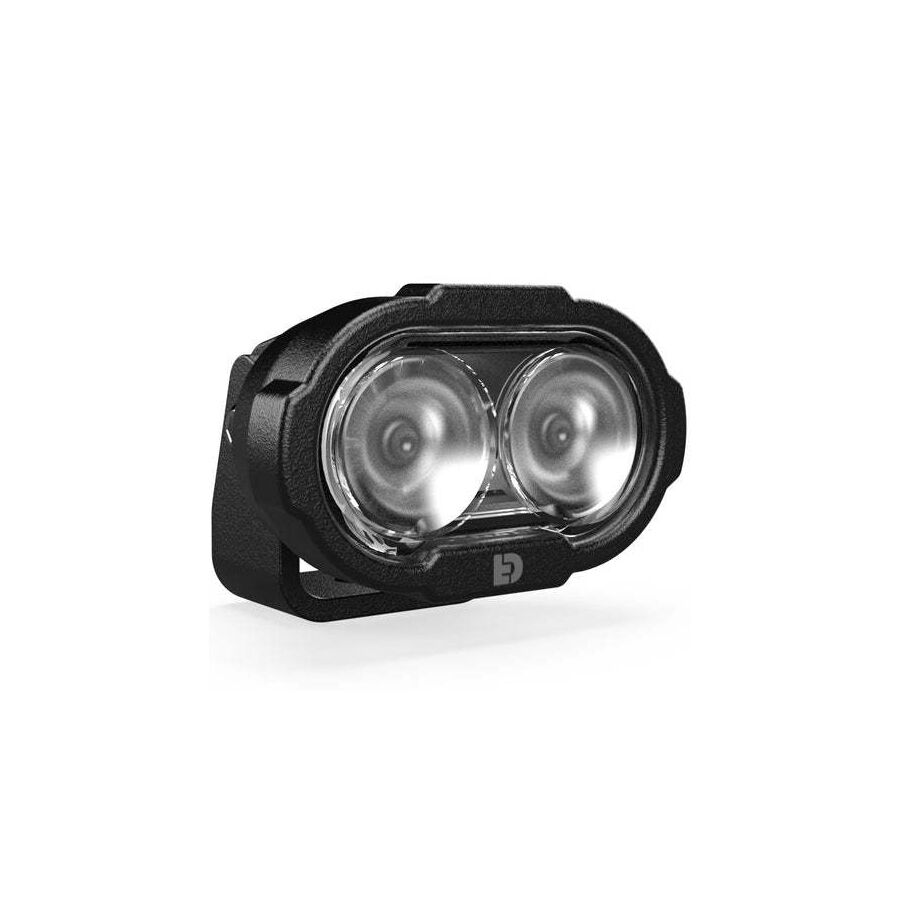

How can they be this good and so affordable at the same time? Thanks to the single-piece TIR optic and robotically sealed construction, we are able to reduce the number of parts, accelerate assembly time, and reduce the overall production costs without sacrificing any changes to DENALI's top-bin LEDs, circuitry, or optical design. The result is a indestructible and submersible light pod that can deliver more light per dollar than any of Denali Electronics' competitors. All DL Series lamps are available in white, amber, or selective yellow beam options are plug-and-play compatible with all DENALI lighting harnesses and controllers.

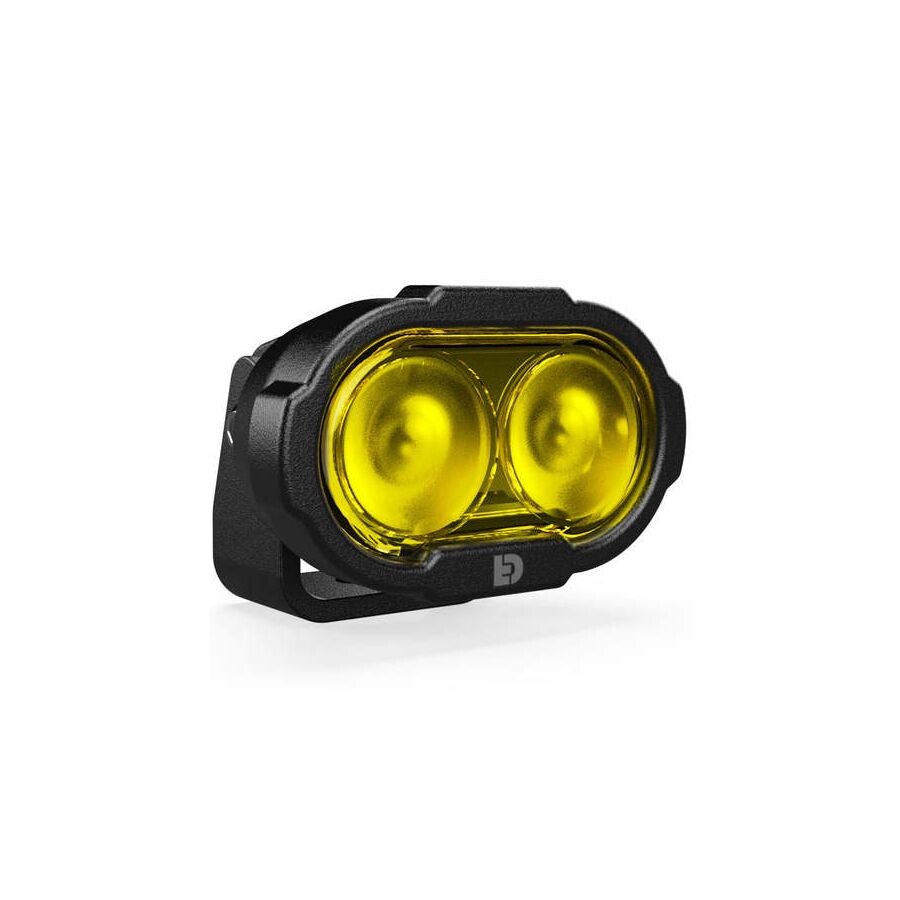

The DL4 features a perfected hybrid driving beam and is the ideal option for your primary auxiliary driving lights on small to medium sized bikes. It is also small and light enough that it can be mounted in lower fender applications on larger ADV bikes.
- HiDrive LEDs 3,400 Lumens Per Pair - Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 9-LED square package.
- Oversized TIR Optics - Perfected Hybrid Driving Beam - The proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving the driving beam unmatched distance and width from the most compact housing possible.
- DataDim Plug-and-Play Dimming - The signature three-wire design uses dedicated dimming wiring for maximum reliability and plug-and-play connection to all DENALI light harnesses, DialDim, and CANsmart Controllers.
- DrySeal Sealed Beam Construction - The patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
- Overbuilt Not Overpriced - The 4 mm thick powder-coated steel brackets and robust heatsink enable an impressive 21 grams vibration rating, while the polycarbonate lenses are reinforced with UV hard coating.
- ECE Compliant Driving Beam - The hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not compliant for street-legal high beam use.
Specifications (Single | Pair):
- LED's: Cree XPL2 HD (8W each).
- Watts: 16W | 32W.
- Amp draw: 1.3A | 2.7A.
- Raw lumens: 1,700 | 3,400.
- Beam distance: 130' (40 meters) | 173' (53 meters).
- Beam width: 85' (26 meters) | 113' (35 meters).
- Connector: DataDim Compatible 3-wire DT.
- Color temperature: 6000K.
- Operating voltage: 9 - 32 VDC.
- Pod size: 2" x 3" Rectangle x 2" Deep.
- Pod weight: 0.8 pounds | 1.6 pounds.
- IP Rating: IP68 and 69K waterproof submersible and high-pressure spray.
- EMC: R10, CISPR 25, CE, UKCA Compliant.
New Wiring and Switching Options.
For 2022, DENALI has expanded on their standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or select from the options below (all sold separately). Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!
- Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install.
- Standard Automotive Harness - Robust, added length, and a flush mount illuminated rocker switch for dash mounting.
- Premium Powersports Harness - Overmolded wire, and a premium illuminated switch with handlebar mounting kit.
- DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
- DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high / low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!
What's Included:
- Single light pods include:
- (1x) Light Pod with mounting hardware.
- (1x) 3-wire pigtail.
- Pair of light pods include:
- (2x) of the above light pods and pigtails.
Note: The light pods and harness options are packaged separately in their respective retail packaging.
