Denali D4 2.0 DataDim LED Light Kit

• Product Details

  DENALI D4 Auxiliary LED Light Kit for Motorcycles, ATVs, UTVs, Snowmobiles, Jeeps and Trucks.

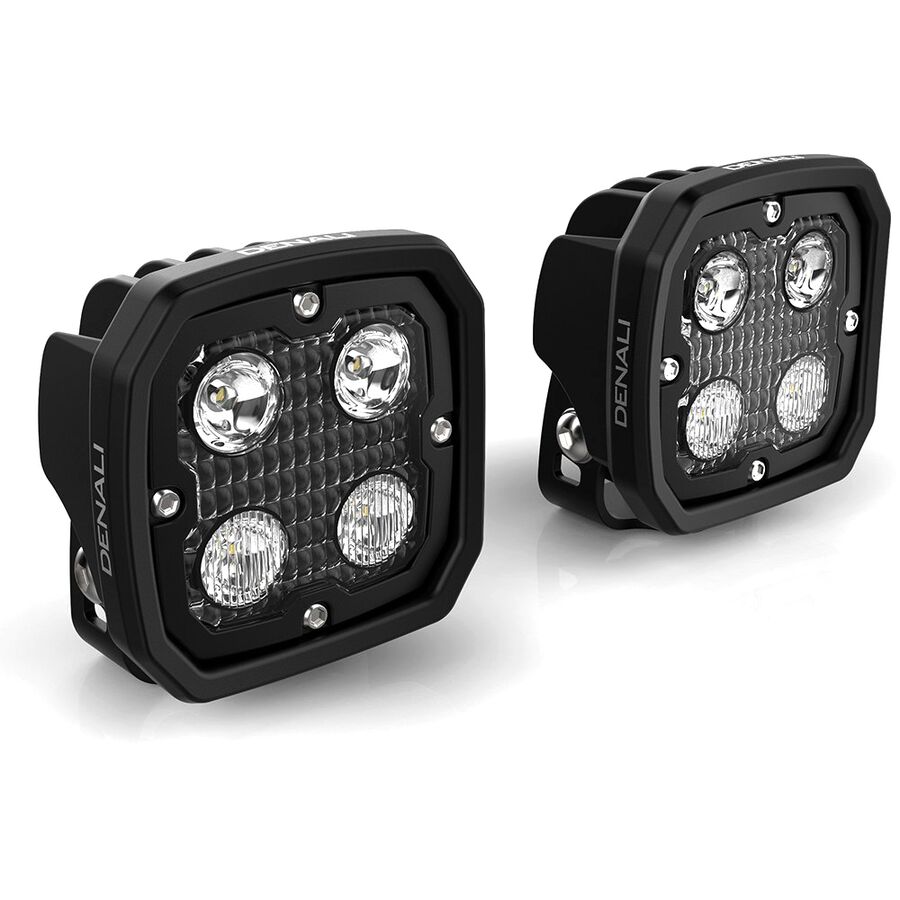

  Simply put, the DENALI D4 is a beast. It is DENALI's most powerful light packing the punch of 8750 lumens in a pair of aggressively styled housings. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included pair of spot lenses throws a massive beam of light 800 feet and carries an official E-Mark certification.

  DENALI's innovative DataDim Technology enables the lights to be upgraded in seconds to dual intensity by connecting a plug-and-play DataDim Controller (P/N DNL.WHS.11000; sold separately) that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.

  • Comprehensive nine-piece LED light kit specifically designed for powersports applications.
  • High-Intensity Series Cree LEDs outputting 8760 lumens per kit.
  • TriOptic Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one kit.
  • DataDim equipped light pods and harness allow plug-and-play connection to the DataDim dimming controller (P/N DNL.WHS.11000; sold separately).
  • Premium powersports harness with waterproof switch and handlebar switch mount included.
  • DrySeal Submersible Waterproof light and switch housings can withstand the most extreme environments.
  • Impact PC Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
  • LiveActive Thermal Management keeps the LEDs cool preventing the loss of light output from overheating.
  • Low-profile mounting bracket with stainless steel hardware included.
  • Additional pair of E-Mark Approved flood lenses included.
  • Amber lenses available (P/N DNL.D4.10100; sold separately).
  • D4 Kit Technical Specs:
  • LED's: (8x) 10 watt Cree XPL HI.
  • Power draw: 6.6 amps.
  • Beam distance (Spot): 800 feet.
  • Beam width (Spot): 110 feet.
  • Raw lumens: 8760.
  • Intensity: Single Intensity harness.
  • DataDim compatible: Yes.
  • Operating voltage: 12 VDC.
  • Pod size: 3.9" square x 2.6" deep (each).
  • Pod weight: 1.55 pounds (each).
  • IP67 waterproof and submersible.
  • E-Mark Approved spot lenses.

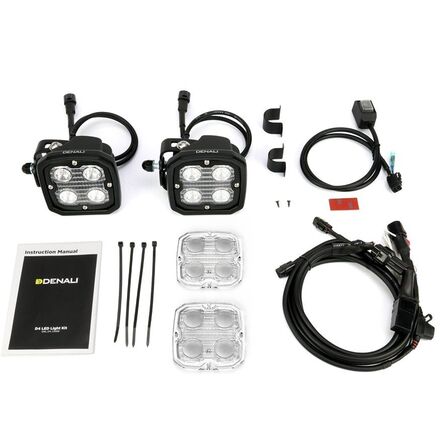

  • D4 Kit - What's In The Box:
  • (2x) LED Light Pods.
  • (2x) True-Hybrid lenses (installed).
  • (2x) E-Mark Approved spot lenses (included).
  • (1x) HotSwap Single Intensity wiring harness.
  • (1x) DrySeal waterproof illuminated switch.
  • (1x) 7/8-inch handlebar switch mount.
  • (1x) 1-inch handlebar switch mount.
  • (2x) hinge mounts with M8 stainless steel hardware.
  • (4x) zip ties.
  • (1x) adhesive mounting square.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Denali D4 2.0 DataDim LED Light Kit	DNL.D4.10000
