Hybrid Heat Controller

• Product Details

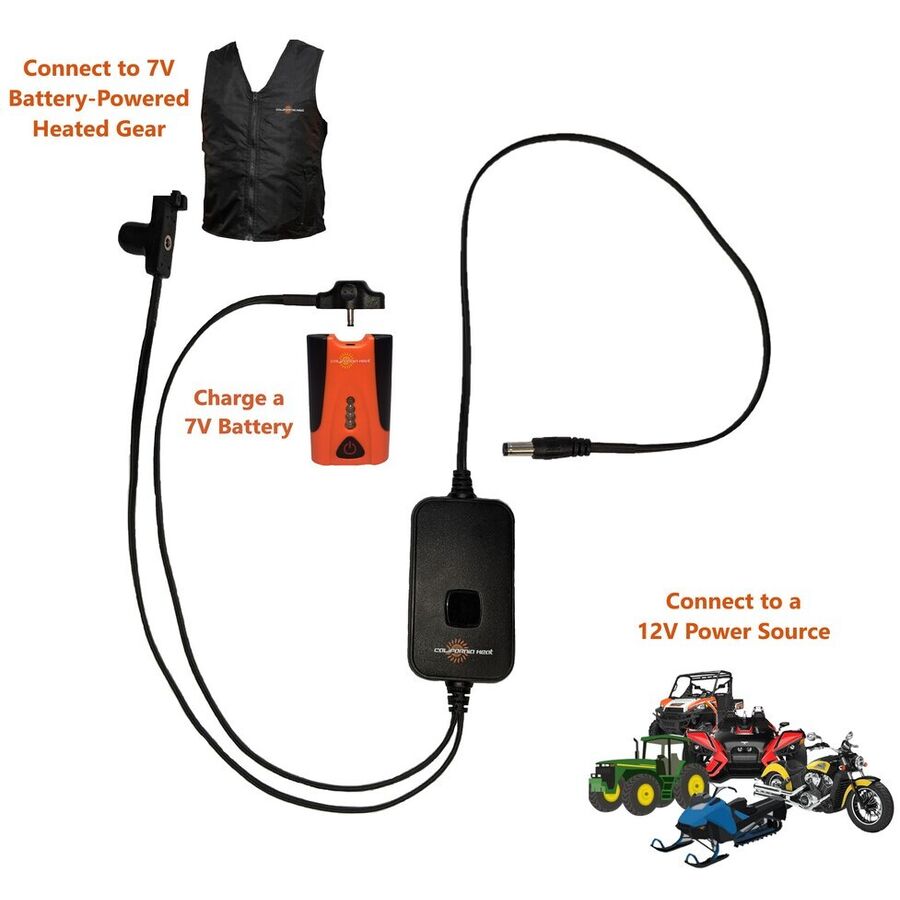

  With the Hybrid Heat Controller you can now power 7V battery-powered heated gear using a motorcycle, powersport vehicle, or any 12V accessory port.

  • Three Ways to Use:
  • Use a 12V power source to heat a 7V battery-powered item OR a pair of gloves / socks (using a 7V y-harness).
  • Use a 12V power source to charge a 7V battery.
  • Do both at the same time!
  • Information:
  • Connect to a 12V motorcycle or vehicle battery using a 12V Battery Harness OR 12V Accessory Plug OR 12V SAE-COAX Female, all sold separately.
  • Compatible with other 7V battery-powered brands that use the same plugs, including push-button heated gear.
  • Charge other brand 7V batteries that use the same plugs.
  • A dead (fully discharged) 7V battery takes 4 - 5 hours to fully charge while connected to a 12V power source.
  • If the controller is disconnected from a 12V power source, the 7V battery will begin powering the 7V clothing - simply turn on the battery then use the controller to change the temperature settings.
  • Three Heat Settings:
  • Blue - Low.
  • Amber - Medium.
  • Red - High.
  • Specifications:
  • Input - Connected to 12V Battery: 11V - 16V DC.
  • Output 1 - Charging 7V Battery: 8.4V 1.5A (Output 1 becomes a 7V Input powering Output 2 when it is connected to a charged 7V battery but NOT connected to a 12V power source).
  • Output 2 - Powering 7V Heated Product: 7V 2A max with three output settings (33% - 66% - 99').
  • Required for Operation (sold separately):
  • Three Options For Connecting to a 12V Power Source: 12V Battery Harness OR 12V Accessory Plug OR 12V SAE-COAX Female.
  • Warranty: All controllers are covered by a two year warranty.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Black California Heat Hybrid Heat Controller	TC12-7
