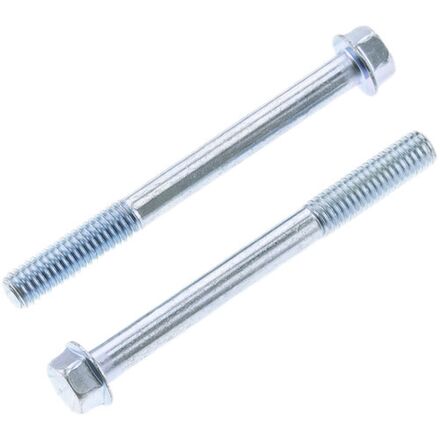

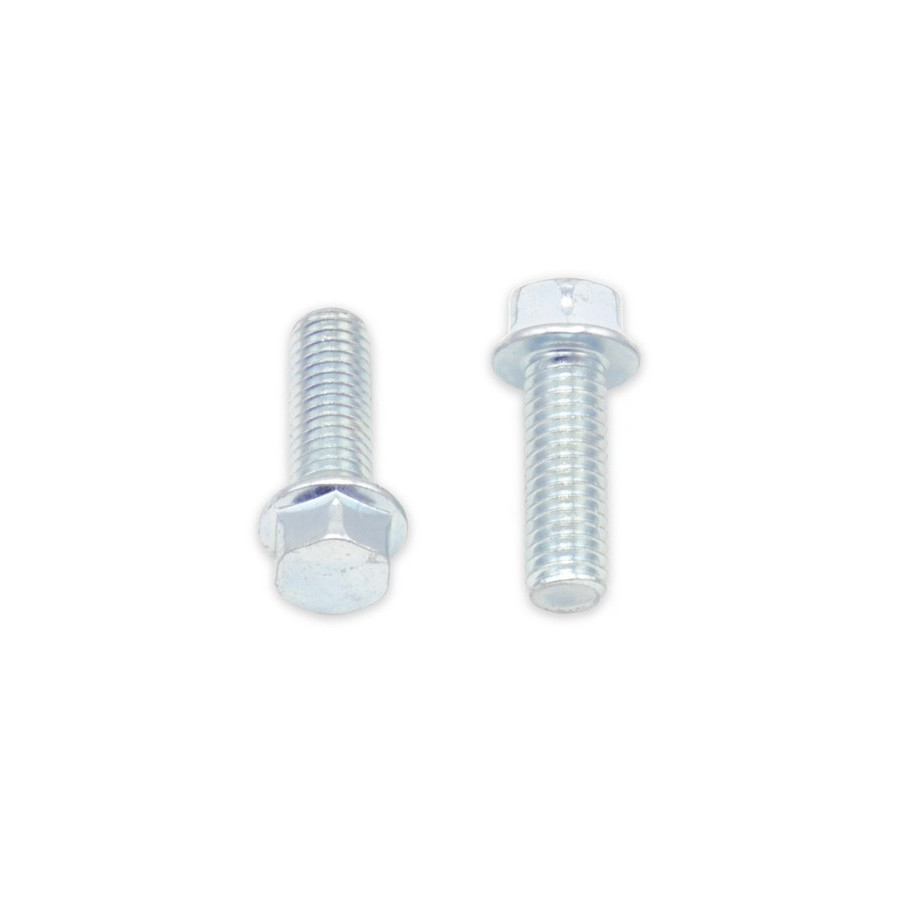

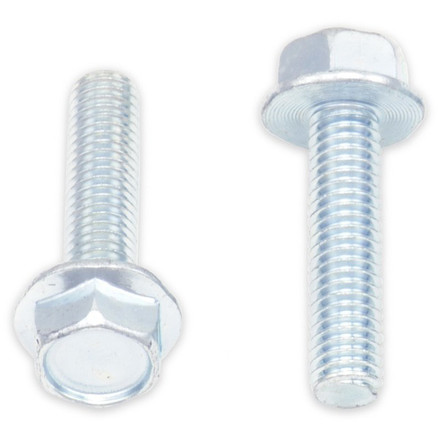

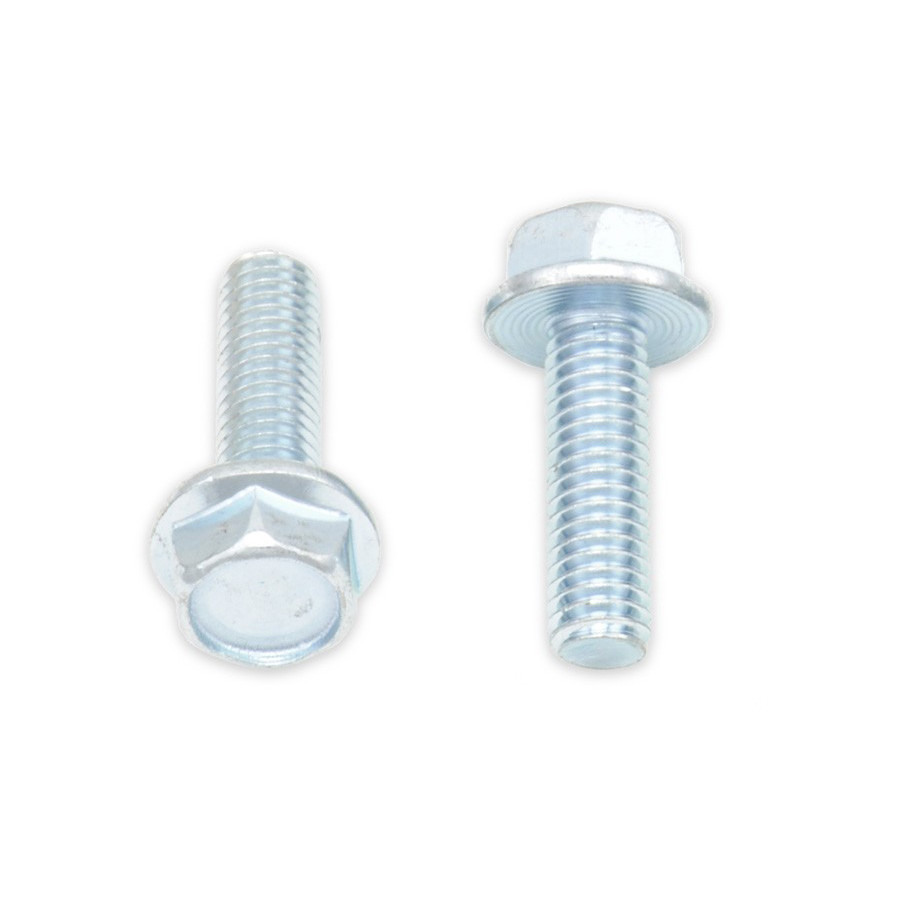

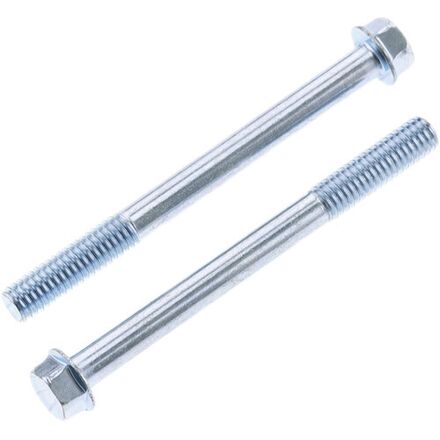

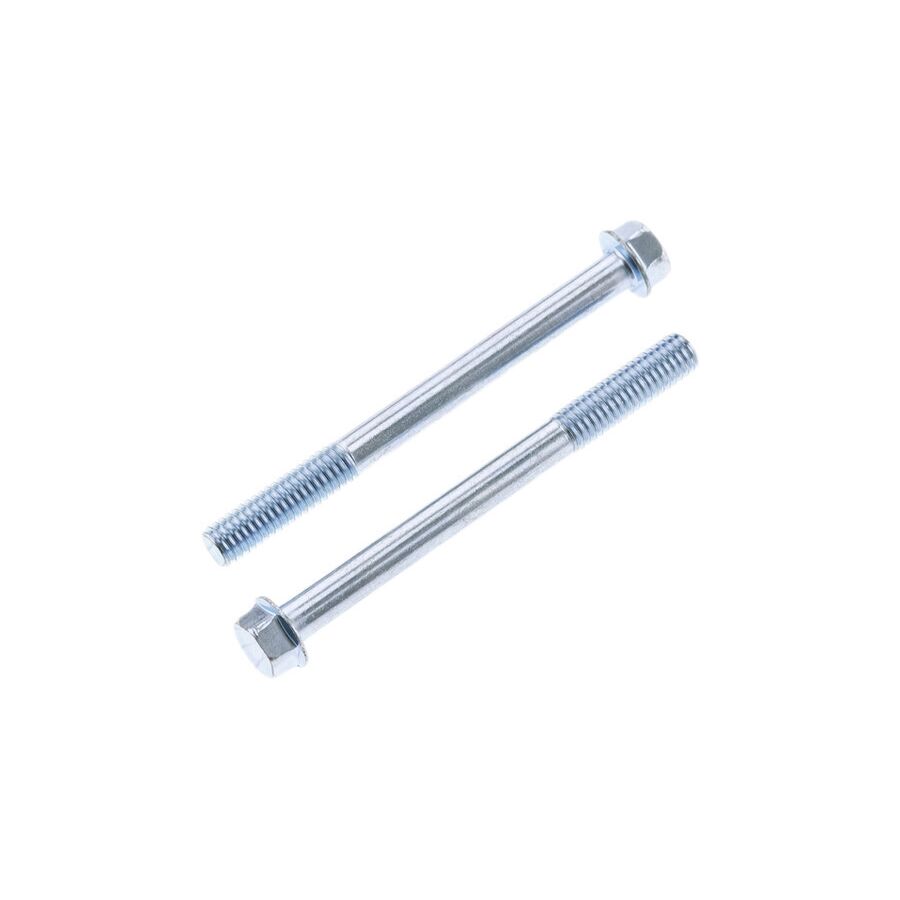

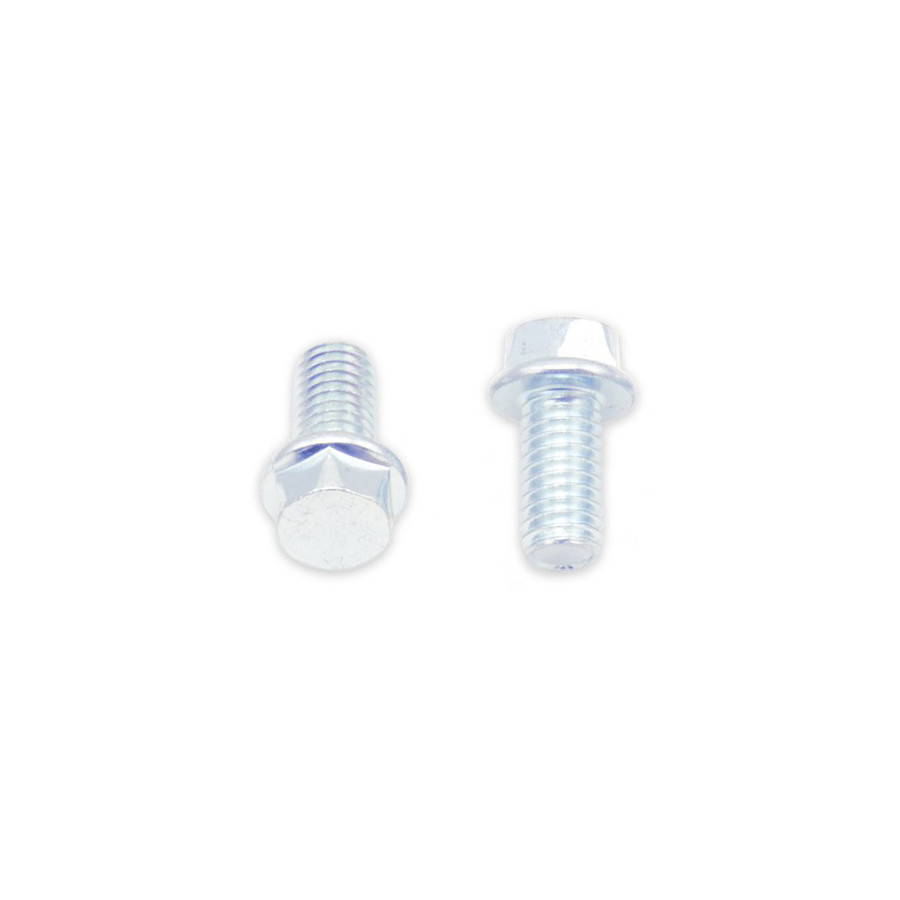

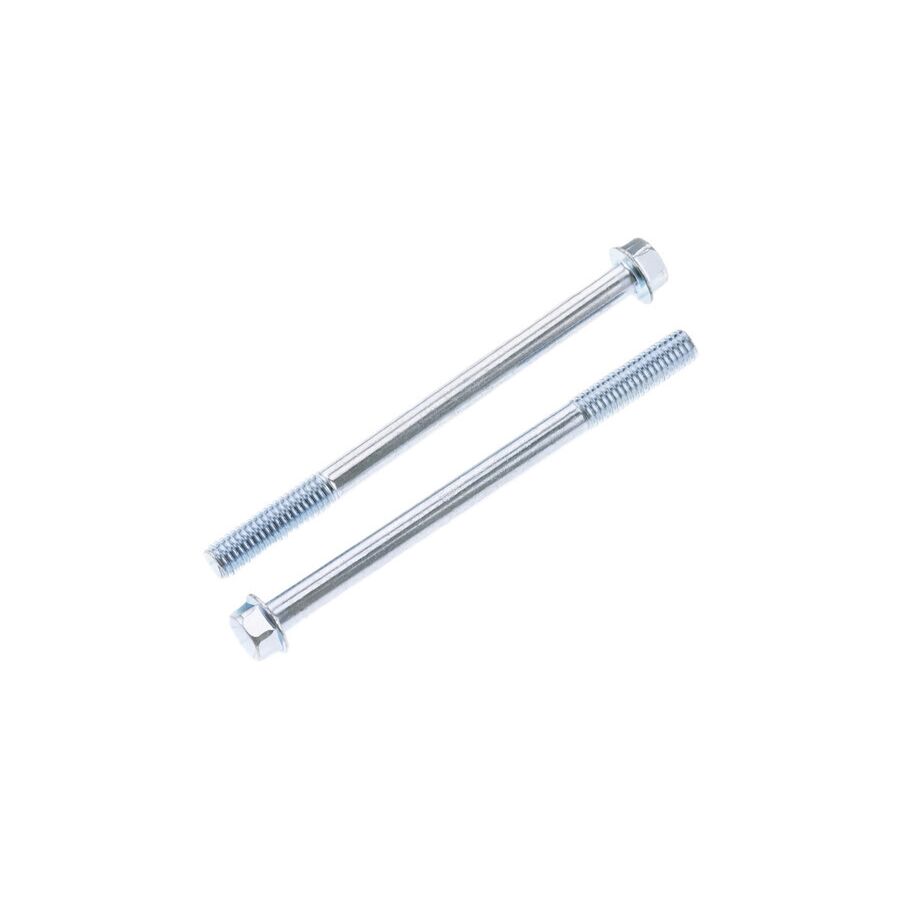

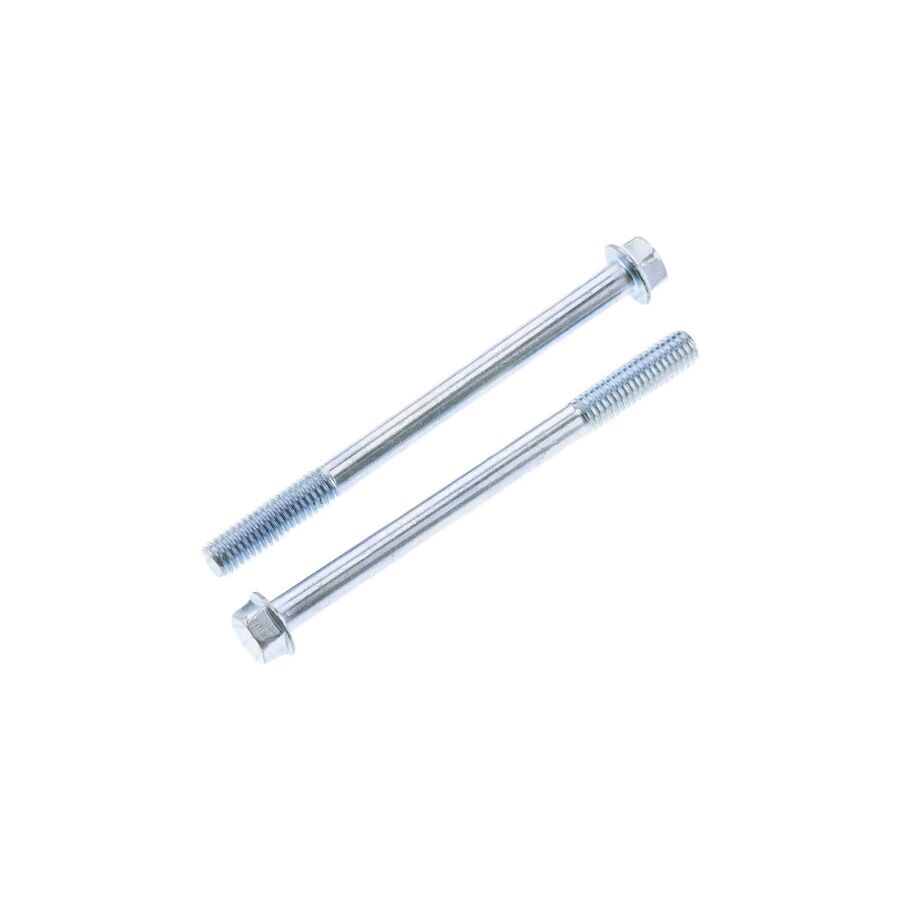

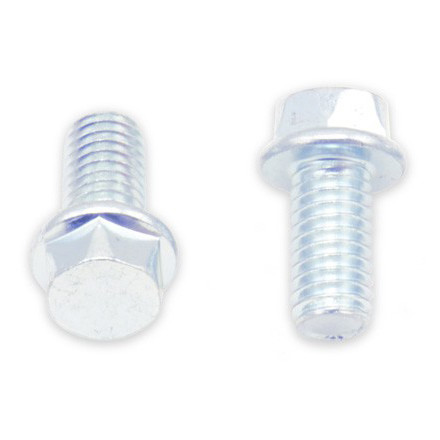

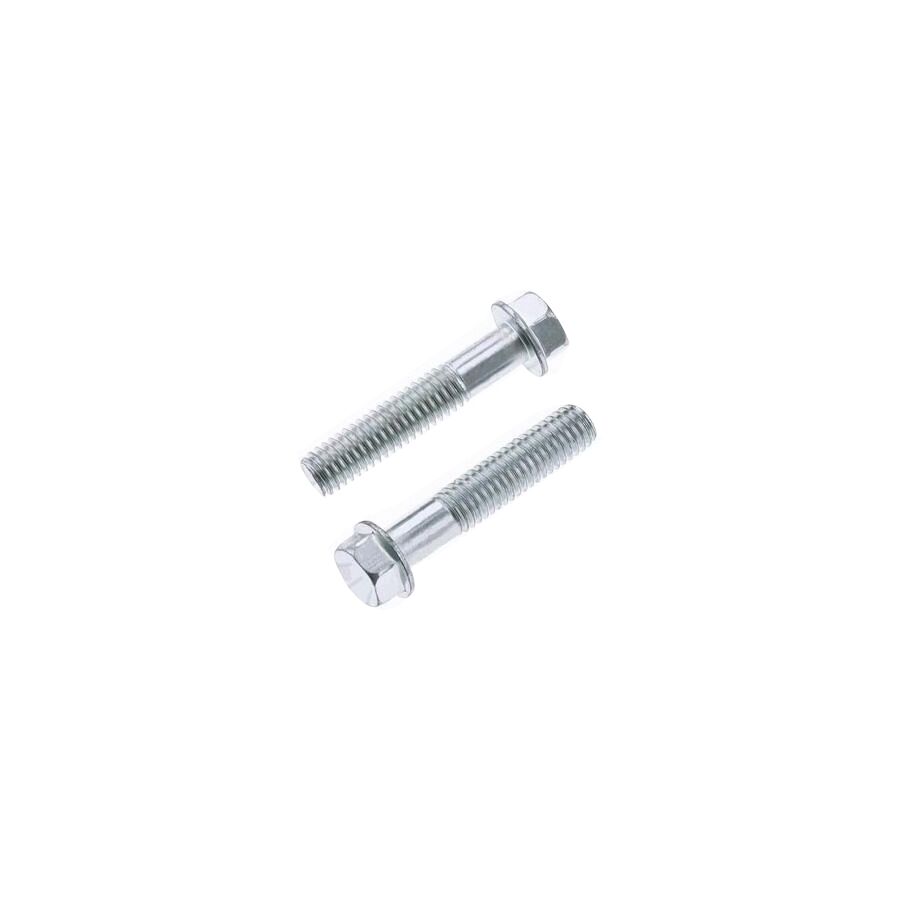

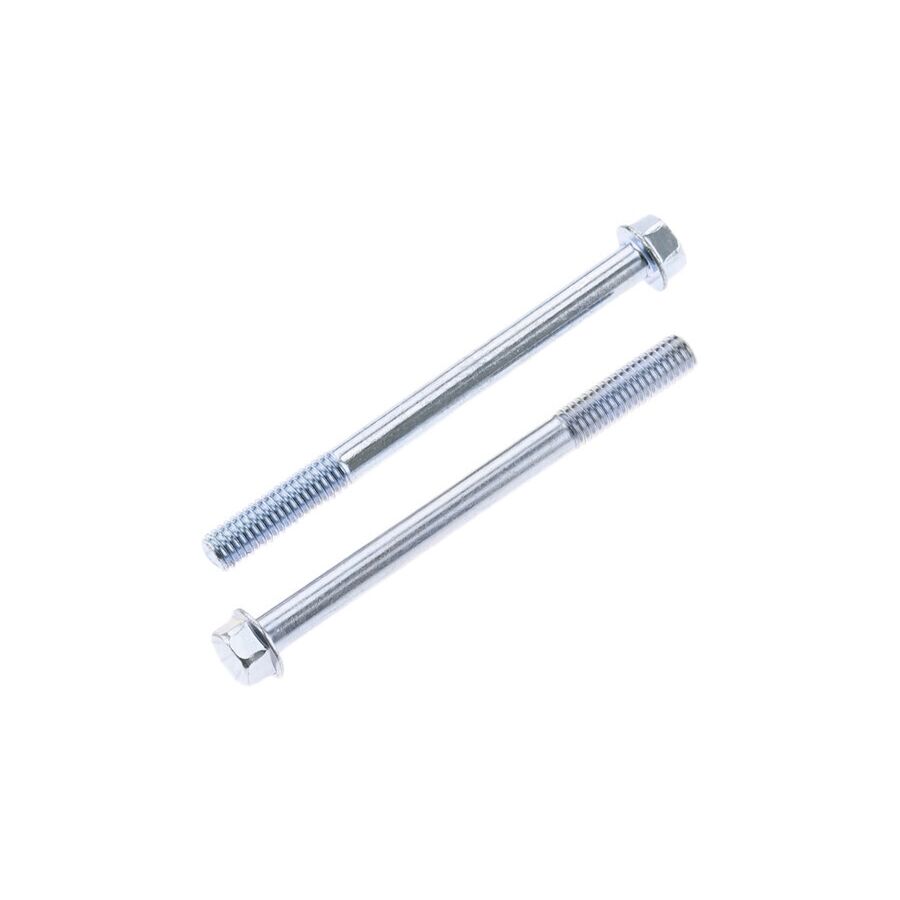

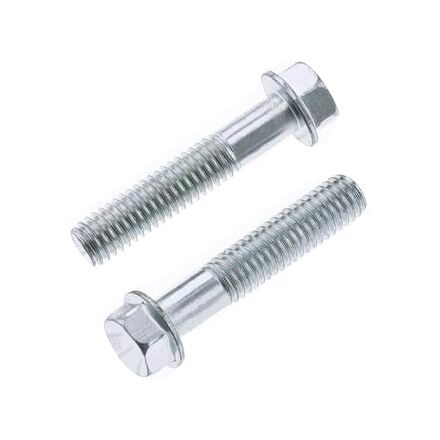

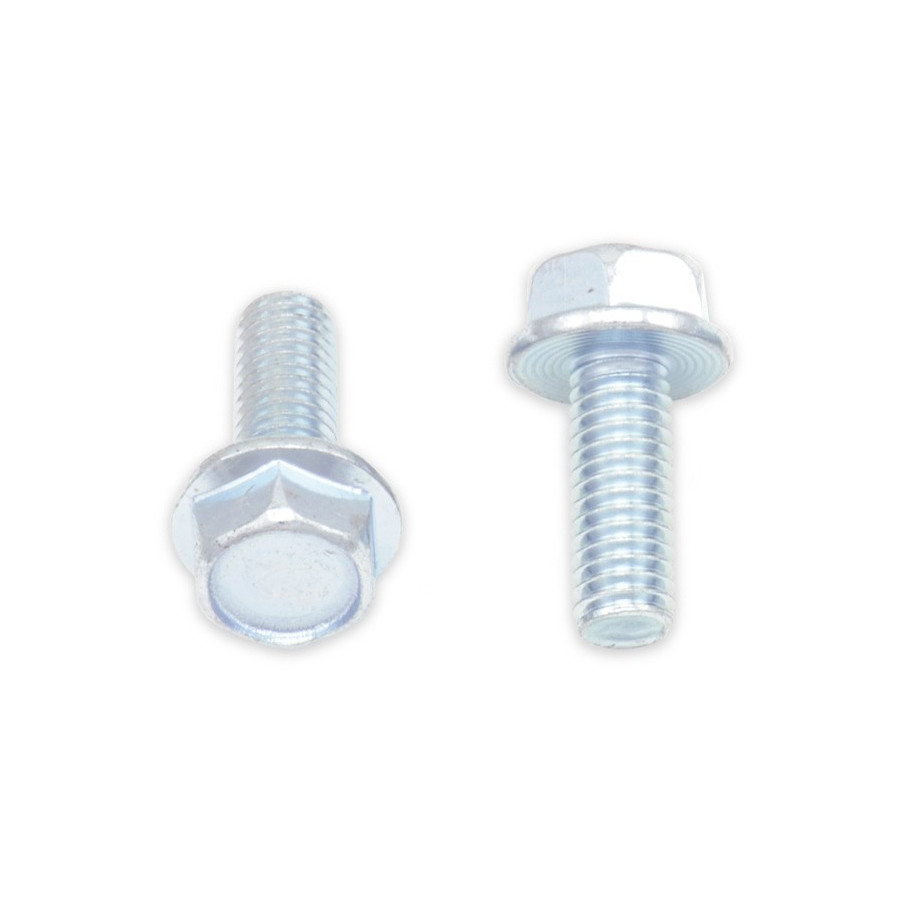

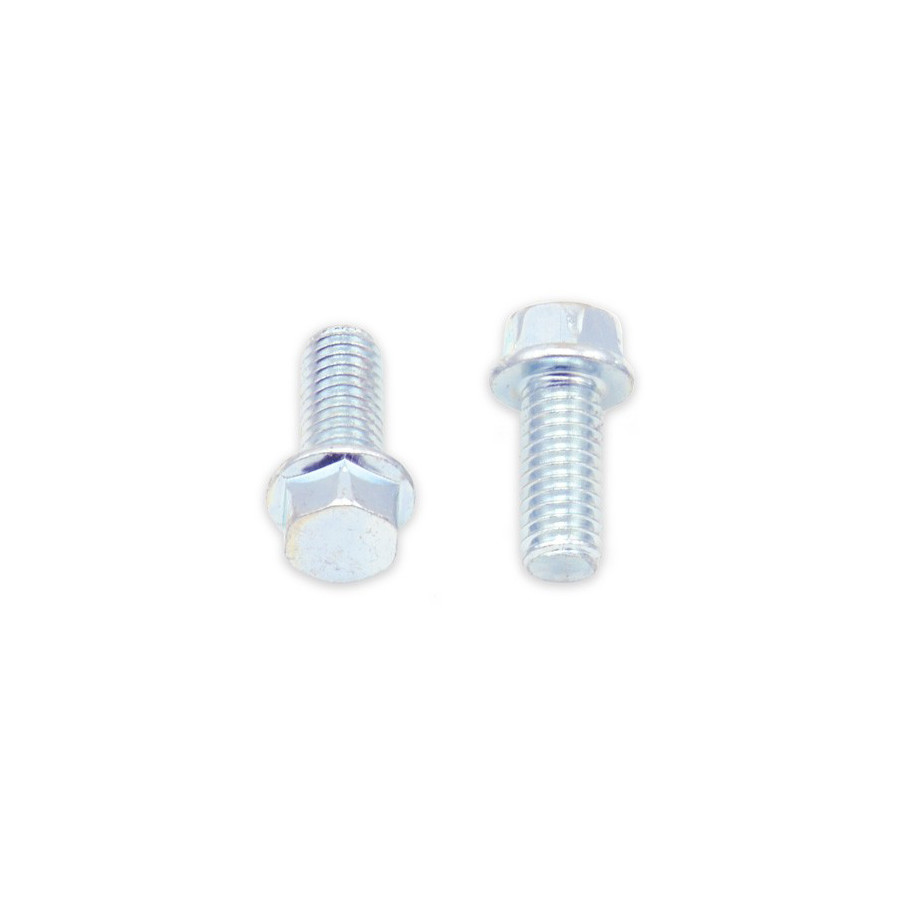

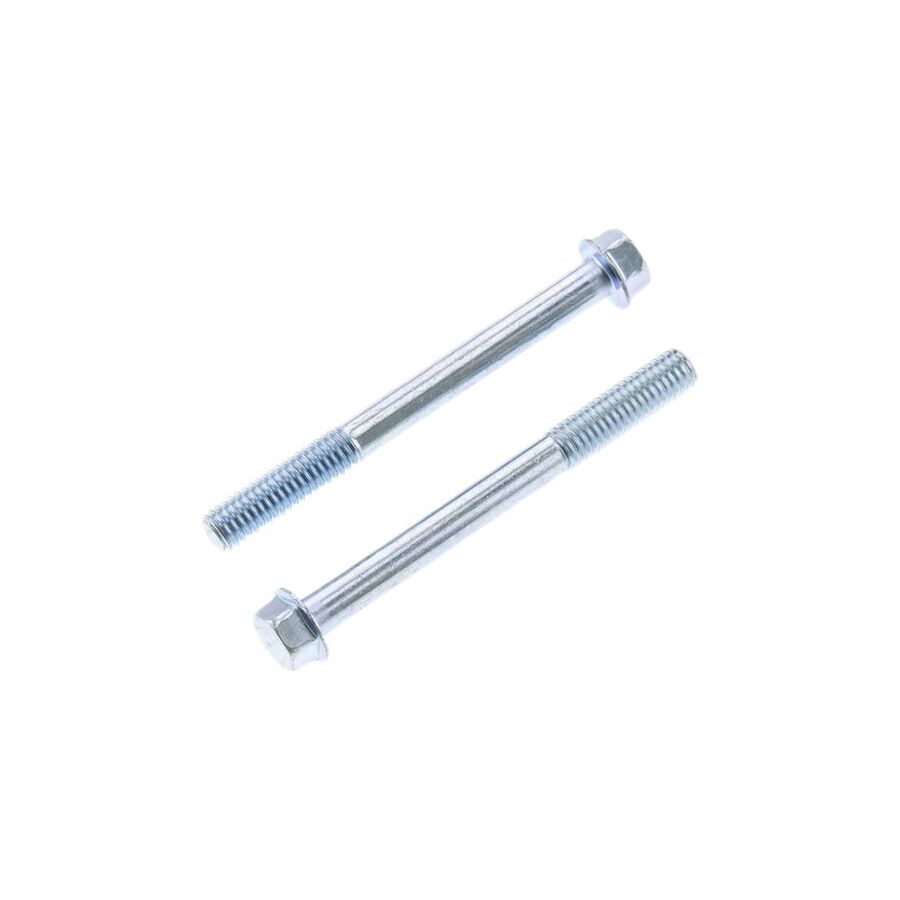

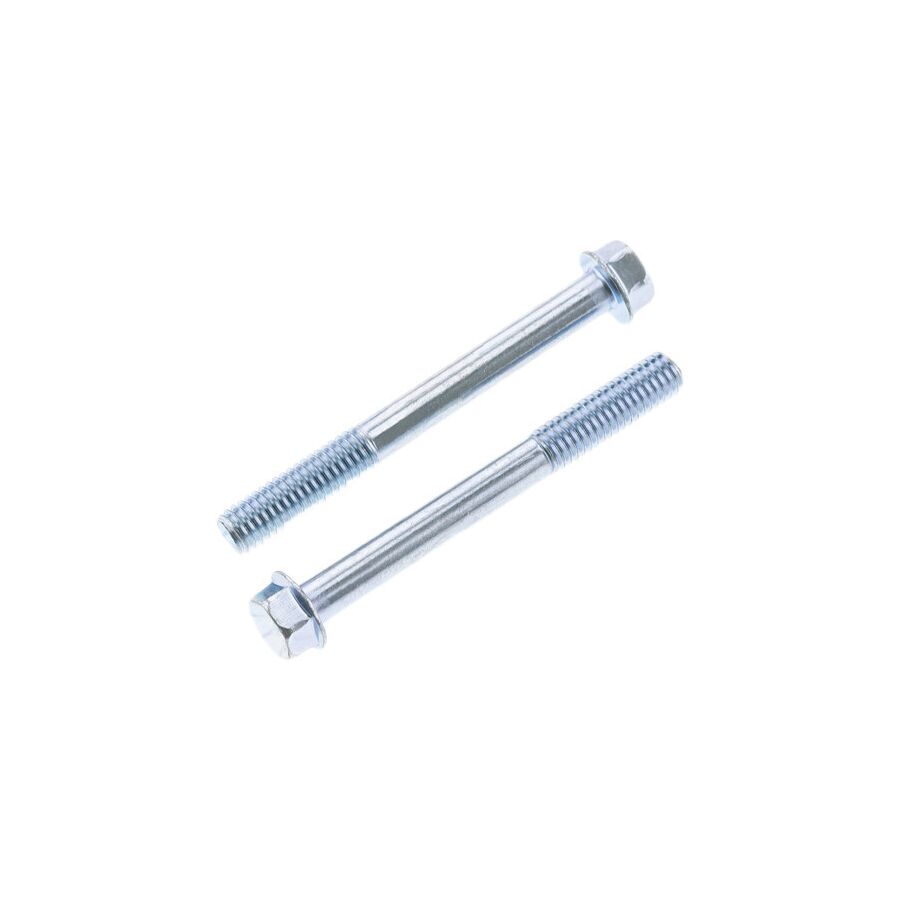

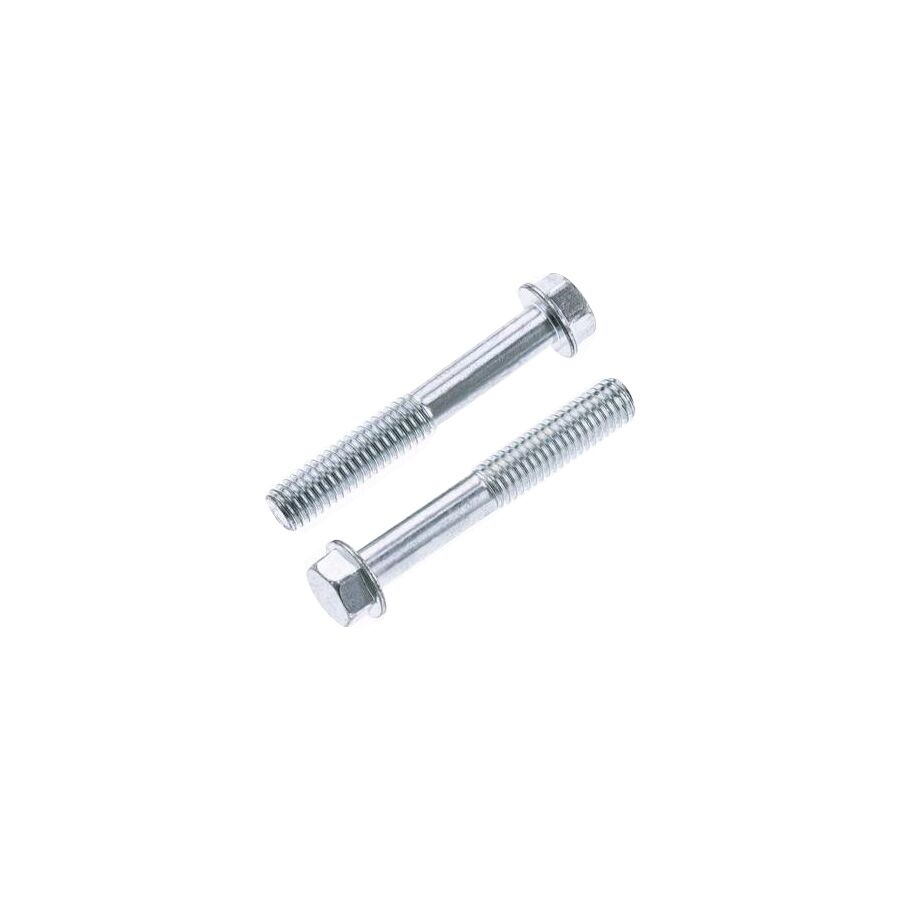

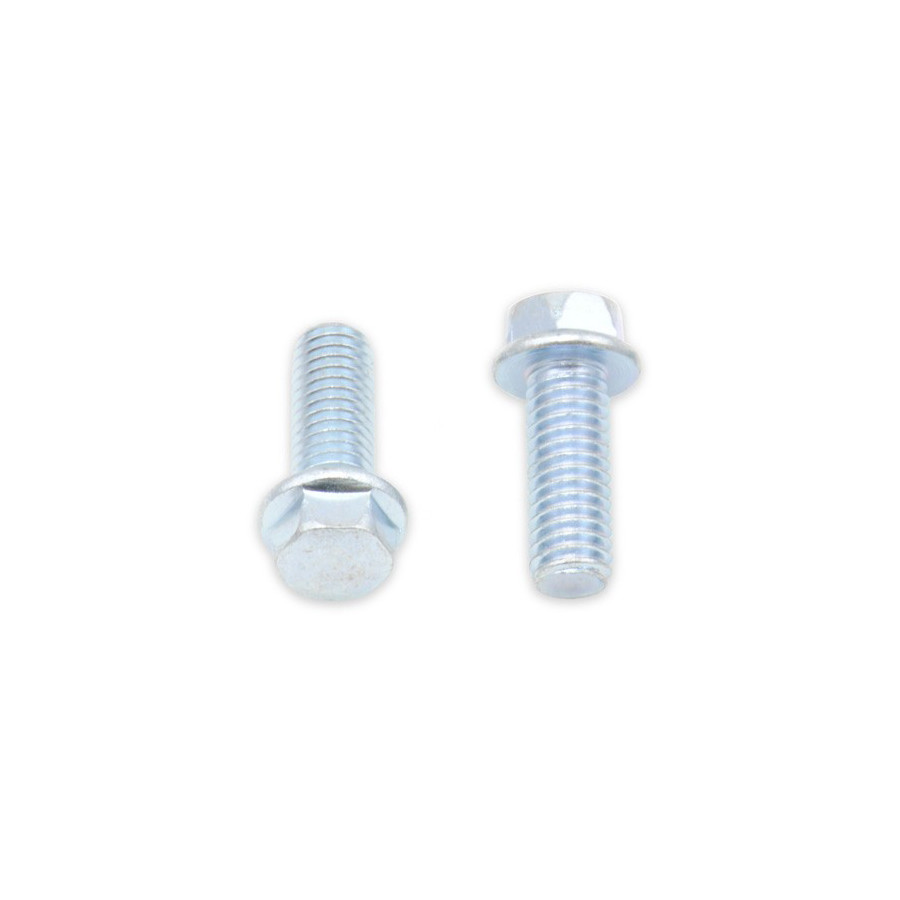

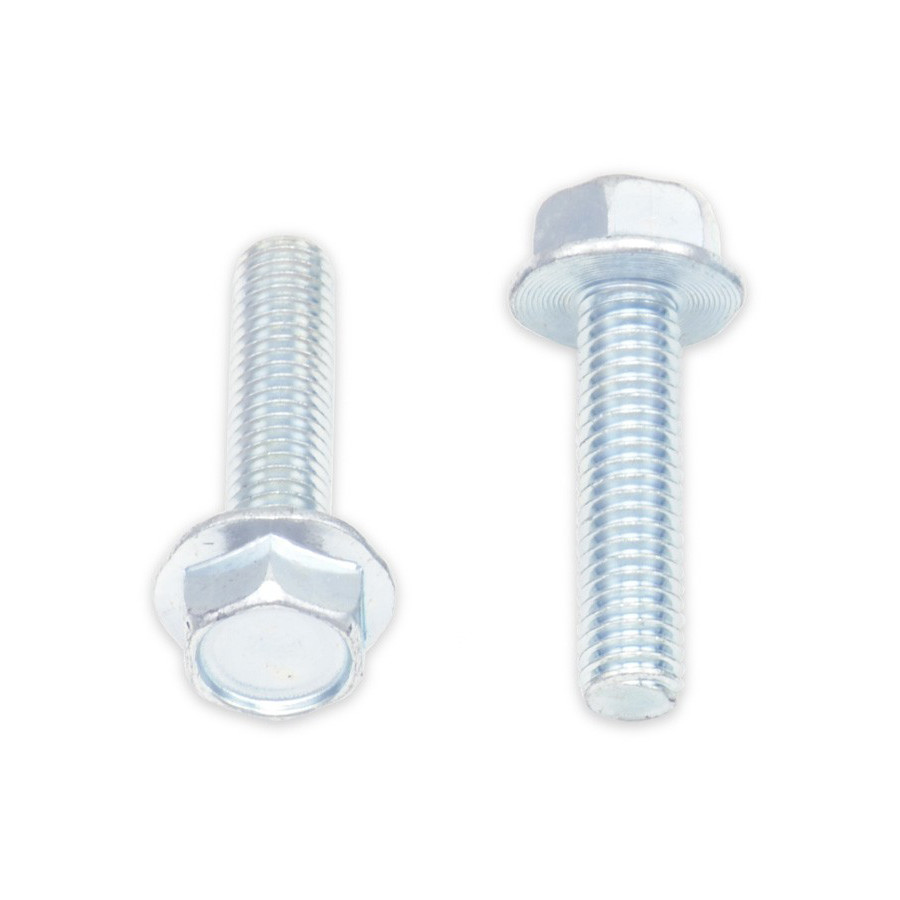

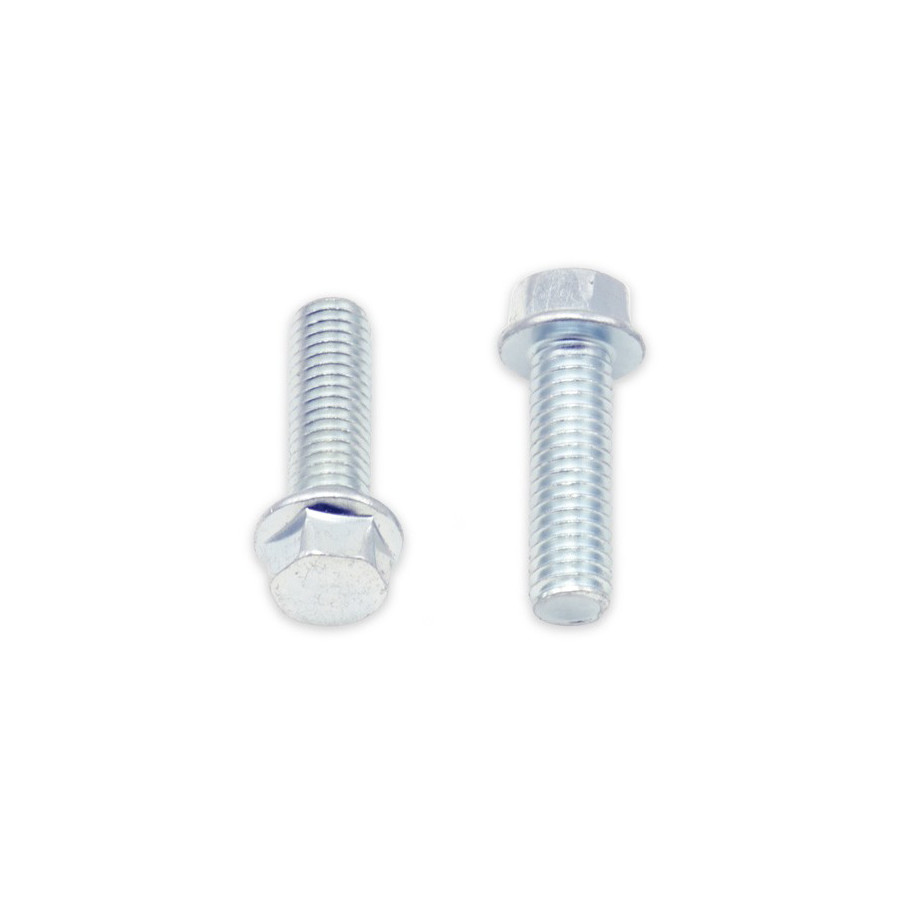

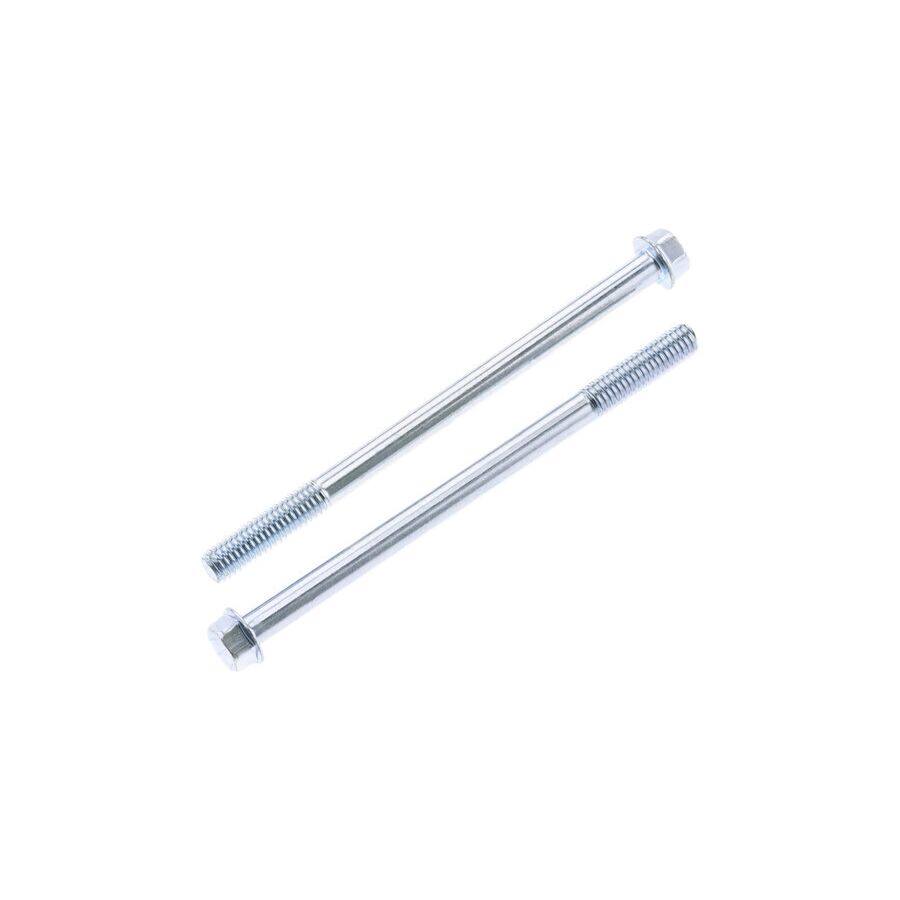

Bolt Metric Hex Head Flange Bolts
Bolt Metric Hex Head Flange Bolts

$2.95 - $4.20

Description See Also: 1 Review 3 Questions Part Numbers
Item #BMH000Y

Read More
1 Review
5 out of 5 stars
5 Star   1 4 Star   0 3 Star   0 2 Star   0 1 Star   0
All Reviews
Ooot MotoSport Staff Verified Purchaser Expert
Over 4 years ago ooot
Won't find these in the hardware store

These are great to keep around as spares and replacements. Often it's cheaper to get a 10-pack of these bolts than it is to order a couple of OEM ones! If you're not sure what size you need, sometimes it's easy to look up the bolt in the OEM diagram and match the description to the dropdown for this product. If it doesn't say there specifically, just remember that when you see the size it works like this: Thread diameter x Thread pitch x Length. Sometimes the thread diameter is not called out explicitly, like "M8x20" because there is generally only one standard thread for that diameter. Other times you might have options and the thread will be shown like this: "M6x1x40". The first number should always be the diameter, last number should be the length in mm.

3 Questions
Answered:   3
Not Yet:   0
Lincoln mace
Q: I am needing case bolts for my 2003 rm 125 I have 1 of the old ones and it is 10mm long which bolts do will I need thanks, Lincoln
Over 8 months ago
Paul
Top 10
Over 8 months ago
A: The correct case bolts for your '03 RM125 are shown in this link: https://www.motosport.com/dirtbike/oem-parts/suzuki/2003/rm125/crankcase
MReag
Q: What size seat bolts 2011 Yamaha 250F
1 year 4 months ago
DaveGearhead
Top 1
1 year 4 months ago
A: The bolt you are inquiring about is a 6 x 100mm bolt with a 1.0 pitch.
At this time, here is the info on the bolt that Yamaha is offering. 90105-06100-00 BOLT, FLANGE
$1.49 each
ryan
Q: What size bolts hold the front sprocket guard on a 16 drz400s
2 years ago
CustomerAccountManager
Top 500 Contributor
2 years ago
A: Here is the O.E.M. part number for the bolts that hold on your front sprocket cover. 01547-0650A their are also washers that go in line with those bolts the parts number for those are 09160-06126.

feel free to give me a call as I am one of the account managers here at Motosport.com

Jason Robbins
Customer Account Manager
503-783-5613
Motosport.com
# Part Numbers
Product Variant Manufacturer Part #
10mm Head / M6x1x12mm - 10 Pack 023-10612
10mm Head / M6x1x16mm - 10 Pack 023-10616
10mm Head / M6x1x20mm - 10 Pack 023-10620
10mm Head / M6x1x25mm - 10 Pack 023-10625
8mm Head / M5x.8x12mm - 10 Pack 024-10512
8mm Head / M6x1x12mm - 10 Pack 024-10612
8mm Head / M6x1x14mm - 10 Pack 024-10614
8mm Head / M6x1x16mm - 10 Pack 024-10616
8mm Head / M6x1x18mm - 10 Pack 024-10618
8mm Head / M6x1x20mm - 10 Pack 024-10620
8mm Head / M6x1x25mm - 10 Pack 024-10625
8mm Head / M6x1x30mm - 10 Pack 024-10630
8mm Head / M6x1x35mm - 10 Pack 024-10635
8mm Head / M6x1x40mm - 10 Pack 024-10640
8mm Head / M6x1x45mm - 10 Pack 024-10645
