# Part Retail Our Price

Stock Status Suggested Quantity
1
4WM-23102-00-00 front fork assy (l.h)
This part is currently unavailable.
2
4WM-23110-00-00 inner tube comp. 1 Retail: $238.99 Price: $191.19

Expected to Ship in 5-8 Days
3
4NK-23126-00-00 tube, outer (left) Retail: $368.99 Price: $291.50

Expected to Ship in 5-8 Days
4
4WM-23141-00-00 spring, front fork Retail: $57.99 Price: $46.97

Expected to Ship in 5-8 Days
5
4WM-23111-00-00 bolt, cap Retail: $61.99 Price: $50.21

Expected to Ship in 5-8 Days
6
4NK-23147-00-00 o-ring Price: $8.61

In Stock
7
4NK-23144-00-00 seal, dust Retail: $21.99 Price: $18.91

Expected to Ship in 5-8 Days
8
34L-23153-00-00 ring, snap Retail: $21.99 Price: $18.91

In Stock
9
4NK-23145-00-00 oil seal Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
10
4NK-23146-00-00 washer, oil seal Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
11
4NK-23125-00-00 metal, slide 1 Retail: $25.99 Price: $22.35

Expected to Ship in 5-8 Days
12
4NK-23157-00-00 ring, piston Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
13
4NK-23151-00-00 spring, rebound Retail: $16.49 Price: $14.18

Expected to Ship in 5-8 Days
14
4WM-23171-00-00 piston, front fork Retail: $58.99 Price: $47.78

Expected to Ship in 5-8 Days
15
4NK-23135-01-00 metal, slide 2 Supersedes: 4NK-23135-00-00 (METAL, SLIDE 2) Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
16
4WM-23166-00-00 spacer, oil lock Retail: $19.49 Price: $16.76

Expected to Ship in 5-8 Days
17
3MA-23163-10-00 gasket, drain plug Supersedes: 3MA-23129-10-00 (GASKET, DRAIN PLUG) Price: $10.91

Expected to Ship in 5-8 Days
18
4NK-23181-00-00 bolt, hexagon socket head Price: $8.61

In Stock
19
4NK-23193-00-00 guide, boot Retail: $22.99 Price: $19.77

Expected to Ship in 5-8 Days
20
4WM-23103-00-00 front fork assy (r.h) Retail: $656.99 Price: $569.18

Expected to Ship in 5-8 Days
21
4WM-23110-00-00 inner tube comp. 1 Retail: $238.99 Price: $191.19

Expected to Ship in 5-8 Days
22
4NK-23136-00-00 tube, outer (right) Retail: $365.99 Price: $289.13

Expected to Ship in 5-8 Days
23
4WM-23141-00-00 spring, front fork Retail: $57.99 Price: $46.97

Expected to Ship in 5-8 Days
24
4WM-23111-00-00 bolt, cap Retail: $61.99 Price: $50.21

Expected to Ship in 5-8 Days
25
4NK-23147-00-00 o-ring Price: $8.61

In Stock
26
4NK-23144-00-00 seal, dust Retail: $21.99 Price: $18.91

Expected to Ship in 5-8 Days
27
34L-23153-00-00 ring, snap Retail: $21.99 Price: $18.91

In Stock
28
4NK-23145-00-00 oil seal Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
29
4NK-23146-00-00 washer, oil seal Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
30
4NK-23125-00-00 metal, slide 1 Retail: $25.99 Price: $22.35

Expected to Ship in 5-8 Days
31
4NK-23157-00-00 ring, piston Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
32
4NK-23151-00-00 spring, rebound Retail: $16.49 Price: $14.18

Expected to Ship in 5-8 Days
33
4WM-23171-00-00 piston, front fork Retail: $58.99 Price: $47.78

Expected to Ship in 5-8 Days
34
4NK-23135-01-00 metal, slide 2 Supersedes: 4NK-23135-00-00 (METAL, SLIDE 2) Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
35
4WM-23166-00-00 spacer, oil lock Retail: $19.49 Price: $16.76

Expected to Ship in 5-8 Days
36
3MA-23163-10-00 gasket, drain plug Supersedes: 3MA-23129-10-00 (GASKET, DRAIN PLUG) Price: $10.91

Expected to Ship in 5-8 Days
37
4NK-23181-00-00 bolt, hexagon socket head Price: $8.61

In Stock
38
4NK-23193-00-00 guide, boot Retail: $22.99 Price: $19.77

Expected to Ship in 5-8 Days
39
91314-08035-00 bolt, hexagon socket head Supersedes: 1TP-2311H-00-00 (BOLT, HEXAGON SOCKET HEAD) Price: $3.11

In Stock
40
4WM-23340-01-00 under bracket comp. Supersedes: 4WM-23340-00-00 (UNDER BRACKET COMP.) Retail: $468.99 Price: $378.92

Expected to Ship in 5-8 Days
41
91317-08030-00 bolt Supersedes: 90110-08155-00 (BOLT) Price: $10.91

In Stock
42
4NK-23181-10-00 bolt, hexagon socket head Price: $5.12

Expected to Ship in 5-8 Days
43
4WM-23123-00-00 cover, under 1 Retail: $167.99 Price: $134.39

Expected to Ship in 5-8 Days
44
4NK-23121-00-00 cover, upper 1 Retail: $239.99 Price: $191.99

Expected to Ship in 5-8 Days
45
4NK-23163-00-00 gasket Retail: $33.99 Price: $29.23

Expected to Ship in 5-8 Days
46
4NK-23165-00-00 washer, felt Retail: $18.99 Price: $16.33

Expected to Ship in 5-8 Days
47
4WM-25876-00-00 holder, brake hose 2 Retail: $25.99 Price: $22.35

Expected to Ship in 5-8 Days
48
4WM-25887-00-00 holder, brake hose Retail: $34.99 Price: $30.09

Expected to Ship in 5-8 Days
49
4KM-23123-01-00 cover, under 1 Retail: $15.49 Price: $13.32

Expected to Ship in 5-8 Days

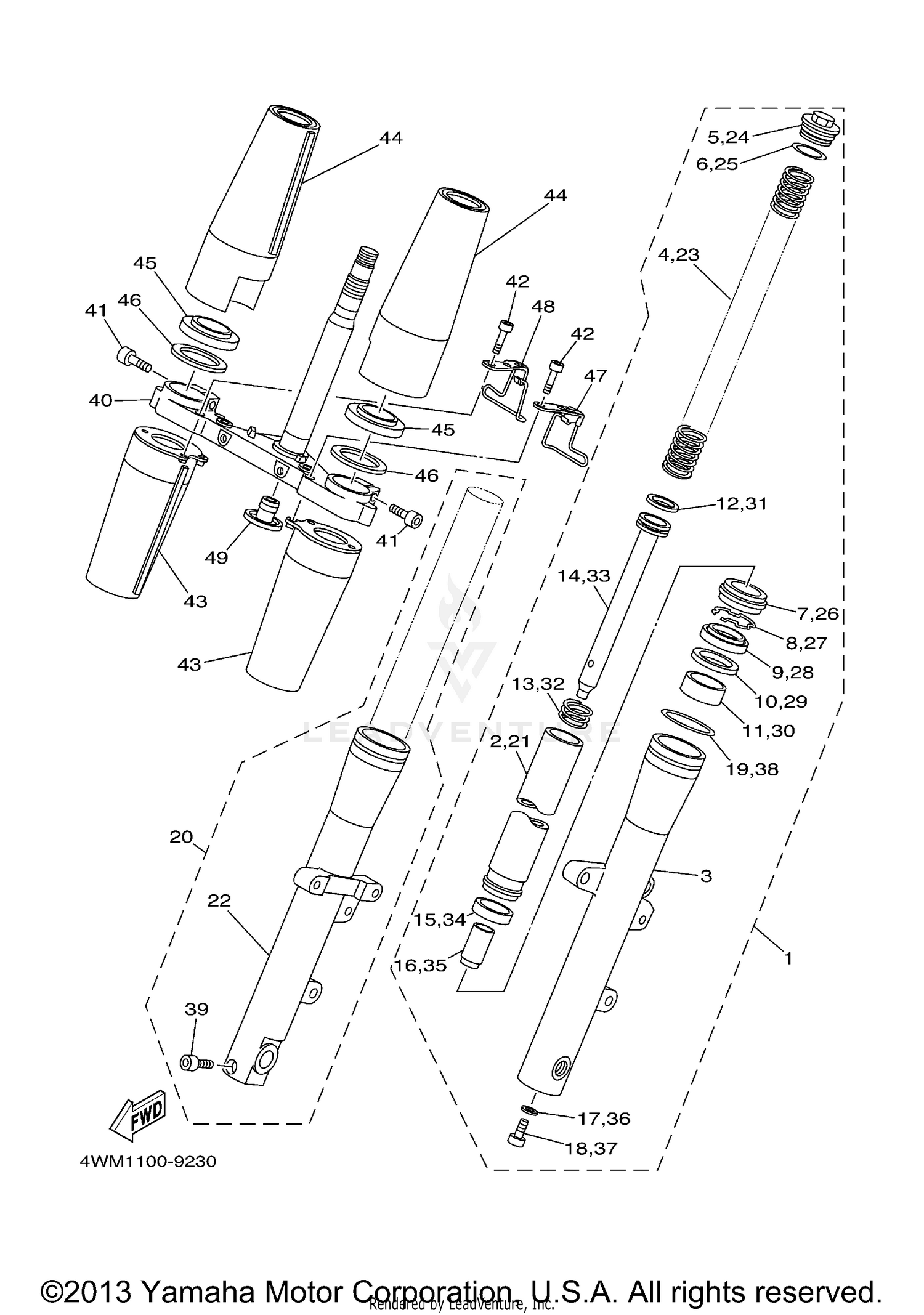

2004 YAMAHA ROAD STAR 1700 - XV17A FRONT FORK
