Kibblewhite Cylinder Head Service Kit

• Product Details

  Cylinder Head Service Kit.

  KPMI is proud to introduce full CYLINDER HEAD SERVICE KITS. These kits contain all items to completely refresh and upgrade cylinder heads for popular Dirt / MX and Side x Side models with KPMI's top quality racing valvetrain components.

  Features:

  • Save time money on your next cylinder head rebuild.
  • One package, everything you need for factory recommended valvetrain service.
  • Double your service life over O.E.M. using KPMI Valvetrain products.
  • Kitted with value added savings.

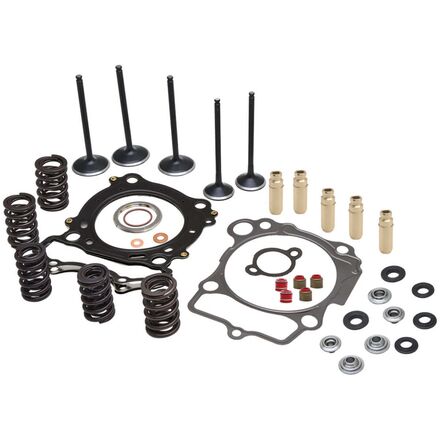

  Kit Includes:

  • Dual Spring Titanium Retainer Spring Kit, which allows for increased valve lift.
  • Top End Gasket Kit by Cometic.
  • KPMI C630 \ C674 Bronze Standard Valve Guides.
  • KPMI S.S. Black \ White Diamond Valves, stock head diameter.

  Notes:

  It is important to use the valve stem seals included in the KPMI labeled bags. These valve stem seals are designed for specific compatibility with the KPMI spring kit. The COMETIC gasket kit may contain additional valve stem seals, however, these should NOT be used with the KPMI spring kit and can be discarded. The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.

  Detailed Specifications:

  • Type: Intake / Exhaust.
  • Retainer Material: Titanium .
  • Valve Lift: 0.350".
  • Installed Height: 1.320".
  • Seat Pressure: 45#.
  • Open Pressure: 143#.
  • @ Lift: 0.350".
  • Valve Type: Intake / Exhaust.
  • Valve Material: Black Diamond Stainless.
  • Coating: Black Nitroneg.
  • Intake Head Diameter: 26.00 mm / 1.024".
  • Intake Stem Diameter: 0.1765".
  • Intake Tulip: 19.
  • Intake Overall Length: 3.065".
  • Exhaust Head Diameter: 22.00 mm / 0.886".
  • Exhaust Stem Diameter: 0.1760".
  • Exhaust Tulip : 19.
  • Exhaust Overall Length: 3.145".
  • Remarks: Standard.
  • Guide Type: Intake / Exhaust.
  • Guide Material: C630 Bronze.
  • Reference: See Figure 1.
  • Intake Outside Dia.: (G): 0.3566" / Std.
  • Intake (A): ---.
  • Intake (B): 0.550".
  • Intake (C): 0.570".
  • Intake (D): 0.710".
  • Intake (E): ---.
  • Intake (F): 0.1765".
  • Exhaust Outside Dia.: (G): 0.3966" / Std.
  • Exhaust (A): ---.
  • Exhaust (B): 0.790".
  • Exhaust (C): 0.600".
  • Exhaust (D): 0.710".
  • Exhaust (E): ---.
  • Exhaust (F): 0.1760".
