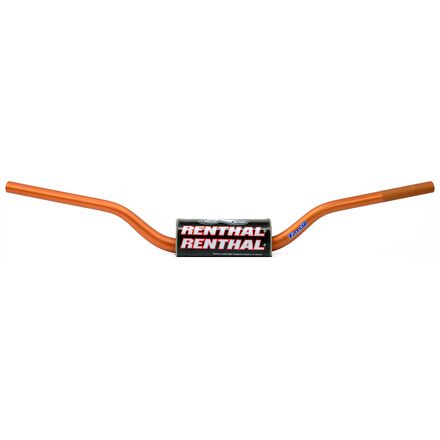

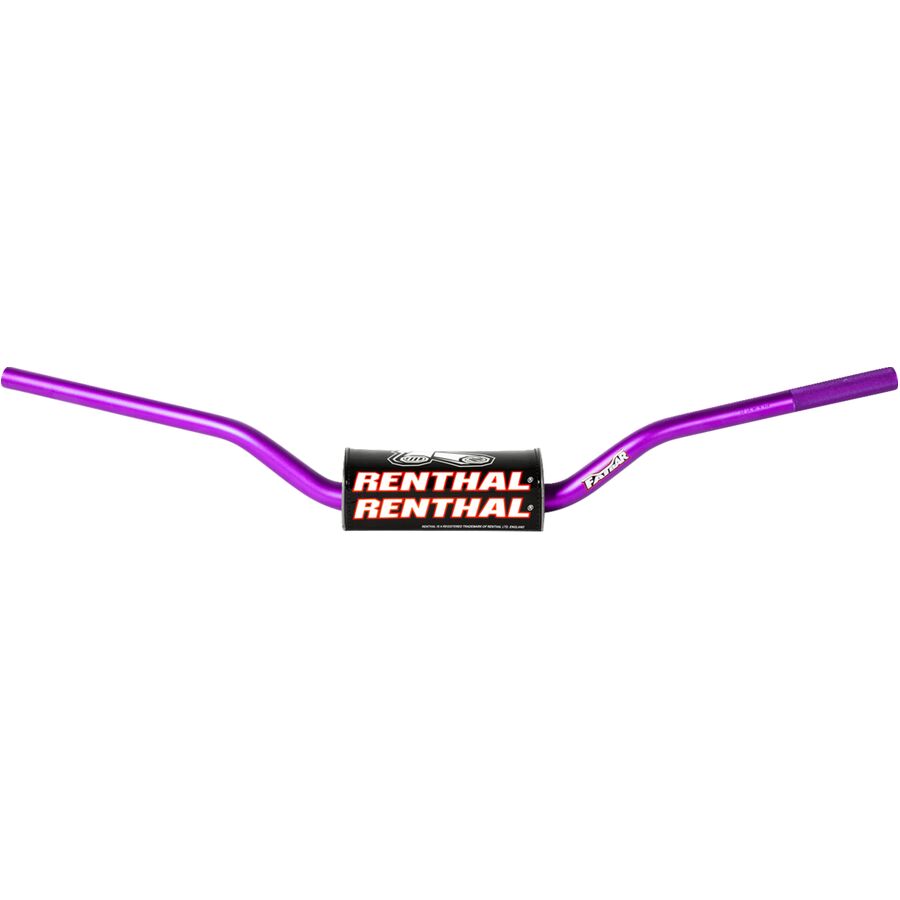

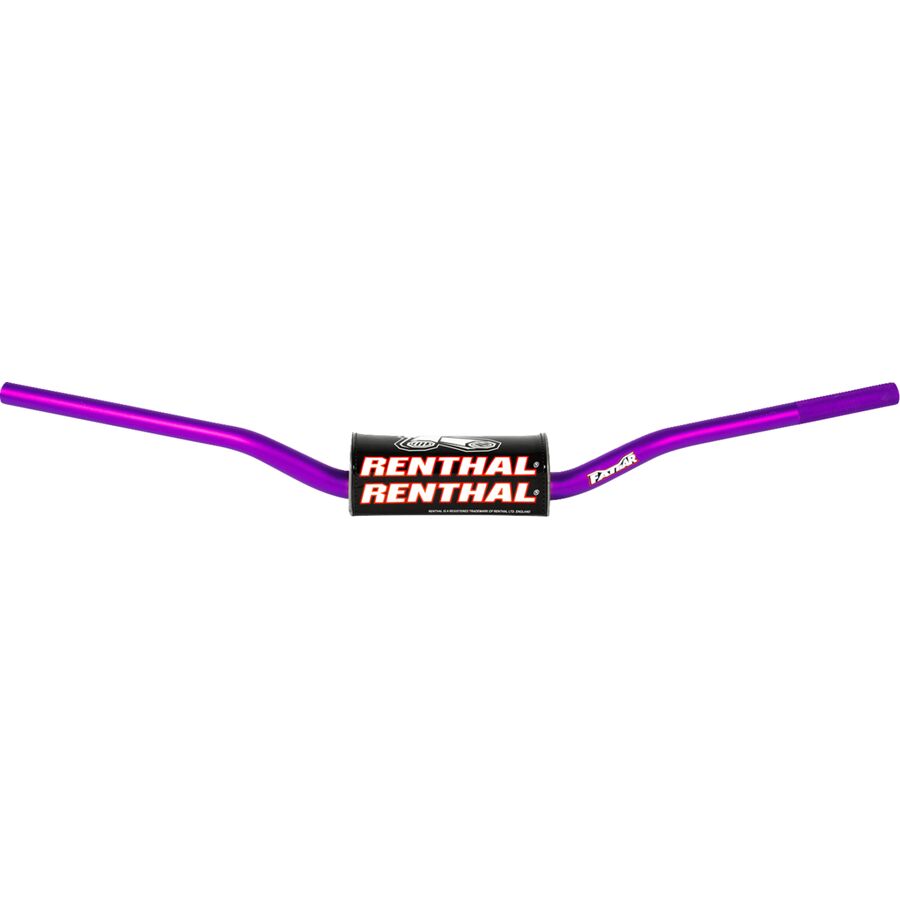

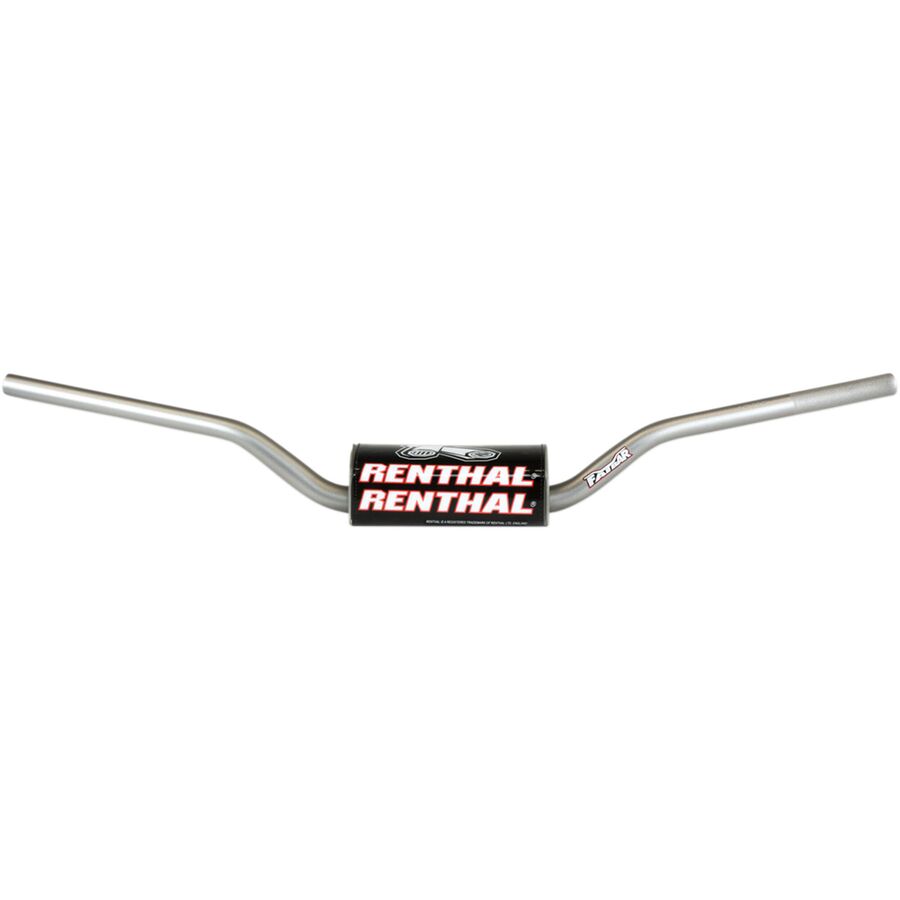

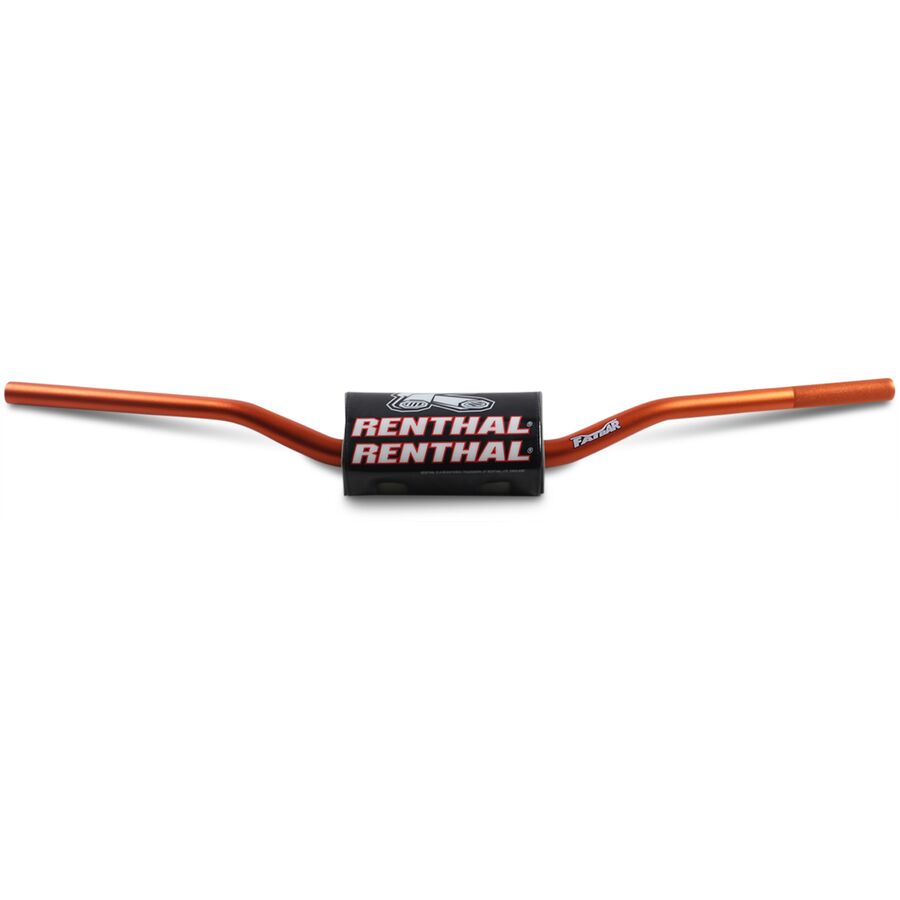

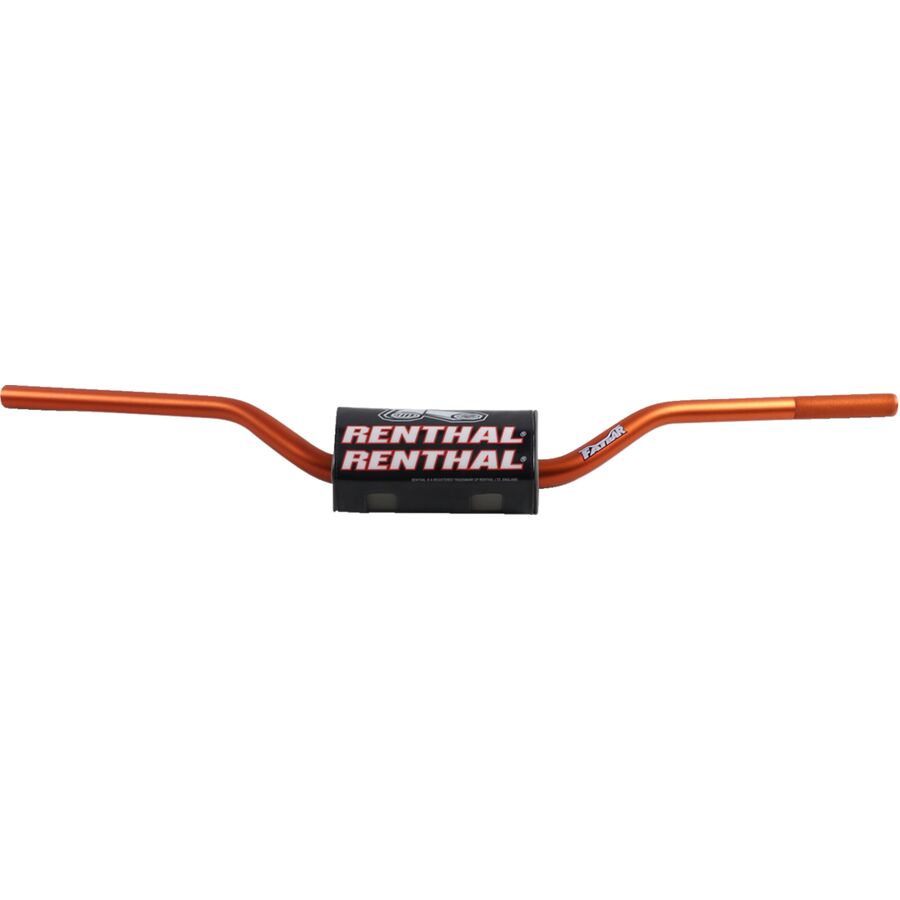

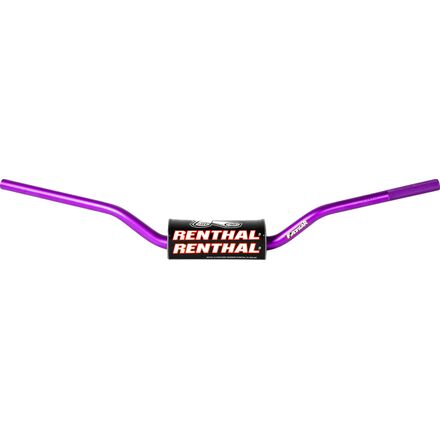

Renthal Fat Bar - Oversized 1-1/8

$89.99
$80.99 (10% off)
4.70 out of 5 stars

This Purchase Qualifies For:


  • Description
  • Reviews (53)
  • Q&A (54)
  • Sizing Chart

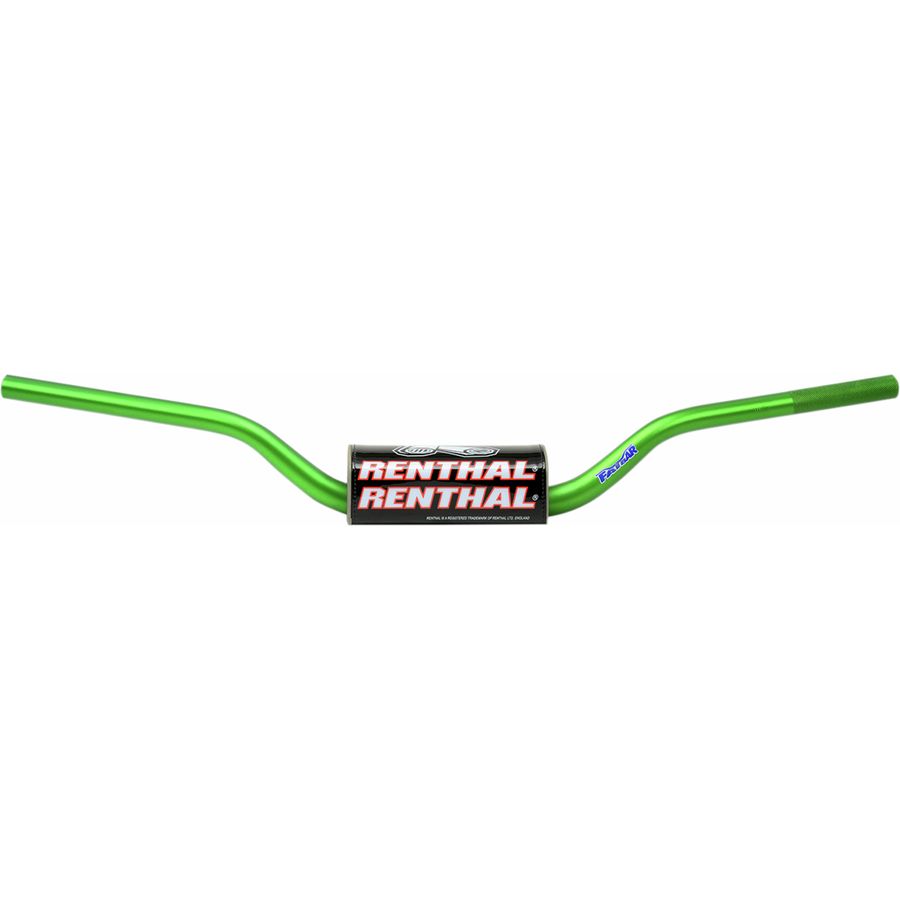

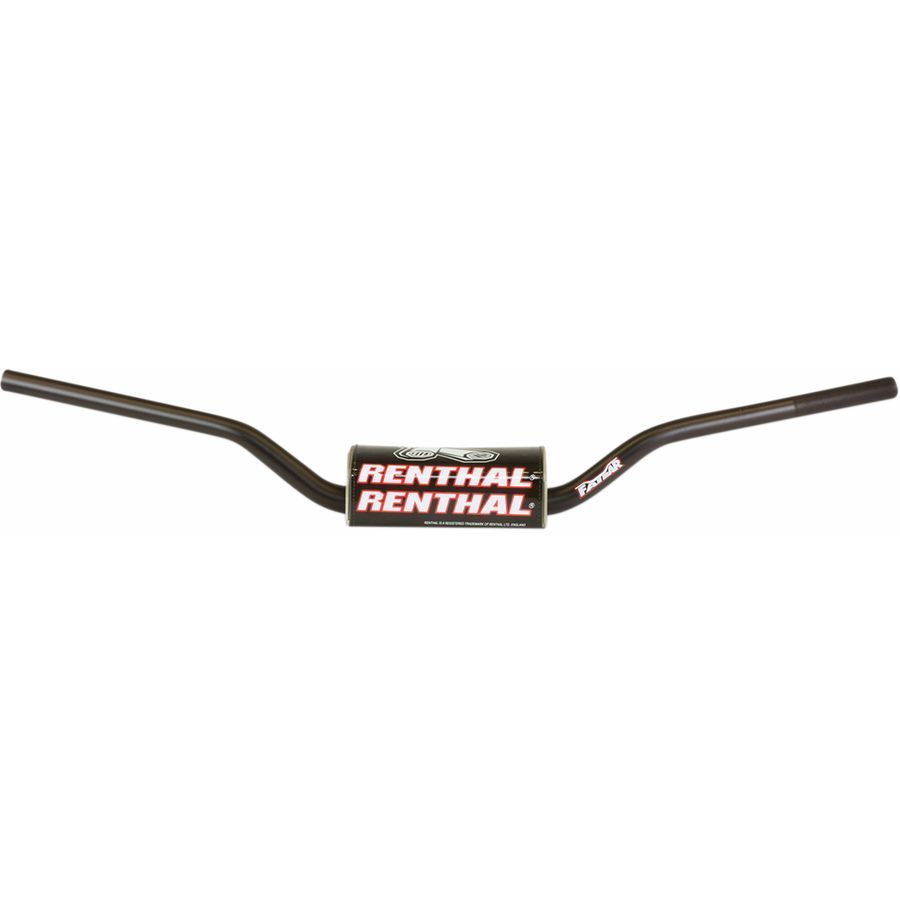

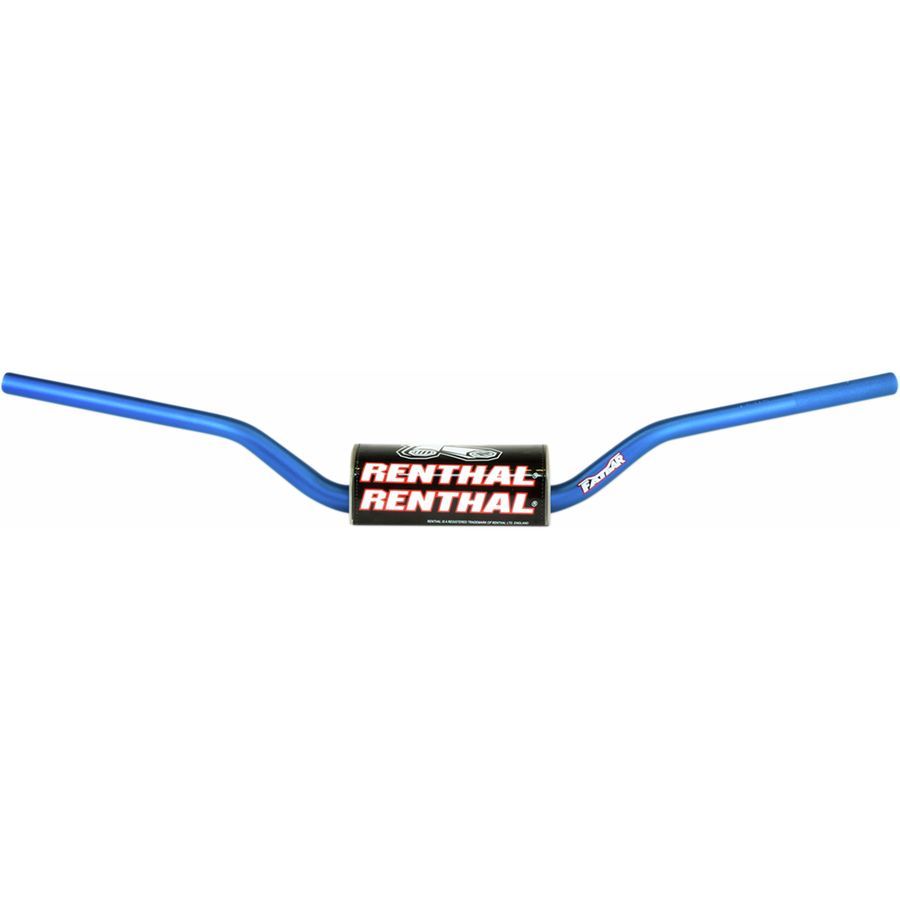

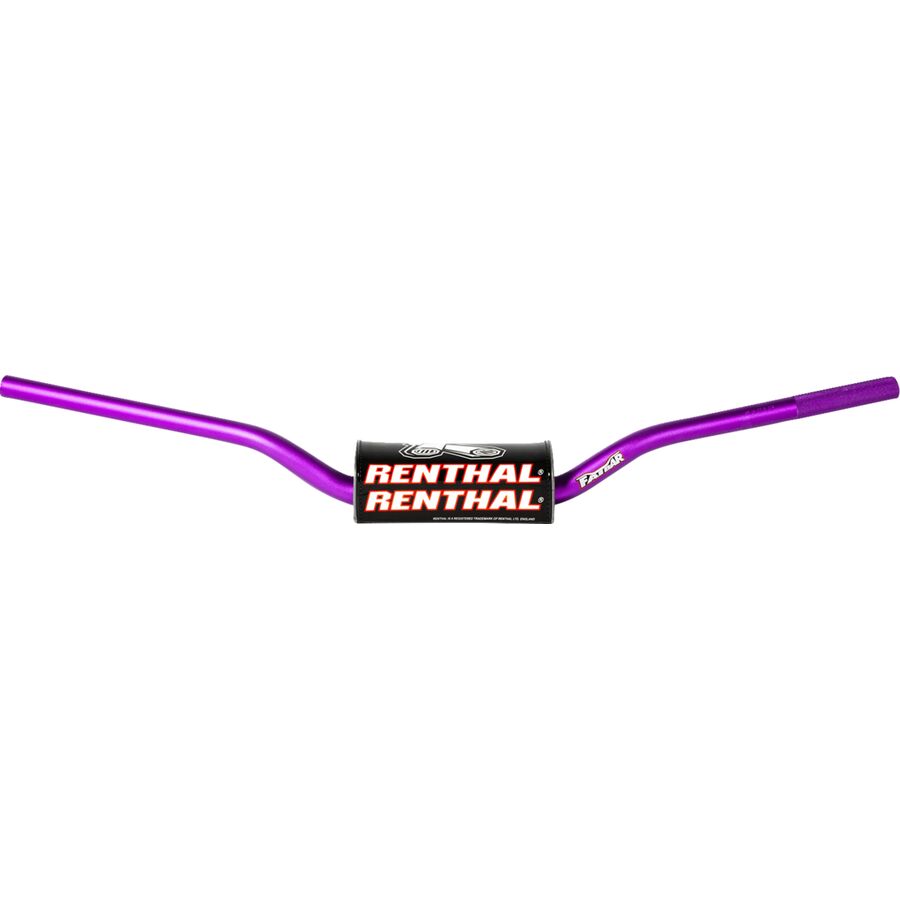

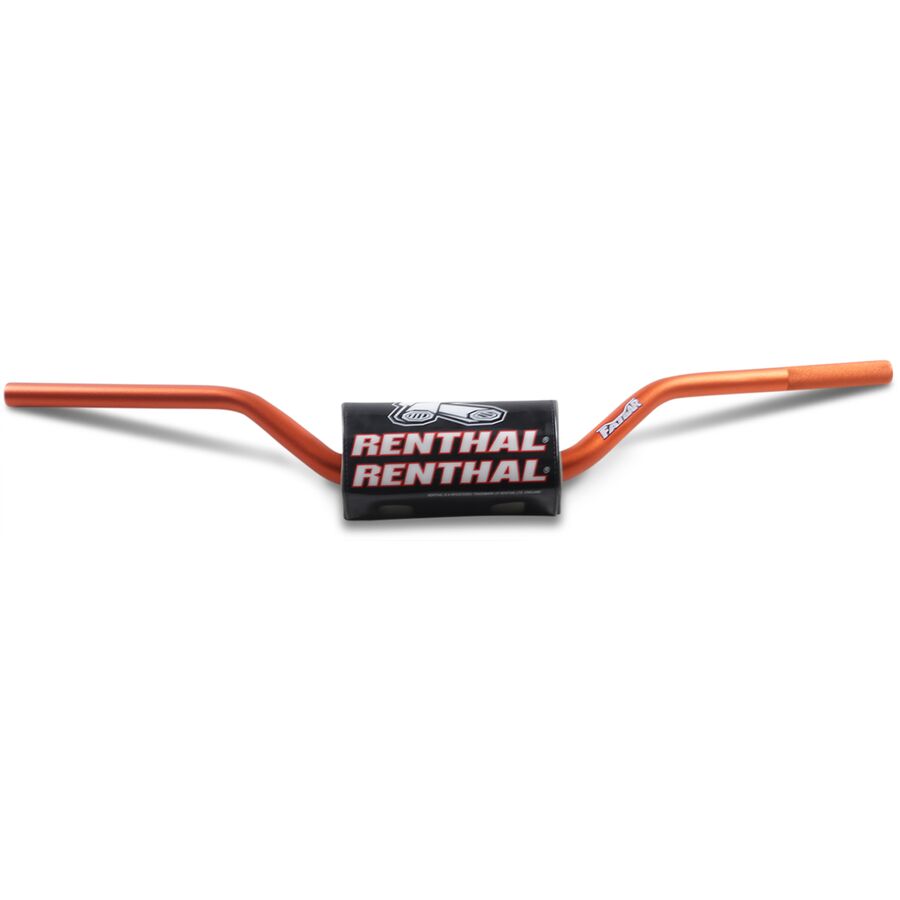

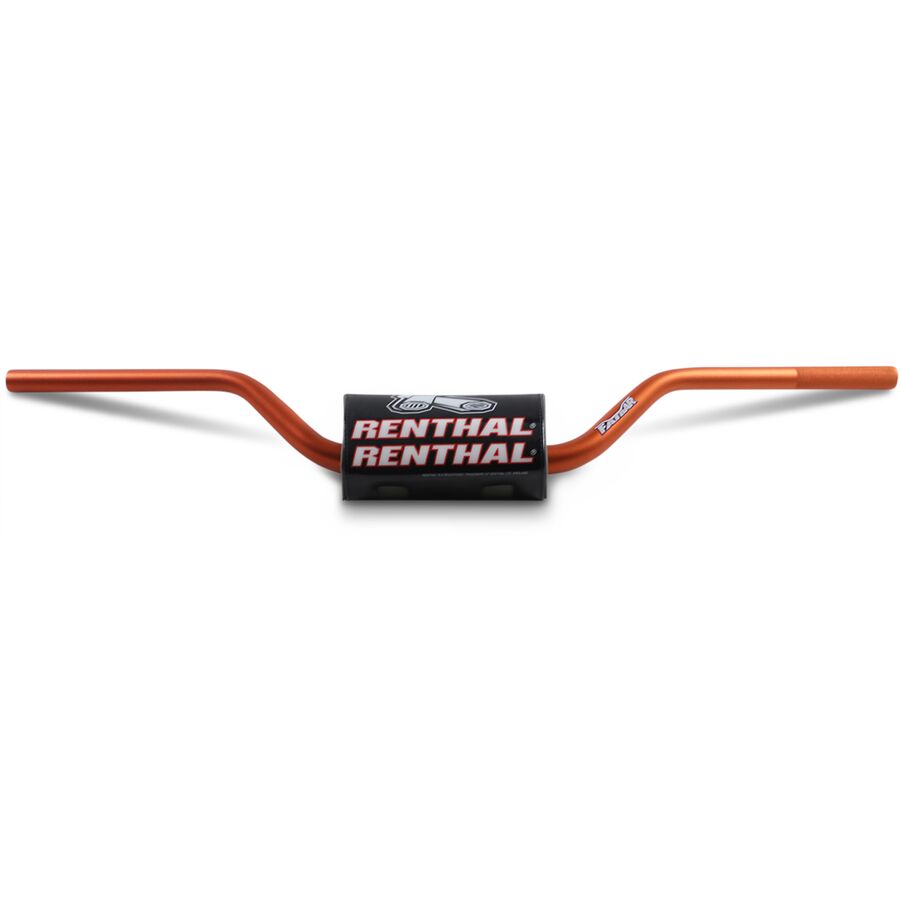

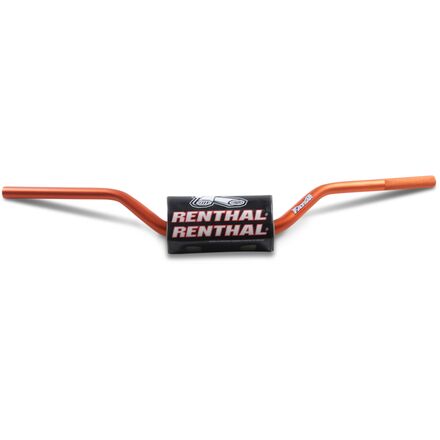

The Renthal Fatbar® features a tapered outer wall resulting in a 1-1/8" (28.6 mm) clamping diameter and 7/8" diameter at the control ends. This profiled wall and braceless design combines excellent strength with good flexibility. KTM and Suzuki have chosen the Renthal Fatbar® as the ultimate braceless handlebar and fit them as original equipment where this design is preferred within their range.

  • 1-1/8" (28.6 mm) large diameter clamping area.
  • 5 mm wall thickness at the bends is used to increase strength.
  • Tapered wall construction to 7/8" (22.2 mm) allows fitment of standard grips and controls.
  • Braceless design.
  • 7010 T6 aluminum - Renthal has exclusive rights to this specifically developed alloy designed for the manufacture of handlebars.
  • Shot peened surface finish to help prevent fatigue failure.
  • Knurled grip area increases bonding between bars and grips.
  • No knurling in clamp area, this could cause stress on the riser and lead to fatigue failure.
  • Anodizing - a 15 step anodizing process forms an integral coating giving protection against corrosion.
  • Laser-etched positioning grid to ease installation.

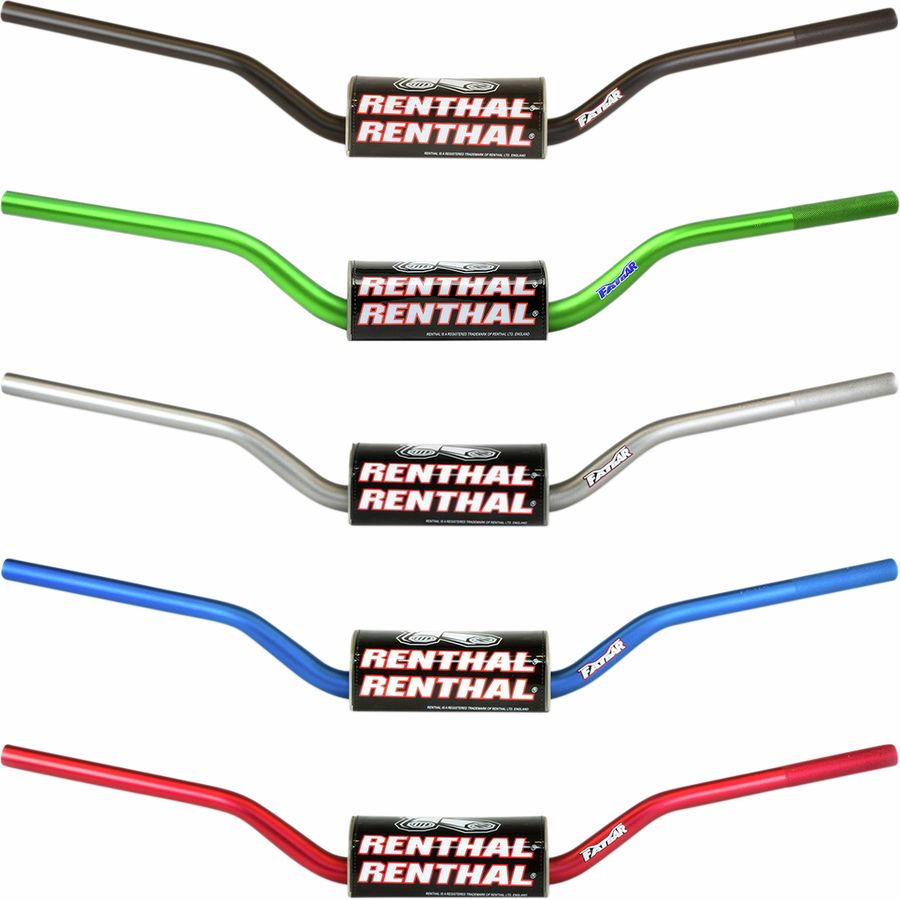

  • Available in a variety of bends and colors to offer a custom fit on the bike.
  • Made in England in Renthal's state-of-the-art manufacturing facility.
  • Notes: Requires oversized 1-1/8" bar mounts (sold separately). Bar pad not included.
4.7 out of 5 stars (53)
4.7 out of 5 stars
5 star   43
4 star   5
3 star   2
2 star   1
1 star   2
See Terms and Conditions
1-10 of 53
Overall 5 out of 5 stars
Verified Purchaser Top 100 Contributor
Location: Fairfax, Vermont
Darren
Great bar

Renthal still has one of the best bars on the market. All my bikes normally run the 7/8 but one odd ball has the fat bar and this is a great replacement to the stock on the KTM SXF350

Overall 5 out of 5 stars
Verified Purchaser
Bc250
Best bars for tall guy

I use to run cr high, these are very similar but taller. Highly recommend them for 6"3 rider cr250

Overall 5 out of 5 stars
Location: Oregon
MisterE
Pulled my bike out of quicksand by the bars...

As the title says, I was riding at the dunes and promptly was stopped (doing about 35mph) in some quicksand. Long story short the bike was pretty well sunk in. Wrapped a strap around the corner of my bars and with the help of two others we towed it out. Bars are prefect still. Still riding on them. That event convinced me beyond a doubt. I'll buy these from now on.

Overall 5 out of 5 stars
Top 500 Contributor Verified Purchaser Top 100 Contributor Top 250 Contributor
JMO140
Best product

Best bars on the market

Overall 5 out of 5 stars
mxfreestyler
Nice Bars

I recently purchased a set of the RC High bend in the Renthal Fat Bars. They feel great, luckily I have not got to test how they match after a crash but I am very pleased with them.

Overall 4 out of 5 stars
Jbiss
Renthal Fatbars

Good all around bars, definitely would recommend. i switched from standard bars to the oversized and i love the oversized. they give the bike a better all around feel.

Overall 5 out of 5 stars
Verified Purchaser
Erik
Good bars!

Absolutely love the fat bars. I bent my twinwall and replaced with the cr high bend and its almost the same bend! There is way less vibration. Haven't dumped the bike yet so I dont know how strong they are. Only bad thing is they came with a bar pad after I bought a new one for it

Overall 5 out of 5 stars
Top 500 Contributor Top 1000 Contributor
Location: Alberta, Canada
Hotshot
Tough bars.

Great look and feel with these bars. Crashed hard and bars did not bend. Would by again.

Overall 5 out of 5 stars
Location: Racine WI
Doodle
LOVE IT!

I ride A Yamaha YFZ 450R and the bend is excellent for ATV MX the have not bent or twisted yet. I recently purchased a second set for my other race quad

Overall 5 out of 5 stars
Location: Spain
anbGG
Renthal fat bar #745

Classic bend great for transition from standing to sitting position

1-10 of 53
Total Questions (54)
Questions with answers:
  54
Questions without answers:
0
salem Location: Al Ain - Abu Dhabi - United Arab Emirates
1-10 of 54
J258 1 month 5 days ago
What is the difference between the Renthal KTM High and Low bars? Also which of the two bars are closer to stock for my 2005 Ktm sx125?
MotoSport Staff Expert
1 month 5 days ago
MotoSportExpert
Using the sizing chart to the right of the Q&A tab you can compare measurements between the different bends.
Tristan 3 months ago
Will any of these bends fit my Polaris 300 hawkeye ATV?
MotoSport Staff Expert
3 months ago
MotoSportExpert
The Polaris Hawkeye comes stock with 7/8" diameter handle bars so you would need a oversized 1-1/8" clamp to run these bars.
Kyle 4 months 20 days ago Location: Wilkesboro, NC, USA
Will any bend fit a 2014 KTM 200xcw?
Expert MotoSport Staff
4 months 17 days ago
MotoSportExpert
Yes. Handlebar bend is all about personal preference and It would be hard for me to recommend a specific bar you would like. I recommend looking at the Size Chart for the Measurement dimensions of each of the handlebar bends. Feel free to give us a call at 888-676-8853 and we would be happy to help you out with your order.
James Over 5 months ago Location: New York, NY, USA
Will stock throttle fit if I change from 7/8 to 1 1/8 handlebars?
MotoSport Staff Expert
Over 5 months ago
MotoSportExpert
Yes. The oversized 1-1/8" handlebars taper down to 7/8" at the control area to fit your standard controls.
salem Over 5 months ago Location: Al Ain - Abu Dhabi - United Arab Emirates
Any of the Bend will fit to my CRF450R 2015?
Expert MotoSport Staff
Over 5 months ago
MotoSportExpert
Yes, with oversized 1 1/8" bar mounts the Fat Bars will fit your 2015 CRF450R. You can find the measurements for each bend in the sizing chart to choose a bend that works best for you.
Yz125 Over 5 months ago
Will these fit my 2000 yz125?
Top 1 Contributor
Over 5 months ago
MotoSportExpert
Yes if you have the oversized adapters for the 1-1/8" bars.
Alex Over 5 months ago
2005 CRF450x?
I already purchased the product but before attempting to install I'd like to know - I have a 2005 CRF450x and I want to know whether or not it will fit.
Top 1 Contributor
Over 5 months ago
MotoSportExpert
The stock bars on a Honda 450R or X model are 7/8" units. You will have to purchase separately the bar adapters to use the Fat bar or 1-1/8" bars.
dezrez Over 6 months ago Location: San Diego, CA, USA
Which high bars will work best for my bike with a 5 gal. desert tank?
I am 6' 2" and would like the bars to taller
Expert MotoSport Staff
Over 6 months ago
MotoSportExpert
Really handlebar bend is all about personal preference. It would be hard for me to recommend a specific bar you would like. I would recommend looking at the Size Chart for the Measurement dimensions of each of the handlebar bends. The 609 - RC High would be the tallest. Feel free to give us a call at 888-676-8853 and we would be happy to help you out with your order.
kxchallenger Over 6 months ago Location: Idaho, USA
What bar fits my 2009 KTM 200xcw closest to stock bend?
Top 1 Contributor
Over 6 months ago
MotoSportExpert
You can find the listing that Renthal has for your bike at this link: http://www.renthal.com/shop/fit-my-bike The result is a KTM Hi bend.
Steveo Over 6 months ago
Would I need any adapters to put these on my 2008 kx250f? I'm new to fat bars, so I'm not sure?
MotoSport Staff Expert
Over 6 months ago
MotoSportExpert
You would need the oversized 1-1/8" bar mounts for the Renthal Fat Bar. Your 2008 Kawasaki KX250F came stock with 7/8" mounts so unless they have been switched out already you would need the oversized mounts.
1-10 of 54
RENTHAL HANDLEBARS 7/8"
ModelWidthHeightRiseClamp Area WidthSweepControl Length
607 - Raptor 660 30.9in (78.5cm) 5.5in (14.0cm) 4.1in (10.5cm) 3.1in (8.0cm) 3.9in (10.0cm) 9.5in (24.1cm)
611 - XR100 / TTR125 30.2in (76.7cm) 6.1in (15.4cm) 4.4in (11.2cm) 4.7in (12.0cm) 2.8in (7.0cm) 7.5in (19.0cm)
615 - TRX250R  30.3in (77cm)  6.3in (16cm) 4.7in (12cm)   4.5in (11.5cm)  3.9in (9.8cm)  8.1in (20.5cm)
636 - Banshee 30.5in (77.5cm) 5.9in (15.0cm) 4.7in (12.0cm) 4.3in (11.0cm) 3.9in (10.0cm) 7.9in (20.0cm)
 666 - Desert/Vintage  33.1in (84cm)  4.6in (11.8cm)  3.3in (8.5cm) 5.5in (14cm)   3.1in (7.8cm)  7.8in (19.7cm)
 677 - Quadracer  30.3in (77cm)  4.7in (12cm)  4.5in (11.5cm)  4.7in (12cm)  3.6in (9.2cm)  7.5in (19cm)
717 - CR80 29.1in (74.0cm) 3.8in (9.6cm) 3.3in (8.5cm) 3.7in (9.5cm) 2.7in (6.8cm) 6.9in (17.5cm)
722 - CR High 31.3in (79.5cm) 3.7in (9.5cm) 2.8in (7.0cm) 4.9in (12.5cm) 2.4in (6.2cm) 7.7in (19.5cm)
757 - Mini High 31.4in (79.7cm) 5.2in (13.2cm) 4.4in (11.2cm) 3.5in (9.0cm) 2.5in (6.3cm) 7.0in (17.7cm)
759 - RM125/250 96-01   31.5in (80cm) 2.8in (7.1cm)   2.0in (5cm)  5.3in (13.5cm)  2.6in (6.5cm)  8.1in (20.7cm)
764 - Jimmy Button 31.8in (80.7cm) 4.3in (11.0cm) 3.3in (8.5cm) 4.7in (12.0cm) 2.6in (6.7cm) 8.0in (20.3cm)
773 - CR Mid  31.3in (79.6cm)  3.5in (8.9cm)  1.9in (4.9cm)  5.1in (13cm)  2.3in (5.8cm)  8.3in (21.1cm)
780 - KX80/85/100 98-12  28.8in (73.2cm)  3.9in (10cm)  3.3in (8.5cm)  3.7in (9.5cm)  2.5in (6.3cm)  6.8in (17.3cm)
781 - ATV Race 31.7in (80.6cm) 5.9in (15.0cm) 3.7in (9.5cm) 4.9in (12.5cm) 3.0in (7.5cm) 9.0in (22.9cm)
783 - Mini Race R (65 cc) 29.1in (74.0cm) 4.5in (11.5cm) 3.3in (8.3cm) 3.7in (9.5cm) 2.1in (5.3cm) 6.8in (17.3cm)
784 - RC Mini / Alessi 29.1in (74.0cm) 4.6in (11.8cm) 3.3in (8.3cm) 3.7in (9.5cm) 1.7in (4.2cm) 6.9in (17.5cm)
787 - 400EX 31.1in (79.0cm) 5.6in (14.2cm) 4.1in (10.5cm) 4.7in (12.0cm) 3.5in (9.0cm) 8.7in (22.0cm)
790 - CR Low/RM125/250 05  31.3in (79.6cm)  3.1in (8cm)  2.2in (5.5cm)  5.3in (13.5cm)  2.2in (5.7cm)  8.0in (20.2cm)
791 - RM85 02-09  28.9in (73.5cm)  3.5in (9cm)  2.8in (7cm)  3.9in (10cm)  2.7in (6.9cm)  7.5in (19.1cm)
794 - YFZ450 ATV 04-05 30.4in (77.3cm) 4.3in (11.0cm) 3.4in (8.7cm) 4.1in (10.5cm) 3.8in (9.7cm) 8.8in (22.4cm)
797 - 50cc Play Bike  29.3in (74.5cm)  7.3in (18.5cm) 6.7in (17cm)   2.4in (6cm)  1.6in (4cm)  6.2in (15.8cm)
798 - KTM 85SX  30.6in (77.6cm)  3.6in (9.2cm)  2.5in (6.4cm)  4.5in (11.5cm)  2.0in (5cm)  7.7in (19.6cm)
799 - CRF150F/230F  30.5in (77.5cm) 4.5in (11.5cm)   3.2in (8.1cm)  5.3in (13.5cm)  1.7in (4.4cm)  6.8in (17.3cm)
810 - YFZ450 ATV 06 30.7in (78.0cm) 4.2in (10.6cm) 2.7in (6.9cm) 4.1in (10.5cm) 3.5in (8.8cm) 8.8in (22.3cm)
811 - Raptor 700 31.1in (79.0cm) 5.6in (14.1cm) 4.4in (11.2cm) 4.7in (12.0cm) 3.5in (9.0cm) 8.3in (21.0cm)
815 - LTR450 31.7in (80.4cm) 3.5in (8.9cm) 3.1in (7.9cm) 3.9in (10.0cm) 3.2in (8.2cm) 9.3in (23.7cm)
816 - CRF150R Adult Bar  30.7in (78cm)  5.4in (13.8cm)  3.9in (10cm)  4.9in (12.5cm)  1.7in (4.2cm)  7.0in (17.8cm)
821 - Short/McGrath  29.3in (74.4cm)  3.1in (8cm)  2.8in (7.2cm)  4.3in (11cm)  1.9in (4.9cm)  7.1in (18cm)
823 - KTM 65SX 12-13  26.3in (66.8cm)  3.3in (8.4cm) 2.6in (6.5cm)   3.5in (9cm)  1.9in (4.8cm)  6.5in (16.5cm)
966 - McGrath 31.6in (80.3cm) 3.6in (9.2cm) 2.2in (5.6cm) 5.3in (13.5cm) 2.2in (5.7cm) 8.0in (20.3cm)
966 - YZ / Henry 31.6in (80.3cm) 3.6in (9.2cm) 2.2in (5.6cm) 5.3in (13.5cm) 2.2in (5.7cm) 8.0in (20.3cm)
971 - Carmichael 31.6in (80.2cm) 3.9in (9.9cm) 2.6in (6.5cm) 5.3in (13.5cm) 2.1in (5.4cm) 7.9in (20.1cm)
983 - Bradshaw 31.7in (80.5cm) 3.7in (9.3cm) 2.0in (5.0cm) 5.5in (14.0cm) 2.2in (5.5cm) 8.1in (20.6cm)
TWINWALL
ModelWidthHeightRiseClamp Area WidthSweepControl Length
918 - CR High 31.3in (79.5cm) 3.7in (9.5cm) 2.8in (7.0cm) 4.5in (11.5cm) 2.4in (6.2cm) 7.6in (19.2cm)
921 - 06 YZF 31.9in (81.1cm) 3.3in (8.5cm) 1.9in (4.7cm) 3.7in (9.5cm) 1.4in (3.6cm) 7.0in (17.9cm)
922 - Carmichael High 31.6in (80.2cm) 4.7in (11.9cm) 3.1in (8.0cm) 4.5in (11.5cm) 2.1in (5.4cm) 7.4in (18.7cm)
994 - Factory KTM 31.8in (80.8cm) 3.7in (9.5cm) 2.8in (7.0cm) 4.3in (11.0cm) 1.5in (3.8cm) 7.7in (19.5cm)
996 - Stewart 31.7in (80.5cm) 3.7in (9.3cm) 2.0in (5.0cm) 4.3in (11.0cm) 2.2in (5.5cm) 7.9in (20.0cm)
997 - Carmichael 31.6in (80.2cm) 3.9in (9.9cm) 2.6in (6.5cm) 4.3in (11.0cm) 2.1in (5.4cm) 7.9in (20.0cm)
998 - Windham 31.6in (80.3cm) 3.6in (9.2cm) 2.2in (5.6cm) 4.3in (11.0cm) 2.2in (5.7cm) 7.5in (19.0cm)
999 - McGrath 31.7in (80.5cm) 3.3in (8.3cm) 1.6in (4.0cm) 4.9in (12.5cm) 2.2in (5.5cm) 7.9in (20.0cm)
FATBAR
ModelWidthHeightRiseClamp Area WidthSweepControl Length
602 - YZ/YZF 07+  31.3in (79.5cm)  3.5in (9cm) 2.6in (6.5cm)   4.9in (12.5cm)  2.4in (6.2cm)  7.6in (19.3cm)
603 - McGrath 31.6in (80.3cm) 3.6in (9.2cm) 2.2in (5.6cm) 3.9in (10.0cm) 2.2in (5.7cm) 7.4in (18.7cm)
604 - Carmichael 31.6in (80.2cm) 3.9in (9.9cm) 2.6in (6.5cm) 4.1in (10.5cm) 2.1in (5.4cm) 7.4in (18.8cm)
605 - CR High 31.3in (79.5cm) 3.7in (9.5cm) 2.8in (7.0cm) 4.5in (11.5cm) 2.4in (6.2cm) 7.9in (20.0cm)
609 - RC High 31.6in (80.2cm) 4.7in (11.9cm) 3.1in (8.0cm) 4.1in (10.5cm) 2.1in (5.4cm) 7.5in (19.0cm)
671 - RC Mini 29.1in (74.0cm) 4.6in (11.8cm) 3.3in (8.3cm) 3.3in (8.5cm) 1.7in (4.2cm) 7.0in (17.7cm)
672 - CR / MX Low 31.3in (79.6cm) 3.1in (8.0cm) 2.2in (5.5cm) 4.9in (12.5cm) 2.2in (5.7cm) 7.5in (19.0cm)
745 - Enduro 30.7in (78.0cm) 3.9in (9.9cm) 2.6in (6.5cm) 4.5in (11.5cm) 2.1in (5.4cm) 7.4in (18.9cm)
821 - Short/McGrath  31.7in (80.5cm)  3.3in (8.3cm)  1.6in (4cm)  5.9in (15cm)  2.2in (5.5cm)  7.9in (20cm)
822 - KTM Low  31.7in (80.6cm)  3.3in (8.4cm)  2.0in (5.2cm)  5.5in (14cm)  1.6in (4.1cm)  7.9in (20cm)
826 - KTM High  31.7in (80.5cm)  3.7in (9.5cm)  2.7in (6.8cm)  5.1in (13cm)  1.7in (4.2cm)  7.1in (18cm)
827 - KTM SX 125-450 13  31.9in (81.1cm)  3.6in (9.2cm)  2.0in (5.2cm)  4.6in (11.7cm)  2.0in (5.2cm)  8.7in (22.2cm)
828 - Street Low  30.1in (76.5cm)  3.1in (8cm)  2.0in (5cm)  4.8in (12.2cm)  2.0in (5.1cm)  7.5in (19cm)
Street 7/8"
ModelWidthHeightRiseClamp Area WidthSweepControl Length
754 - Low  28.7in (73cm)  4.1in (10.5cm)  3.0in (7.5cm)  4.1in (10.5cm)  4.9in (12.5cm)  9.5in (24.2cm)
755 - Medium  28.5in (72.5cm)  4.5in (11.5cm)  3.3in (8.5cm)  4.1in (10.5cm)  4.1in (10.5cm)  8.8in (22.3cm)
756 - High 28.0in (71cm)  4.7in (12cm)  4.1in (10.5cm)  4.1in (10.5cm)  4.1in (10.5cm)  7.9in (20cm)
758 - Ultra Low  28.5in (72.5cm)  3.0in (7.5cm)  2.0in (5cm)  4.3in (11cm)  3.7in (9.5cm)  9.1in (23.2cm)
789 - Street Fighter  29.7in (75.5cm)  3.9in (10cm)  2.4in (6cm)  4.5in (11.5cm) 3.1in (8cm)   7.6in (19.4cm)
