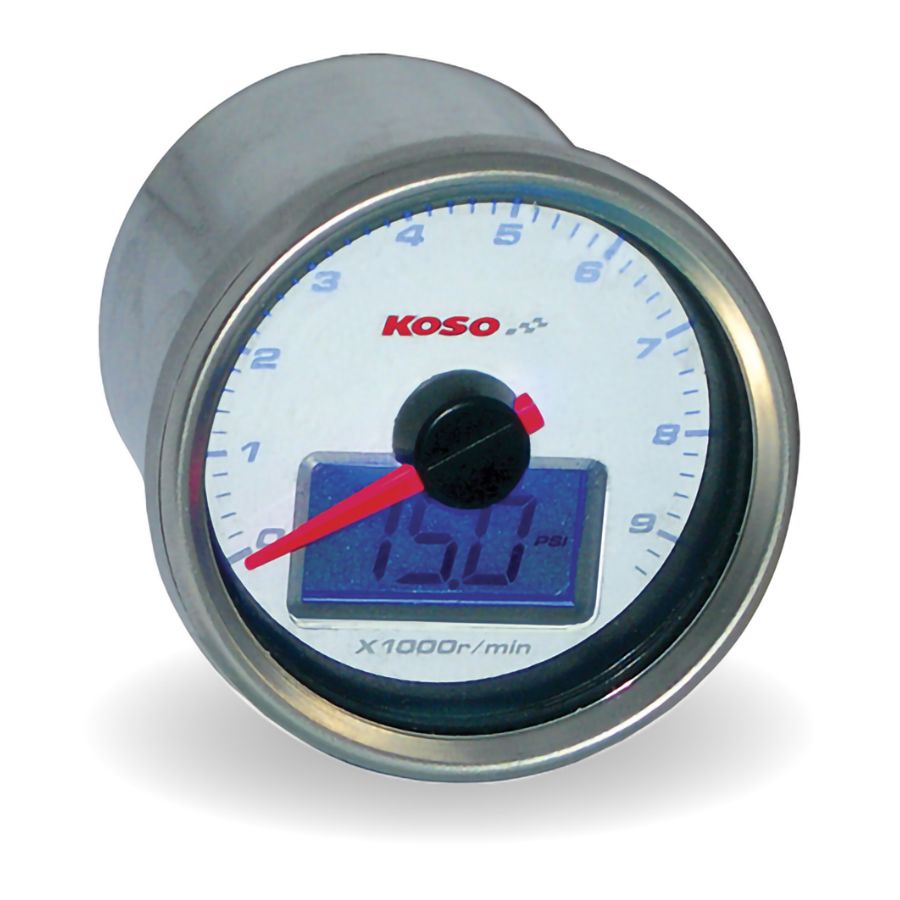

The HD-01R for Harley-Davidson features a tachometer and oil pressure meter that serves as a warning function and could prevent damage from occurring to the motor. This meter features with a stepper motor and LCD screen.
- Kit includes everything needed for installation.
- Notes: Should be used with Harley-Davidson sensor P/N 74438-99A (H-D jumper wire oil pressure sensor P/N 32806-00). Some motorcycles might require adjustable RPM signal filter P/N BO035000 in order to work correctly. Will NOT work with CANBUS system.
Detailed Specifications:
- Tachometer:
- Display range: 0 ~ 9,000 RPM.
- Display range: 100 RPM.
- Stroke / Piston setting:
- 2 stroke: 1, 2, 3, 4 pistons.
- 4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons.
- Oil pressure: Display range: 0 ~ 75 PSI.
- Effective temperature range: 14 ~ 140F (-10 ~ 60C).
- Effective voltage: DC 12V.
- Meter standard: JIS D 0203 S2.

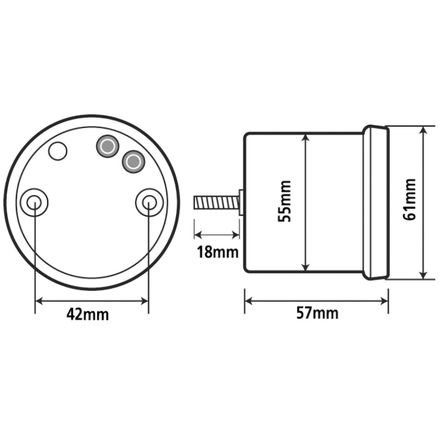

- Meter size: dia. 2-3/16 x 2-1/4" (dia. 55 x 57 mm).
- Meter weight: 6.07 ounces (190 grams).
