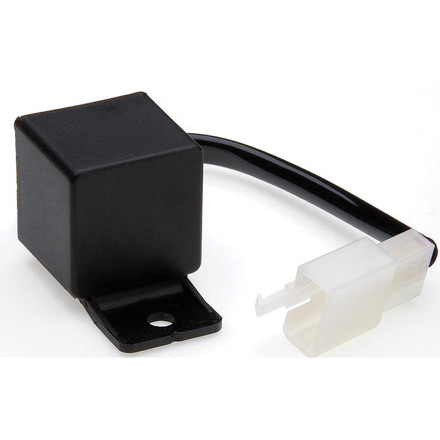

Lockhart Phillips LED Turn Signal Flasher Relay
Lockhart Phillips LED Turn Signal Flasher Relay


Description See Also: 16 Reviews 7 Questions Fitment Part Numbers
Item #LPH000R

Read More
16 Reviews
4.6 out of 5 stars
5 Star   13 4 Star   2 3 Star   0 2 Star   0 1 Star   1
Write a Review

Write your review and you'll automatically be entered in our monthly drawing. Include an image or video to DOUBLE your chances to win!

Write Your Review Write a review to win $500
All Reviews
Verified Purchaser

Verified Purchaser
Modesto, CA, USA
Works great

Once I got it all hooked up it works great. Only problem is it only works on two lights. So if you want to hook up more then two LED turn signals you need to leave at least one pair of stock lights on your bike so they will work right.

Renton, WA, USA
Just lacking instructions

I have an 05 R6 and the relay worked perfectly with the LP LED signals. A quick search online and I found where the relay was located on my bike (under the seat) but it would have been nice if the relay came with instructions or a diagram for this purpose. Also, this relay isn't exactly like the factory one. The way it secures to the bike is different so I couldn't use the factory hold down.

Verified Purchaser
Mesa, AZ
2004 Yamaha R1

The relay works just as intended. I have the LED turn signals in the front as well as an LED (integrated) taillight in the back and with this relay installed I get the correct flash pulse without having to wire resistors to every light on the bike. this relay makes it really easy to fix by just removing the seat, plugging it in, and going for a ride.

Plug And Play

After all the c**p I've bought from many reputable dealers that didn't fit or work, it is a very pleasant change to find an item that fits (2002 Yamaha FZ1) without any unpleasant surprises and works just as was stated.

Installed Proton LED turn signals (with electronic resistance compensation) and they worked good but the stock rear turn signals were a little bit fast and out of sync. Quickly installed the Lockhart Phiillips LED relay and everything works as it should.

Shipped quickly and fast delivery by Motosport.

Houston, TX
Good Price

Just as the other reviews say Great product, easy to install

Clarkston, MI
Good budget LED flasher, but...

You may have to adapt it to your bike. Connector plugged right up, but my OEM flasher was 3-wire (had it's own ground), while the L-P unit's only got power in and flash feed out to the turn signals. This means that, as long as the indicator bulb was installed in the dash, I got 4-ways instead of blinkers with the switch on in either direction. Once I pulled the indicator bulb it worked fine, with a steady, normal flash rate. So as long as you're able to make it work with your OEM wiring, it's a great inexpensive solution.

Pine Grove,Ca
LP led flasher unit

Works great, Easy plug and play. Corrected my fast flash rate

Stockton Ca.
Great product

Works well with Lockhart flush mount turn signals. Slows down the led lights back down to normal, flashes very fast without the relay

gold beach , oregon
Easy peasy

great product easy deal i just unplugged the old relay and plugged in the new one simple as that !

See 4 More Reviews
7 Questions
Answered:   7
Not Yet:   0
Q: Which relay do I need for a 2015 Yamaha MT 09 Tracer
2 years 6 months ago
MotoSport Staff Expert
2 years 6 months ago
A: All products sold on MotoSport.com are for US models only. We unfortunately do not have product fitment for non-us models.
Q: I replaced my stock relay with your relay and all my led blinkers just blink at the same time like hazards. what's going on?
Over 4 years ago
Top 1 Contributor
Over 4 years ago
A: More than likely you have the polarity incorrect on your wiring at the turn signals. Remove one at a time to see if you can isolate the issue.
Lockhart Phillips LED Turn Signal Flasher Relay
Q: What kind of relay do I need
Over 4 years ago
I have a 1999 warrior 350 I am making street legal what kind of relay do I need to make the turn signals and the hazzards work?
MotoSport Staff
Over 4 years ago
A: That would depend on whether you intend to use LED or standard signals. If you can give us a call we can help set you up with a universal turn signal relay for either LED or standard turn signals.
Q: Do you have one that work with suzuki.
Over 9 years ago
The LED Flasher Relay is for YZF. Do you have one for suzuki.
MotoSport Staff
Over 9 years ago
A: Yes. we stock one that is a universal relay. it's called: LOCKHART PHILLIPS LED FLASHER RELAY - UNIVERSAL
Top 1000 Contributor
Q: Does this part get hot enough to melt anything.
Over 9 years ago
I was told that this relay could possibly melt some of the plastic, because it gets real hot.
MotoSport Staff Expert
Over 9 years ago
A: I have not heard anything like that. There shouldn't be a constant current running through this item. The purpose of this item is to reduce the current when the turn signal is in use.
Q: Do you have to buy resistors for turn signals if you change from incondesent to led lights, or can you just replace the flasher relay ?
Over 9 years ago
MotoSport Staff Expert
Over 9 years ago
A: Thats the only thing that needs to be added is the relay.
Q: Do you need one of the regulators per led bulb, or is it one regulator to each set of turn signals
Over 10 years ago
MotoSport Staff Expert
Over 10 years ago
A: You will only need one (1) flasher relay per bike !
See all bikes that this part fits...
See Fitments
# Part Numbers
Product Variant Manufacturer Part #
Lockhart Phillips LED Turn Signal Flasher Relay 122-7515
