Sunstar Chain & Steel Sprocket Combo

Sunstar Chain & Steel Sprocket Combo
Sunstar Chain & Steel Sprocket Combo

$50.39 $66.97
25% Off - Save $16.58

Unfortunately, we no longer carry this item. It may be discontinued or have just sold out.

Please contact Customer Service (1-888-676-8853) or search for another product if you continue to see this message.

Find other: Sprockets

  • Description
  • 32 Reviews
  • 17 Questions
Description Item #SUT0016

The MotoSport.com Sunstar Chain & Steel Sprocket Combo includes ONE Steel Countershaft (Front) Sprocket, ONE Steel Rear Sprocket, and your choice of ONE Premium Drive Chain, each with the following features:

Sprockets / Chainwheels Included:

Sunstar is the largest O.E.M. supplier of sprockets and brake rotors in the world. In fact, your motorcycle probably came from the factory with a Sunstar sprocket. Need a reason to choose Sunstar? Every Sunstar product is imbued with superior quality, uses an exclusive heat-treatment and quenching process, is based on advanced research and design, and is sold at an added value price.

Sunstar Front Sprocket:

  • Manufactured from case-hardened chromoly steel for the ultimate in strength and durability.
  • "Parkerizing" surface treatment for rust and corrosion resistance.

Sunstar Steel Rear Sprocket:

  • Manufactured using only the highest quality 1045 high-carbon steel.
  • Exclusive heat treatment for added strength and wear resistance.
  • Most are zinc plated and have a baked-on durable paint process for corrosion resistance.
  • The strongest, longest lasting steel replacement sprocket available.

Your Choice of Drive Chain:

ChainChain TypeAvg. Tensile StrengthMaximum Rated DisplacementWeight (pounds per 100 links)Master Link Type
D.I.D 420 Standard Chain Non-sealed (standard) 4,200 pounds N/A N/A Clip
D.I.D 420 NZ3 Chain Non-sealed (standard) 4,780 pounds N/A 1.81 Clip
Renthal 420 R1 Chain Non-sealed (standard) 4,271 pounds 150cc 1.76 Clip
Sunstar 420 MXR1 Works MX Racing Chain Non-sealed (standard) 5,000 pounds 150cc 1.76 Clip
D.I.D 428 Standard Chain Non-sealed (standard) 4,480 pounds N/A N/A Clip
D.I.D 428 NZ Chain Non-sealed (standard) 5,740 pounds N/A 2.20 Clip
Renthal 428 R1 Chain Non-sealed (standard) 4,609 pounds 230cc N/A Clip
Sunstar 428 MXR1 Works MX Racing Chain Non-sealed (standard) 5,800 pounds 150cc 2.13 Clip
D.I.D 520 Standard Chain Non-sealed (standard) 6,700 pounds N/A N/A Clip
D.I.D 520 DZ2 Chain Non-sealed (standard) 7,870 pounds 450cc 3.08 Clip
D.I.D 520 ERT2 Chain Non-sealed (standard) 8,100 pounds 450cc 2.99 Clip
D.I.D 520 NZ Heavy Duty Chain Non-sealed (standard) 8,800 pounds 250cc 3.54 Clip
D.I.D 520 ATV X-Ring Chain X-ring 7,600 pounds 750cc 3.65 Clip
D.I.D 520 VX2 X-Ring Chain X-ring 8,210 pounds 750cc 3.35 Clip
D.I.D 520 ERV3 X-Ring Chain X-ring 8,650 pounds 750cc 3.30 Rivet
Renthal 520 R4 ATV Z-Ring Chain Z-ring 8,093 pounds N/A N/A Rivet and Clip
Renthal 520 R1 Race Chain Non-sealed (standard) 7,644 pounds 450cc 2.13 Clip
Sunstar 520 HDN Heavy Duty Non-Sealed Chain Non-sealed (standard) 7,900 pounds 250cc 3.15 Clip
Sunstar 520 SSR O-Ring Sealed Ring Chain O-ring 7,700 pounds 400cc 3.35 Clip
Sunstar 520 XTG TripleGuard Sealed ATV & Offroad Chain TG-ring 8,500 pounds 750cc 3.36 Clip
Sunstar 520 MXR1 Works MX Racing Chain Non-sealed (standard) 9,000 pounds 500cc 2.99 Clip

Notes on Manufacturer Chain Type:

  • Z-ring - Renthal proprietary and patented X-ring design.
  • TG-ring - Sunstar proprietary X-ring design. TripleGuard sealed ring technology where there are 3 sealing lips and lubrication pools on each side of the ring to maintain top performance in high heat, extreme conditions; the TripleGuard ring type is the best for lubrication and protection.

Note for installing X-ring chains: As X-ring chains are wider than standard roller chains, when fitting an X-ring chain to a motorcycle that was fitted with a non O-ring chain as original equipment, it is essential to check that there is proper clearance of the engine cases near the countershaft sprocket and any other places of close contact. Failure to do so could result in damage to the chain and motorcycle and could ultimately cause the chain to fail.

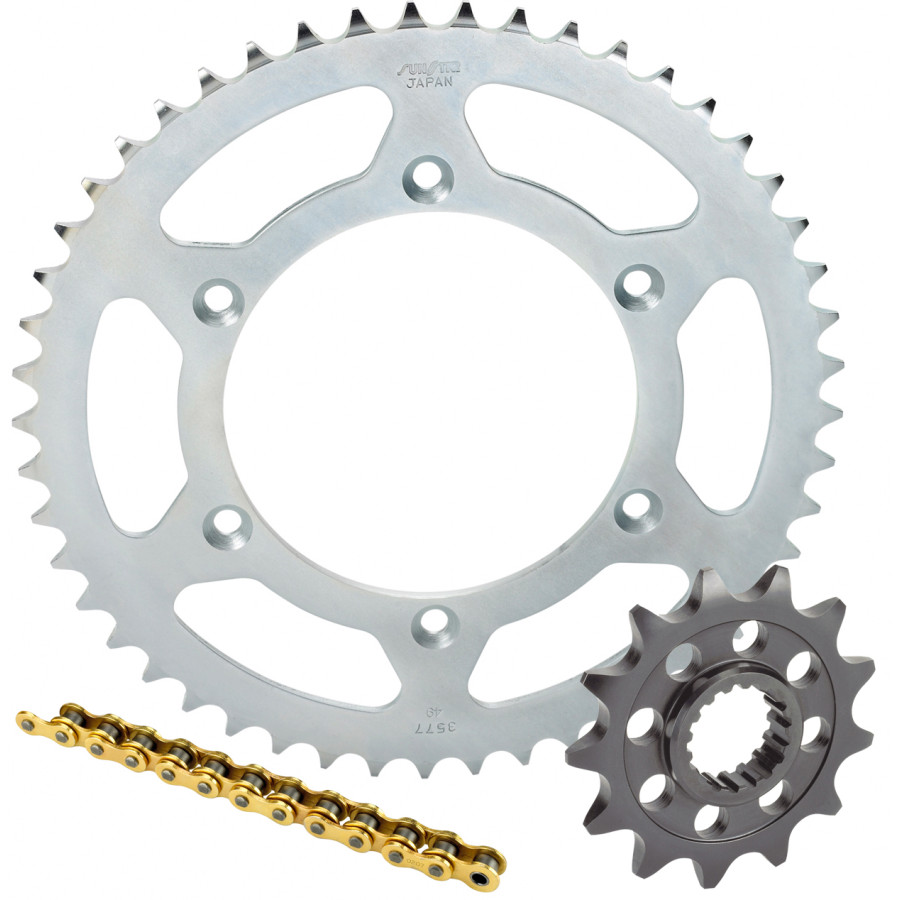

Note: Image is for reference ONLY, actual product will vary based on fitment and selection.

Some Helpful Tools: Try the Motion Pro Chain Breaker & Riveting Tool or BikeMaster's Heavy-Duty Chain Breaker & Rivet Tool to make removing your old chain and installing your new chain as easy and painless as possible.

D.I.D 420 Standard Chain:

The D.I.D Standard Non-O-Ring Chain is designed for low horsepower, smaller displacement mopeds, scooters and vintage motorcycles.

  • For machines originally equipped with non-O-ring chains.
  • Solid rollers.
  • Shot-peened parts.
  • High cylindrical and roundness accuracy.
  • Exacting tolerances provide low friction.
  • Pre-stretched.
  • Special alloy steel with extended riveted bushing "anti-kink" design.
  • Highest quality non-O-ring chain in overall combined performance.
  • Average tensile strength of 4,200 pounds.
  • Wear life index: 100.
  • Includes clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

D.I.D 420 NZ3 Chain:

Pinning your bike out of every turn might tear apart the stock chain, but D.I.D and their 420NZ3 Gold chain will not let you, or your race for first, down.

D.I.D's exclusive SDH (Super DH) pin treatment is the secret behind the superior performance of the NZ Series chains. This high-tech pin treatment forms an extremely hard chromium carbide layer on the pin's surface while maintaining a soft inner core. SDH treated pins have extreme impact strength while maintaining outstanding shock absorption. This treatment creates a chain with anti-oxidation properties and superior wear resistance against invasion of hard foreign materials.

  • For machines originally equipped with non-O-ring chains.
  • Solid rollers.
  • Shot-peened parts.
  • High cylindrical and roundness accuracy.
  • Exacting tolerances provide low friction.
  • DHA pin treatment - hard chromium-carbide layer formed on pin surface for exceptional strength and wear resistance.
  • Pre-stretched.
  • Special alloy steel with extended riveted bushing "anti-kink" design.
  • Highest quality non-O-ring chain in overall combined performance.
  • Up to 19% higher tensile strength; average tensile strength of 4,780 pounds.
  • Wear life index: 410.
  • Weight (per 100 links): 1.81 pounds.
  • Includes a clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

Renthal 420 R1 Chain:

Renthal's R1 Works Chain is a high-strength non O-ring chain with excellent impact load resistance designed specifically to withstand the stress found in off-road applications. This chain is the choice where a combination of high strength, light weight and maximum power transfer are important considerations.

  • Shot-peened alloy steel side plates for high tensile strength and maximum impact load resistance.
  • Chamfered inner links to reduce the chance of chain derailment.
  • Extended bushings to reduce friction between outer and inner link plates, maximizing power output.
  • Chromized bearing pins for excellent resistance to wear.
  • Gold color side plates help prevent corrosion.
  • Most perfectly matched chain for Renthal sprockets allowing maximum power at the rear wheel. This also extends the life of both the chain and sprockets.
  • Average tensile strength of 4,271 pounds.
  • Wear life index: 300.
  • Maximum displacement (2-stroke / 4-stroke / Trials): 85cc / 150cc / 250cc.
  • Weight (per 100 links): 1.76 pounds.
  • Each chain includes master link and a pair of latex gloves for mess free installation.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

Sunstar 420 MXR1 Works MX Racing Chain:

Sunstar's MXR1 Works MX / SX / Off-Road race chain (MXR = Motocross Xtreme Racing) is a premium quality, highly durable non-sealed chain specifically designed for Motocross, Supercross and/or off-road racing. Featuring Sunstar's oversized TripleStar treated ultra hard pins and 100% heat treated components, the MXR1 chain is constructed to handle the demands of the highest levels of racing. This is also one of the lightest MX chains on the market thanks to its superlight design - the 520MXR1 120 link version weighs less than 3.6 pounds, yet is super strong with an 8,970-pound tensile strength rating. Its combination of strength, durability and light weight make it the top choice for serious racers.

  • Deep gold side plates and gold inner plates.
  • Super strong and lightweight design for high performance / racing mini off-road and motocross machines.
  • Utilizes TST (TripleStar Treated) ultra-hard pins and 100% heat treated components for high strength and durability.
  • Seamless rollers and bushings help provide the added life and durability.
  • Average tensile strength of 5,000 pounds.
  • Maximum rated displacement (street / off-road): 150cc / 150cc.
  • Weight (per 100 links): 1.76 pounds.
  • Includes clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

D.I.D 428 Standard Chain:

The D.I.D Standard Non-O-Ring Chain is designed for low horsepower, smaller displacement mopeds, scooters and vintage motorcycles.

  • For machines originally equipped with non-O-ring chains.
  • Solid rollers.
  • Shot-peened parts.
  • High cylindrical and roundness accuracy.
  • Exacting tolerances provide low friction.
  • Pre-stretched.
  • Special alloy steel with extended riveted bushing "anti-kink" design.
  • Highest quality non-O-ring chain in overall combined performance.
  • Average tensile strength of 4,480 pounds.
  • Wear life index: 100.
  • Includes clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

D.I.D 428 NZ Chain:

Pinning your bike out of every turn might tear apart the stock chain, but D.I.D and their 428NZ chain will not let you, or your race for first, down.

  • For machines originally equipped with non-O-ring chains.
  • Solid rollers.
  • Shot-peened parts.
  • High cylindrical and roundness accuracy.
  • Exacting tolerances provide low friction.
  • SDH pin treatment - hard chromium-carbide layer formed on pin surface for exceptional strength and wear resistance.
  • Pre-stretched.
  • Special alloy steel with extended riveted bushing "anti-kink" design.
  • Highest quality non-O-ring chain in overall combined performance.
  • Up to 19% higher tensile strength; average tensile strength of 5,740 pounds.
  • Wear life index: 410.
  • Weight (per 100 links): 2.20 pounds.
  • Includes a clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

D.I.D's exclusive SDH (Super DH) pin treatment is the secret behind the superior performance of the NZ Series chains. This high-tech pin treatment forms an extremely hard chromium carbide layer on the pin's surface while maintaining a soft inner core. SDH treated pins have extreme impact strength while maintaining outstanding shock absorption. This treatment creates a chain with anti-oxidation properties and superior wear resistance against invasion of hard foreign materials.

Return to Chart

Renthal 428 R1 Chain:

Renthal's R1 Works Chain is a high-strength non O-ring chain with excellent impact load resistance designed specifically to withstand the stress found in off-road applications. This chain is the choice where a combination of high strength, light weight and maximum power transfer are important considerations.

  • Shot-peened alloy steel side plates for high tensile strength and maximum impact load resistance.
  • Chamfered inner links to reduce the chance of chain derailment.
  • Extended bushings to reduce friction between outer and inner link plates, maximizing power output.
  • Chromized bearing pins for excellent resistance to wear.
  • Gold color side plates help prevent corrosion.
  • Most perfectly matched chain for Renthal sprockets allowing maximum power at the rear wheel. This also extends the life of both the chain and sprockets.
  • Average tensile strength of 4,609 pounds.
  • Maximum displacement (2-stroke / 4-stroke / Trials): 150cc / 230cc / 400cc.
  • Each chain includes master link and a pair of latex gloves for mess free installation.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

Sunstar 428 MXR1 Works MX Racing Chain:

Sunstar's MXR1 Works MX / SX / Off-Road race chain (MXR = Motocross Xtreme Racing) is a premium quality, highly durable non-sealed chain specifically designed for Motocross, Supercross and/or off-road racing. Featuring Sunstar's oversized TripleStar treated ultra hard pins and 100% heat treated components, the MXR1 chain is constructed to handle the demands of the highest levels of racing. This is also one of the lightest MX chains on the market thanks to its superlight design - the 520MXR1 120 link version weighs less than 3.6 pounds, yet is super strong with an 8,970-pound tensile strength rating. Its combination of strength, durability and light weight make it the top choice for serious racers.

  • Deep gold side plates and gold inner plates.
  • Super strong and lightweight design for high performance / racing mini off-road and motocross machines.
  • Utilizes TST (TripleStar Treated) ultra-hard pins and 100% heat treated components for high strength and durability.
  • Seamless rollers and bushings help provide the added life and durability.
  • Average tensile strength of 5,800 pounds.
  • Maximum rated displacement (street / off-road): 250cc / 150cc.
  • Weight (per 100 links): 2.13 pounds.
  • Includes clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

D.I.D 520 Standard Chain:

D.I.D is the number one motorcycle chain in the world. D.I.D chains are used by factory races teams from all manufacturers in race series everywhere.

  • For machines originally equipped with non-O-ring chains.
  • Solid rollers.
  • Shot-peened parts.
  • High cylindrical and roundness accuracy.
  • Exacting tolerances provide low friction.
  • Pre-stretched.
  • Special alloy steel with extended riveted bushing "anti-kink" design.
  • Highest quality non-O-ring chain in overall combined performance.
  • Average tensile strength of 6,700 pounds.
  • Wear life index: 100.
  • Includes a clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

D.I.D 520 DZ2 Chain:

The All New D.I.D 520DZ2 is the best value in a lightweight, high-performance chain designed for motocross racing.

  • Great value in a lightweight chain.
  • Designed for off-road riding and motocross.
  • The DZ2 has twice the lifespan of the previous DZ.
  • SDH pin treatment - hard chromium-carbide layer formed on pin surface for exceptional strength and wear resistance.
  • Flexible inner soft core absorbs shock.
  • For entry level motocross, trial riding at an affordable price.
  • Average tensile strength of 7,870 pounds.
  • Wear life index: 410.
  • Rated for up to a 450cc motocross bike.
  • Weight (per 100 links): 3.08 pounds.
  • Includes a clip-style master link.
  • Notes: DZ and DZ2 Connecting Links are not interchangeable. Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

D.I.D's exclusive SDH (Super DH) pin treatment is the secret behind the superior performance of the DZ Series chains. This high-tech pin treatment forms an extremely hard chromium carbide layer on the pin's surface while maintaining a soft inner core. SDH treated pins have extreme impact strength while maintaining outstanding shock absorption. This treatment creates a chain with anti-oxidation properties and superior wear resistance against invasion of hard foreign materials.

Return to Chart

D.I.D 520 ERT2 Chain:

The D.I.D ERT2 chain is the most trusted chain in Supercross and motocross racing because of its reputation of meeting the high quality demands that are required when pushing the limits. It was designed with the intention of making a chain that is optimized for the purpose of racing. D.I.D beefed up the ERT2 chain by increasing the pin size by 3% to give the chain an average tensile strength of 8,100 pounds. Increasing the strength of the ERT2 chain did not come with a sacrifice of weight, in fact DID was able to shed 5% from the previous ERT chain.

  • Exclusively designed for motorcycle racing.
  • High-performance, lightweight and low friction chain.
  • 3% bigger pin diameter and 5% lighter than former ERT.
  • Provides the highest wear resistance, tensile strength and impact resistance.
  • Average tensile strength of 8,100 pounds.
  • Wear life index: 430.
  • Rated for up to a 450cc motocross bike.
  • Weight (per 100 links): 2.99 pounds.
  • Includes a clip-style master link.
  • Notes: ERT and ERT2 Connecting Links are not interchangeable. Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

D.I.D 520 NZ Heavy Duty Chain:

Pinning your bike out of every turn might tear apart the stock chain, but D.I.D and their 520NZ chain will not let you, or your race for first, down.

  • For machines originally equipped with non-O-ring chains.
  • Solid rollers.
  • Shot-peened parts.
  • High cylindrical and roundness accuracy.
  • Exacting tolerances provide low friction.
  • DHA pin treatment - hard chromium-carbide layer formed on pin surface for exceptional strength and wear resistance.
  • Pre-stretched.
  • Special alloy steel with extended riveted bushing "anti-kink" design.
  • Highest quality non-O-ring chain in overall combined performance.
  • Up to 19% higher tensile strength; average tensile strength of 8,220 pounds.
  • Wear life index: 410.
  • Rated for up to a 250cc bike.
  • Weight (per 100 links): 3.54 pounds.
  • Includes a clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

D.I.D's exclusive SDH (Super DH) pin treatment is the secret behind the superior performance of the NZ Series chains. This high-tech pin treatment forms an extremely hard chromium carbide layer on the pin's surface while maintaining a soft inner core. SDH treated pins have extreme impact strength while maintaining outstanding shock absorption. This treatment creates a chain with anti-oxidation properties and superior wear resistance against invasion of hard foreign materials.

Return to Chart

D.I.D 520 ATV X-Ring Chain:

The D.I.D X-ring® is superior to other types of O-ring designs; it has half the power loss and 1.5 to 2 times the wear resistance of a normal O-ring chain. D.I.D's patented X-ring construction reduces friction by twisting between the side plates instead of being squashed. Normal O-rings and other makers' modified O-rings have squashed points that increase friction. The twisting action of the X-ring disperses the pressure and minimizes power loss. The X-ring's four contact points greatly increase its sealing performance. This keeps the dirt out and the lubrication in much better than any other O-ring. X-rings have the greatest wear resistance of any other type of O-ring or non-O-ring chain.

  • Uses a special steel alloy designed specifically to provide the extra strength required for quad racing.
  • Features the same low friction, long wearing X-ring technology as D.I.D's VX, ZVM-X, ZLV, and ERV chains.
  • The ATV X-ring chain is engineered to create additional pockets to lock in grease to prolong the life of the chain.
  • Solid rollers.
  • Shot-peened parts.
  • High cylindrical and roundness accuracy.
  • Exacting tolerances provide low friction.
  • Pre-stretched.
  • Extended riveted bushing "Anti-Kink" design.
  • Average tensile strength of 7,600 pounds.
  • Wear life index: 3250.
  • Rated up to a maximum displacement of 750cc.
  • Weight (per 100 links): 3.65 pounds.
  • Includes a clip-style master link.

Return to Chart

D.I.D 520 VX2 X-Ring Chain:

D.I.D's Pro-Street X-Ring® VX Series Chains are high quality X-Ring® chains with superior strength to withstand the horsepower of today's dual sports and trials bikes. The VX Series uses D.I.D's patented low friction X-Ring® for maximum performance.

  • Greater rigidity (7% higher than previous VM chain) creates smother handling, reduced power loss and quicker response.
  • Highest value in all D.I.D series.
  • D.I.D X-Ring has half the friction and 50 - 100% longer wear life compared to typical O-ring chains.
  • Superior longer life than previous VM series.
  • Solid rollers.
  • Shot-peened parts.
  • Pre-stretched.
  • Extended riveted bushing "Anti-Kink" design.
  • Replaces the Professional O-ring V Series and the Premium X-ring VM series chains.
  • Average tensile strength of 8,210 pounds.
  • Wear life index: 3500.
  • Ideal for bikes and ATV's up to 750cc.
  • Weight (per 100 links): 3.35 pounds.
  • Includes clip-style master link.

Half the Power Loss - Compared with Normal O-ring chains, D.I.D's patented X-Ring® construction reduces friction by twisting between the side plates instead of being squashed. Normal O-rings and other makers' modified O-rings have squashed points that increase friction. The twisting action of the X-Ring® disperses the pressure and minimizes power loss.

1.5 to 2 Times Longer Wear Resistance - Compared with Normal O-ring chains, the X-Ring's four contact points greatly increase its sealing performance. This keeps the dirt out and the lubrication in much better than any other O-ring. X-Rings® have the greatest wear resistance of any other type of O-ring or non-O-ring chain.

Return to Chart

D.I.D 520 ERV3 X-Ring Chain:

The D.I.D ERV3 X-ring chain is the ultimate high-performance, lightweight, low-friction race chain available and is used extensively by many off-road race teams. The ERV3 X-ring chain utilizes D.I.D's patented X-ring technology which reduces friction by 50% over standard O-ring chains for minimized power loss. The pins on the ERV3 X-ring chain have been put through a patented heat-treatment process to produce a pin that is 1.5 times harder than conventional pins. The result is a chain that is significantly stronger and offers better wear resistance than many other chains on the market. D.I.D ERV3 X-ring chains feature a gold-plated finish that resists rust and adds a little style to your motorcycle or ATV.

  • Exclusively designed for motorcycle racing.
  • High performance, lightweight and low friction chain provides the winning edge in World Class competition.
  • Features gold color plates.
  • Average tensile strength of 8,650 pounds.
  • Wear life index: 3100.
  • For 250 - 750cc Rally, 750cc Superbike and 250 - 750cc Endurance applications.
  • Weight (per 100 links): 3.30 pounds.
  • Includes a rivet-style master link.

Half the Power Loss - Compared with Normal O-ring chains, D.I.D's patented X-Ring® construction reduces friction by twisting between the side plates instead of being squashed. Normal O-rings and other makers' modified O-rings have squashed points that increase friction. The twisting action of the X-Ring® disperses the pressure and minimizes power loss.

1.5 to 2 Times Longer Wear Resistance - Compared with Normal O-ring chains, the X-Ring's four contact points greatly increase its sealing performance. This keeps the dirt out and the lubrication in much better than any other O-ring. X-Rings® have the greatest wear resistance of any other type of O-ring or non-O-ring chain.

Return to Chart

Renthal 520 R4 ATV Z-Ring Chain:

Renthal's R4 ATV Chain is a premium strength Z-ring chain with excellent impact load resistance, designed specifically to withstand the stress found in ATV applications. The R4 chain features a heavier duty construction process and materials than the standard Renthal R3-2 O-ring chain which increases its service life and tensile strength. The patented "spring effect" Z-rings guarantee constant lubrication for longer life and pins manufactured from special alloy steel also contribute to better resistance from wear. Thicker side plates and a quad riveting manufacturing process round out the upgrades on this ATV-specific chain.

  • Patented Z-ring seals dramatically increase the life of the chain.
  • Larger diameter pins manufactured from specially enhanced steel improve the resistance to shock loads.
  • A quad riveting process on each pin increases the tensile strength of the chain.
  • Thicker inner and outer plates increase the fatigue life of the chain.
  • Available in 520 pitch only.
  • Average tensile strength of 8,093 pounds.
  • Each chain includes a pair of latex gloves for mess free installation.
  • Note: The Renthal R4 chain is supplied with both an easy-fit split master link and a superior solid-pin rivet master link which matches the durability of the chain.

Return to Chart

Renthal 520 R1 Race Chain:

Renthal's R1 Works Chain is a high-strength non O-ring chain with excellent impact load resistance designed specifically to withstand the stress found in off-road applications. This chain is the choice where a combination of high strength, light weight and maximum power transfer are important considerations.

  • Shot-peened alloy steel side plates for high tensile strength and maximum impact load resistance.
  • Chamfered inner links to reduce the chance of chain derailment.
  • Extended bushings to reduce friction between outer and inner link plates, maximizing power output.
  • Chromized bearing pins for excellent resistance to wear.
  • Gold color side plates help prevent corrosion.
  • Most perfectly matched chain for Renthal sprockets allowing maximum power at the rear wheel. This also extends the life of both the chain and sprockets.
  • Average tensile strength of 7,644 pounds.
  • Wear life index: 300.
  • Maximum displacement (2-stroke / 4-stroke / Trials): 250cc / 450cc / 400cc.
  • Weight (per 100 links): 2.13 pounds.
  • Each chain includes master link and a pair of latex gloves for mess free installation.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

Sunstar 520 HDN Heavy Duty Non-Sealed Chain:

For a quality non-sealed O.E.M. replacement level chain, Sunstar offers the 520HDN (HDN = Heavy Duty Non-sealed). This cost effective replacement chain offers great performance and durability at a great price point. This chain is recommended for any motorcycle up to 250cc and is available in pre-cut lengths. It uses a clip-type master link and provides great strength with a 7,850-pound rating.

  • Cost effective, high quality, non-sealed chain.
  • Zero compromise in performance and reliability.
  • Great for any off-road / MX motorcycle up to 250cc.
  • Only available in Natural finish.
  • Average tensile strength of 7,900 pounds.
  • Maximum rated displacement: 250cc.
  • Weight (per 100 links): 3.15 pounds.
  • Includes clip-style master link.
  • Notes: NOT suggested for competition. Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart

Sunstar 520 SSR O-Ring Sealed Ring Chain:

The Sunstar 520SSR O-ring chain (SSR = Standard Sealed Ring) is a heavy duty, long lasting sealed chain that uses only the highest quality rubber O-rings that maintain lubricity, resulting in less friction and the smoothest transfer of power. It is also an extremely strong option for an O-ring chain with a 7,670-pound tensile strength rating and seamless roller and bushing construction. It is constructed with a special heat-treated alloy steel for added strength and life. This great, versatile sealed ring chain is available only in 520 chain pitch for any motorcycle up to 400cc in the natural color option (non-gold) and in pre-cut lengths. It uses clip-type connecting link.

  • High quality, durable and long lasting standard O-ring chain recommended for any motorcycle up to 400cc.
  • Constructed of special, heat-treated alloy steel for the best possible strength and lifespan.
  • O-rings keep the chain well lubricated, resulting in less friction and consistent power transfer.
  • Available only in Natural finish.
  • Average tensile strength of 7,700 pounds.
  • Maximum rated displacement (street / off-road): 400cc / 400cc.
  • Weight (per 100 links): 3.35 pounds.
  • Includes press fit clip-style master link.
  • Note: NOT suggested for competition.

Return to Chart

Sunstar 520 XTG Tripleguard Sealed ATV & Offroad Chain:

An excellent choice for the most extreme off-road conditions encountered in ATV and/or off-road motorcycle racing, Sunstar's premier sealed Works level chain is the 520XTG (XTG = Xtreme Triple Guard). It features Sunstar's TripleGuard sealed ring technology meaning there are three sealing lips and lubrication pools per side of the ring versus a single sided lip that is typical of standard O-rings. This design effectively protects the critical areas of the chain from mud, sand, dirt and the harsh conditions encountered in off-road racing (hence the name Xtreme for extreme conditions) and the chain stays well lubricated for a long duration of use. The XTG is perfect for all ATV's and off-road motorcycles 750cc or less. All components are 100% heat treated and its tensile strength is rated at 8,460 pounds. It's offered in pre-cut lengths and uses a press fit, clip-type connecting link in the gold color option (gold outer plates / natural inners).

  • Top of the line ATV and off-road racing chain.
  • Features exclusive TG (TripleGuard) sealed-ring technology to guard the chain from sand or dirt entering and causing wear.
  • Built specifically for handling the most extreme conditions encountered in ATV and off-road motorcycle racing.
  • TG-ring design prevents the loss of lubricant and is deigned to perform in any extreme heat or other course conditions.
  • Available only in Gold (gold outer plates / natural inners) finish.
  • Average tensile strength of 8,500 pounds.
  • Maximum rated displacement (street / off-road): 400cc / 750cc.
  • Weight (per 100 links): 3.36 pounds.
  • Includes press fit clip-style master link.

Return to Chart

Sunstar 520 MXR1 Works MX Racing Chain:

Sunstar's MXR1 Works MX / SX / Off-Road race chain (MXR = Motocross Xtreme Racing) is a premium quality, highly durable non-sealed chain specifically designed for Motocross, Supercross and/or off-road racing. Featuring Sunstar's oversized TripleStar treated ultra hard pins and 100% heat treated components, the MXR1 chain is constructed to handle the demands of the highest levels of racing. This is also one of the lightest MX chains on the market thanks to its superlight design - the 520MXR1 120 link version weighs less than 3.6 pounds, yet is super strong with an 8,970-pound tensile strength rating. Its combination of strength, durability and light weight make it the top choice for serious racers.

  • Deep gold side plates and gold inner plates.
  • Super strong and lightweight design for high performance / racing mini off-road and motocross machines.
  • Utilizes TST (TripleStar Treated) ultra-hard pins and 100% heat treated components for high strength and durability.
  • Seamless rollers and bushings help provide the added life and durability.
  • Average tensile strength of 9,000 pounds.
  • Maximum rated displacement (street / off-road): N/A / 500cc.
  • Weight (per 100 links): 2.99 pounds.
  • Includes clip-style master link.
  • Note: Non-sealed chains require more regular maintenance than sealed (O-ring, X-ring) versions and are mainly recommended for off-road use.

Return to Chart


Read More
32 Reviews
4.9 out of 5 stars
5 Star   35 4 Star   6 3 Star   0 2 Star   0 1 Star   0
Matt
Verified Purchaser
Homosassa, FL, USA
Durability   Ease of Installation   Performance   Style
Awesome value!

Great product at a great price.

Zachatk1
Top 500 Contributor Verified Purchaser
Jamesville, NY 13078, USA
Durability   Ease of Installation   Performance   Style
Good reliable product

The chain is standard roller chain and sprockets are steel. Not very pretty but very reliable. We run 2 sets of chains - after a ride chain is removed for an oil bath and replaced. These chains do stretch quite a lot so monitor your tension closely.

Paul
Verified Purchaser
Kingsland, GA
Durability   Ease of Installation   Performance   Style
YZ250

Bought chain and sprocket kit for my 2003 yz250. Easy install and so far so good. Have bought several items from motorsports.com and have spoke with their customer service people. So far great overall experience and i'll continue to buy from them.

Donny
Verified Purchaser
Winder
Durability   Ease of Installation   Performance   Style
Excellent choice

Great long lasting choice for any bike.

Pittcrew
Top 500 Contributor Verified Purchaser
Durability   Ease of Installation   Performance   Style
Best chain & sprocket combo.

I use these on all of my son's bikes. He rides hard and they wear very good.

Dadoffive
Richmond mi
Durability   Ease of Installation   Performance   Style
400 ex sprockets

Great teeth choices .... Just about perfect for your everything ...Including wheelies... Winds out good

Hawkeye
Verified Purchaser
Durability   Ease of Installation   Performance   Style
Great package deal

This is a great package deal! Great value! I will be buying more stuff from Motosport.com

Skippy
Verified Purchaser
Durability   Ease of Installation   Performance   Style

Really like the kit combo it was cheaper than buying them individually very easy to install and would recommend this to anyone

Mayel
United States
Durability   Ease of Installation   Performance   Style
Excelente

Excelente

awesomehonda
Chicago, IL, USA
Durability   Ease of Installation   Performance   Style
Awesome!

Very durable, pretty light, only thing is that it doesn't look really nice.

Marv
Verified Purchaser
Northern Michigan
Durability   Ease of Installation   Performance   Style
Kids quad repair part.

Excellent quality part trouble free in installation.

ROCKY
Verified Purchaser
Ease of Installation   Performance   Style
Great

every thing fit as should;also the sales staff was as helpful as one could ask for . will be calling again when parts are needed!

MotoMatt
Nampa, ID, USA
Durability   Ease of Installation   Performance   Style
Sun Star Chain & Sproket Set

I called Moto sports to ask about their Chain & Sprockets combination set. I was originally going to order the aluminum set for more $$$! The customer service person told me, the steel sprocket will last longer. Not only did he answer my question, he saved me money. I like the fact, I can call a company and get new information. Because, lets face it; we all know it all, right? NOT, at least I don't. The prices are spot on, the quality is super. Plus, you have Brett Cue! One day, he will be a Legend! Among the motorcycle Gods of the Whip! I really enjoy the Youtube video's by the way! Keep up the great customer service! Matt

Blind jump at 49! Been 20 years sense I've ridin a dirt bike.
Blaino517
Top 1000 Contributor Verified Purchaser
Louisiana, USA
Durability   Ease of Installation   Performance   Style
Great combo

gave 4 stars on style because it would be nice to have a different color on the back sprocket, other than that its a great combo and the sunstar sprockets have always done well with durability on any bike!

Mike
Verified Purchaser
Durability   Ease of Installation   Performance   Style
Quality chain/sprockets

Great quality, I've used them in the past over the years and not been disappointed. This is the first time for this chain, just installed so will wait on a true durability assessment.

motoblock123
Verified Purchaser
Minnesota
Durability   Ease of Installation   Performance   Style
Sun start

This kit is easy to install and thete is nothing to complain about other than its not the coolest looking sprocket. But just because its not the coolest doesn't mean ot cant make you go fadt

RyneC
Verified Purchaser
Houston, TX, USA
Durability   Ease of Installation   Performance   Style
Sunstar Sprockets w/ Renthal R1 Gold

Great combo of chain and sprockets. The steel lasts a lot longer than the aluminum and the renthal gold chain is the perfect pick to hold up with everything else! And it obviously looks good.

MotoDave
Top 1000 Contributor Verified Purchaser
Durability   Ease of Installation   Performance   Style

It is well made and fits nicely on my bike.

cjzc
Verified Purchaser
Mn
Durability   Ease of Installation   Performance   Style
Sunstar Chain & Steel Sprocket Combo

If you do not care about weight and want reliability, this is the best set up for a 450!! They can last me a full season with a O-Ring chain.

Johnny
Verified Purchaser
Kalkaska, MI
Durability   Ease of Installation   Performance   Style
Steel combo

The chain stretched very little after first ride which was 60 miles of single track. Not typical of lower end chains.

1-20 of 32

Read More
17 Questions
Answered:   17
Not Yet:   0
jclark0731
Q: Best setup for trail riding?
2 months 26 days ago
I have a 2008 YZ250F that has stock size sprockets (13/49). What setup would be best for trail riding? Would just increasing the number of teeth on the rear give me a lot more bottom-end power?
MotoSportExpert
Expert MotoSport Staff
2 months 26 days ago
A: Going up on the rear sprocket and/or down on the front will give you more bottom end. I would try going down one tooth on the front and If you still need more bottom end go up one or two teeth on the back.
Morgan
Q: What chain would you recommend?
3 months 27 days ago
MotoSportExpert
MotoSport Staff Expert
3 months 22 days ago
A: It depends on the type of riding you are doing and what you are looking for. I personally have been running the DID ERT chain for many years.
Maxwell
Location: nc
Q: Will all of these options fit on a polaris trail boss 250?
4 months 25 days ago
im thinking about geting a 11t front and 42t back
MotoSportExpert
Expert MotoSport Staff
4 months 21 days ago
A: Just be sure to correctly select the Year/Make/Model of your ATV before ordering so we can be sure to send you the correct combo for your ATV. Also, feel free to give us a call at 888-676-8853 and we would be happy to help you out with your order.
ryan
Q: Going from stock to an o ring chain do i need anything special?
Over 6 months ago
MotoSportExpert
MotoSport Staff Expert
Over 6 months ago
A: No you should not need to do anything special.
Budpat105
Location: Illino
Q: Hodaka?
Over 10 months ago
Can you get this chain and sprocket set for a 1973 Hodaka combat wombat? Thanks Bud
MotoSportExpert
Expert MotoSport Staff
Over 10 months ago
A: Sorry we do not have sprockets available for your 1973 Hodaka model 95 combat wombat. I would contact Sprocket Specialties. They should be able to make sprockets for your bike.
info@(at)sprocketspecialists.(dot)com
1-800-782-8200
anthonyw13
Q: What chain will last longest?
1 year 1 month ago
MotoSportExpert
MotoSport Staff Expert
1 year 1 month ago
A: Chain life will really depend on multiple factors, maintenance (how clean and oiled you keep your chain), riding conditions, bike, ect. I personally run the DID ERT2 chain and get a lot of life out of it. Its also a very strong chain.
Dominique
Location: Meridian, MS, USA
Q: I have a Honda TRX90, would having larger than stock sprockets increase speed over hard surfaces?
1 year 1 month ago
The sprockets and chain need replaced, the chain keeps derailing at low speeds.
MotoSportExpert
Expert MotoSport Staff
1 year 1 month ago
A: For more top end speed you would want to go down on the back and/or up on the front. For bottom end you would go up on the back sprocket and/or down on the front. Feel free to give us a call at 888-676-8853 and we would be happy to help you out with your order.
kbe50
Q: On the top of page it says pitch of 428 for xr100?
1 year 2 months ago
is that the same as Premium 420 Drive chain and Sprocket kit
MotoSportExpert
MotoSport Staff Expert
1 year 2 months ago
A: The 428 would be the correct size for the XR100, not the 420. 420 and 428 are not the same size. Feel free to give us a call at 888-676-8853 and we would be happy to help you out with your order.
KenziePotz
Location: Nova Scotia
Q: I have a drz125 2009 and I need a front and rear tire and a front and rear sprocket an chain. What do I need??
1 year 4 months ago
MotoSportExpert
Expert MotoSport Staff
1 year 4 months ago
A: Gearing would depend on what kind of riding you are doing and how the current gearing is working for you now. Stock gearing would be 14/51 and you may want to go up or down from there. Tire choice would also depend on the riding you are doing and the terrain (soft,medium,hard) that you are riding on. Feel free to give us a call at 888-676-8853 and we would be happy to help you out with your order.
Brownboy23
Location: Meade County, KY, USA
Q: I got a 2002 Honda xr100. what size chain should I get?
1 year 5 months ago
MotoSportExpert
MotoSport Staff Expert
1 year 5 months ago
A: It would depend on what size sprockets you are running. If you are going larger than the stock 14/50 I would suggest going with the 130L. If you are going with stock or smaller gearing the 120L chain should do it.
1-10 of 17

Read More
